Introduce

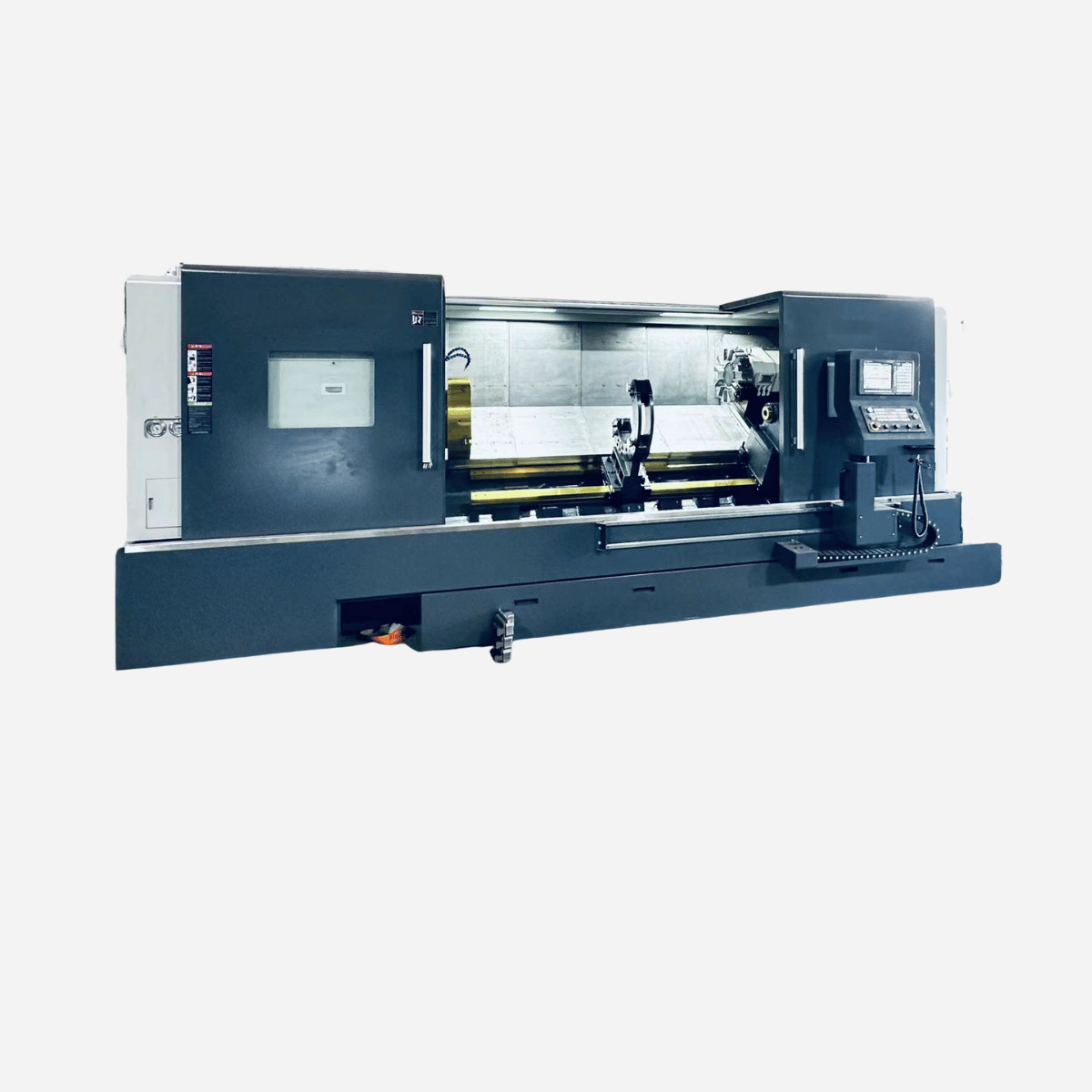

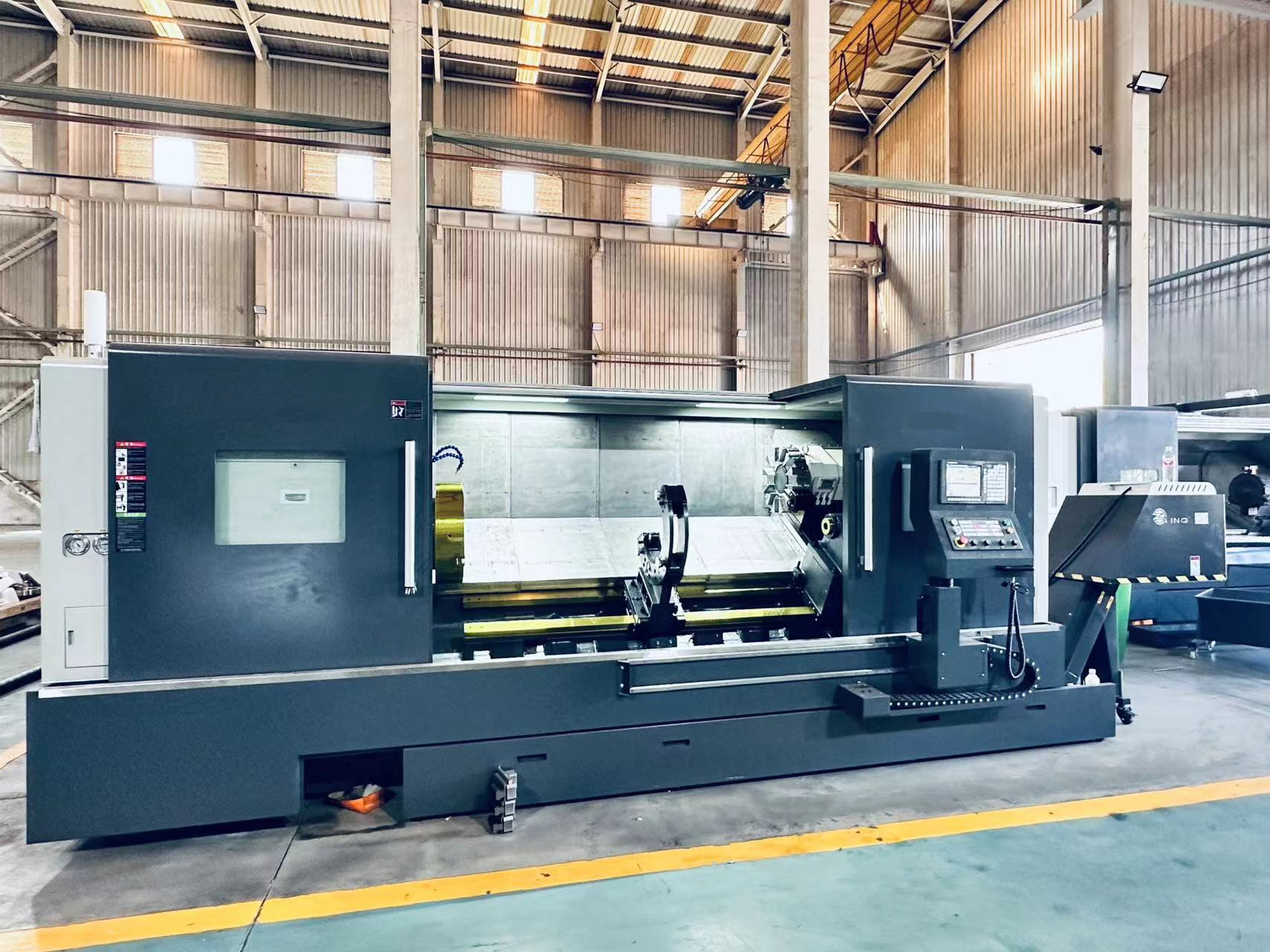

The TLK750 CNC Lathe Machine with Inclined Bed is a heavy-duty CNC turning center designed for large workpieces and continuous industrial machining. With a machining capacity of 730 × 2000 mm (about 30″ × 80″), this model is ideal for long-shaft and heavy cutting applications.

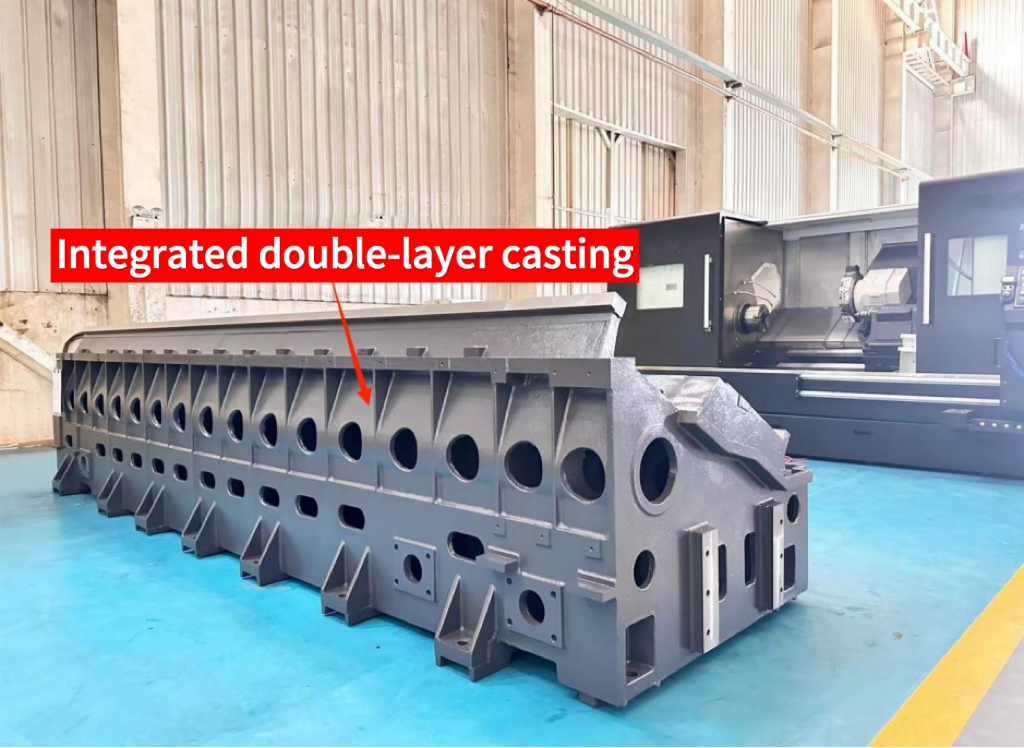

The machine adopts a 30° inclined bed structure made from high-strength HT300 cast iron with integrated molding. Through structural optimization and reduced machine height, the TK750 maintains excellent dynamic stiffness during heavy cutting while ensuring long-term machining accuracy. Equipped with the FANUC Oi-TF Plus CNC control system and a complete FANUC servo drive package, it delivers stable, precise, and reliable CNC turning performance.
Condition
-100% New Condition
-Origin CHINA
Standard Accessory
-FANUC OI TF PLUS CNC Control System
-FANUC complete set of axis Servo Drive
-Rotary cylinder
-10 inch hydraulic chuck
-12 station servo turret
-Hydraulic system
-Cooling device
-Automatic lubrication system
-lighting system
-Electric cabinet air conditioning
-Warning lights
-Tools
-Chip conveyor and trolley
-Voltage/ Frequency 220V; 60Hz, 3 Phase/380v 50hz
Specification
| Technical Parameters | |
| Maximum upward rotation diameter of the bed surface | Φ 730mm |
| Maximum machining diameter | Φ 630mm |
| Maximum machining diameter on skateboard | Φ 450mm |
| Maximum processing length | 2120mm |
| Spindle head form (chuck) | A2-8 (10 “) |
| Spindle motor power | 22KW |
| The maximum spindle speed | 2800rpm |
| Spindle hole diameter | Φ 87mm |
| Bar diameter | Φ 75mm |
| X/Z-axis screw specifications | 4008/5010 |
| X-axis limit stroke | 325mm |
| X-axis motor torque | 30N M |
| Z-axis limit travel | 2200mm |
| Z-axis motor torque | 30N M |
| Processing accuracy | IT6 |
| Repetitive positioning accuracy | 0.003mm |
| Servo turret standard | NC125-V12-440 |
| Knife tower center height dimension | 125mm |
| Tool size | 32 x 32 |
| Boring tool holder dimensions | 50mm |
| Sleeve diameter | 100mm |
| Sleeve stroke | 80mm |
| The maximum stroke of the tailstock | 1800mm |
| Tailstock sleeve tapered hole | Mo’s 5 # (Top Activity) |
| Bed form and inclination | Integrated/30 ° |
| External dimensions (length x width x height) | 5500 × 2200 × 2100mm |
| Weight | About 11.5t |
| Voltage | 3PH, 380V 50HZ |
