Introduce

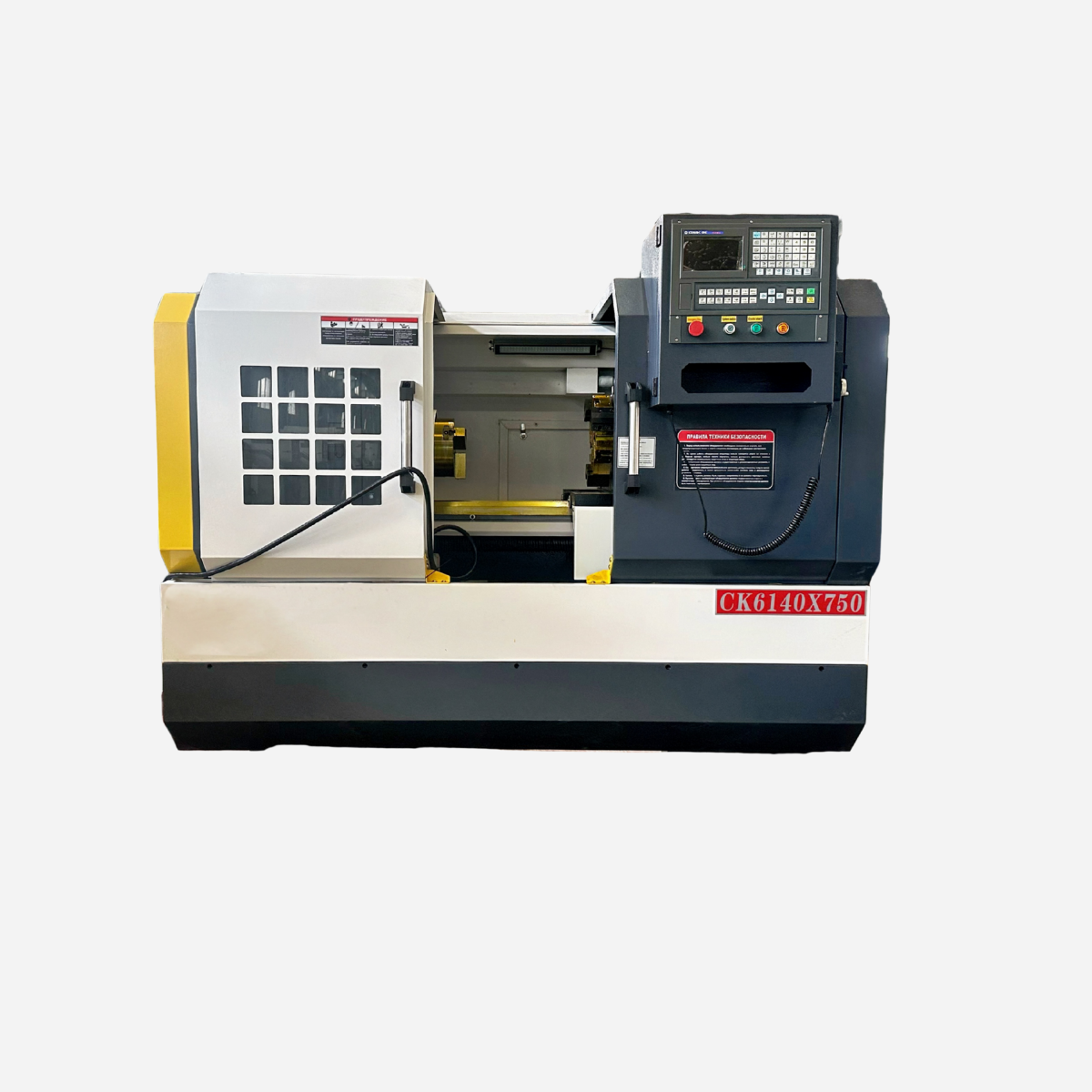

The CK6140 CNC Lathe Machine is a compact flat bed CNC turning machine designed for stable and efficient machining of small to medium-sized workpieces. With a 16-inch swing over bed and 40-inch distance between centers, this model is ideal for workshops requiring reliable CNC turning performance in limited floor space.
This CNC lathe is widely used for batch production of shafts, bushings, fittings, and standard mechanical components, offering consistent accuracy and dependable operation at an economical investment level.
Main Parameter
-Diameter 400mm
-Length 1000mm/1500mm/2000mm/3000mm
-Spindle hole diameter 52mm
-CNC system GSK/FANUC/SIEMENS
– Vertical 4 station tool post, 6 station for optional
Condition
-100% New
-Origin CHINA
Specification
| ITEM | UNIT | CK6140 |
| Max.swing over bed | mm | Φ400 |
| Maximum cutting diameter on the tool holder | mm | Φ205 |
| Maximum processing length | mm | 750/1000/1500/2000 |
| Effective processing length | mm | 600/850/1350/1850 |
| Maximum travel of X/Z axis | mm | 225/750/1000/1500/2000 |
| Minimum displacement unit of X/Z axis | mm | 0.001 |
| Spindle through-hole diameter | mm | Ф52 |
| Taper of spindle inner hole | M6 | |
| Number of spindle stages | Continuously variable /two gears | |
| Maximum spindle speed | rpm | 50-2000/25-1800 |
| Workpiece clamping method | mm | Ф200 manual type |
| Main motor power | kW | 5.5KW |
| Frequency converter | kW | 5.5kw |
| X/Z axis | N.m | 4/6 |
| X/Z-axis fast movement speed | m/min | 5/6 |
| Tool holder | Vertical four station | |
| Tool bar size | mm | 20×20 |
| Repetitive positioning accuracy of knife holder | mm | ≤0.004 |
| CNC Control System | GSK | |
| Machine tool dimensions (length x width x height) | mm | 2350×1450mm×1680mm |
| Electricity demand (power/current) | kW/A | 11kW/20A |
Free Equipped
- Manual three-jaw chuck 250mm
- 5.5KW main motor power
- Spindle through bore diameter 52mm
- 4-station vertical tool post
- Centralized lubrication
- Working light
- Accessories
