Introduce

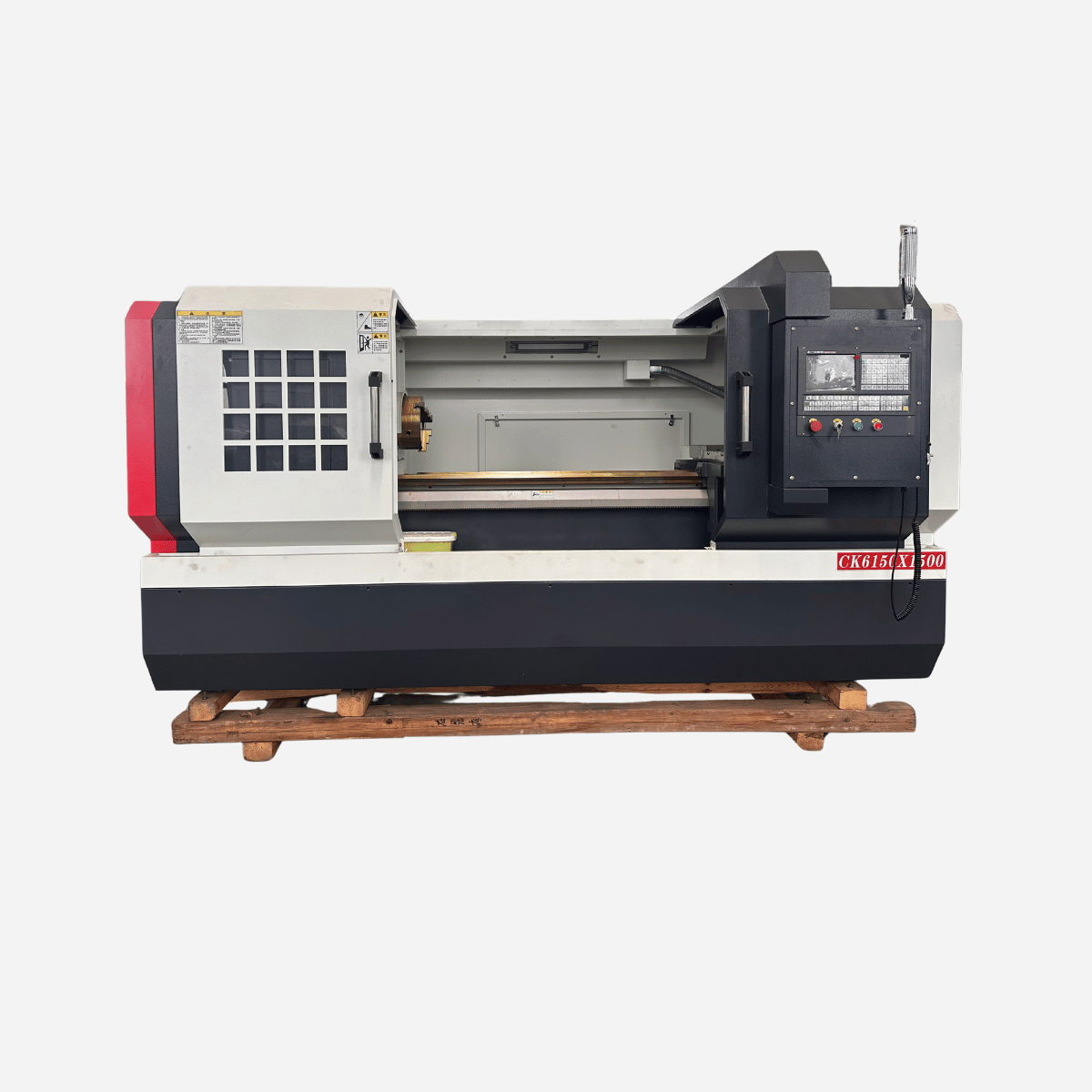

The CK6150 CNC Lathe Machine is a medium-size flat bed CNC turning machine designed for stable machining of larger and longer workpieces. With a 20-inch swing over bed and 60-inch distance between centers, this model offers increased turning capacity while maintaining excellent rigidity and accuracy.
This machine is widely used for machining shafts, sleeves, flanges, and structural components in batch production environments. It is an ideal solution for workshops that require higher capacity than small CNC lathes without moving to heavy-duty machines.
Main Parameter
-Diameter 500mm
-Length 750/mm1000mm/1500mm
-Spindle hole diameter 82mm
-CNC system GSK/FANUC/SIEMENS
– Vertical 4 station tool post, 6 station/8 station for optional
Condition
-100% New
-Origin CHINA
Specification
| ITEM | MODEL | UNIT | CK6150 |
| Processing capability
|
swing over bed | mm | Φ500 |
| Maximum turning diameter of the drag plate | mm | Ф300 | |
| Maximum cutting diameter | mm | Φ500 | |
| Maximum processing length | mm | 750/1000/1500/2000/3000 | |
| Stroke
|
Maximum travel of X/Z axis | mm | 300/（750/1000/1500/2000/3000） |
| X/Z-axis minimum displacement unit | mm | 0.001 | |
| Spindle
|
Main spindle through-hole diameter | mm | Ф82 |
| Number of spindle stages | Unlimited/3rd gear (internal frequency conversion) | ||
| Maximum spindle speed | rpm | 150-2000/60-1600 | |
| Spindle end | A2-8/C8 | ||
| Main motor power (variable frequency) | kW | 7.5 | |
| inverter | kW | 7.5 | |
| X/Z axis | N.m | 5/7.5 | |
| X/Z-axis fast movement speed | m/min | 6/8 | |
| Feed tool holder
|
Tool holder type | 4 standard/6 or 8 optional | |
| Blade size | mm | 25*25 | |
| Repeated positioning accuracy of tool holder | mm | ≤0.004 | |
| Tail socket diameter | mm | Φ65 | |
| Tail seat sleeve stroke | mm | 130 | |
|
|
Tailstock tip cone hole | Mors 5# | |
| Net weight of machine tool | kg | 1800 | |
| External dimensions of machine tools
(length x width x height) |
mm | 2100/2400/2900/3400/4400*1300*1680 | |
| Other | Electricity demand (power/current) | kW/A | 15kW/20A |
