Introduce

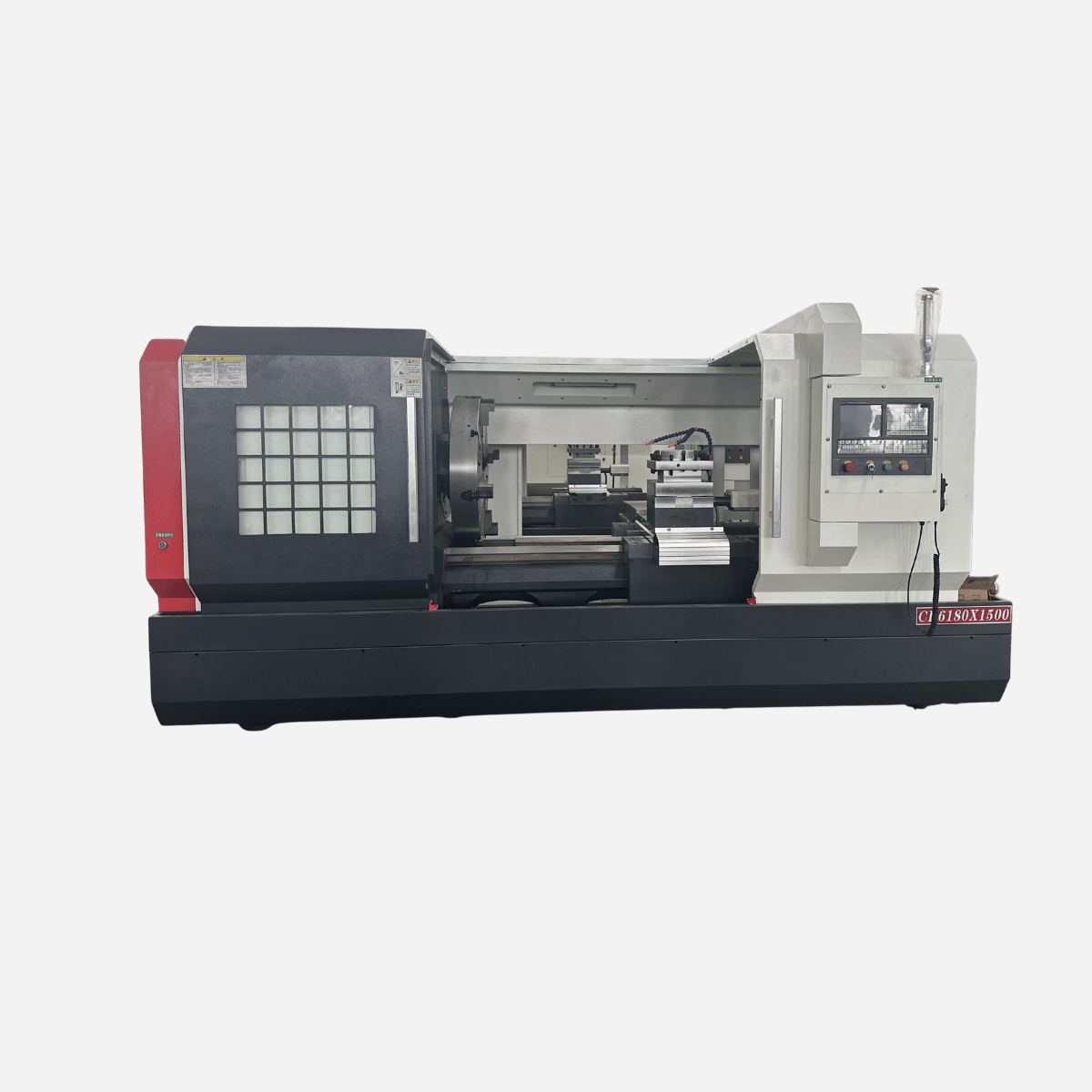

The CK6180 CNC Lathe Machine is a heavy-duty flat bed CNC turning machine designed for machining large-diameter and long workpieces. With a 30-inch swing over bed and 120-inch distance between centers, this model is optimized for long shaft components that require stable support and consistent CNC accuracy.
Its reinforced bed structure and high-torque spindle system allow the CK6180 to perform both rough and finish turning under continuous operation. This machine is widely used in industries such as heavy machinery manufacturing, power transmission, oil & gas equipment, and industrial maintenance.
Main Parameter
-Diameter 800mm
-Length 1000mm/1500mm/2000mm/3000mm/4000mm
-Spindle hole diameter 82mm/105mm
-CNC system GSK/FANUC/SIEMENS
– Vertical 4 station tool post, 6 station/8 station for optional
Condition
-100% New
-Origin CHINA
Specification
| ITEM | UNIT | CK6180 |
| Max.swing over bed | mm | Φ800 |
| Max.swing over slide | mm | Φ450 |
| Maximum processing length | mm | 1000/1500/2000/3000 |
| Effective processing length | mm | 850/1350/1850/2850 |
| Spindle through-hole diameter | mm | Ф105 |
| Spindle nose | — | D11 |
| Number of spindle stages | — | Three gears |
| Spindle speed | rpm | 30-835 |
| Workpiece clamping method | mm | Ф400 3-jaw chuch manual type |
| Main motor power | kW | 11KW |
| Tailstock quill diameter | mm | 100mm |
| Tailstock quill taper | — | MT6, manual type |
| Tailstock quill travel | mm | 250 |
| Tool holder | — | Vertical four station |
| Tool bar size | mm | 32×32 |
| CNC Control System | — | GSK |
| Machine tool dimensions (length x width x height) | mm | 3900x1900x2000 |
