Product Introduction

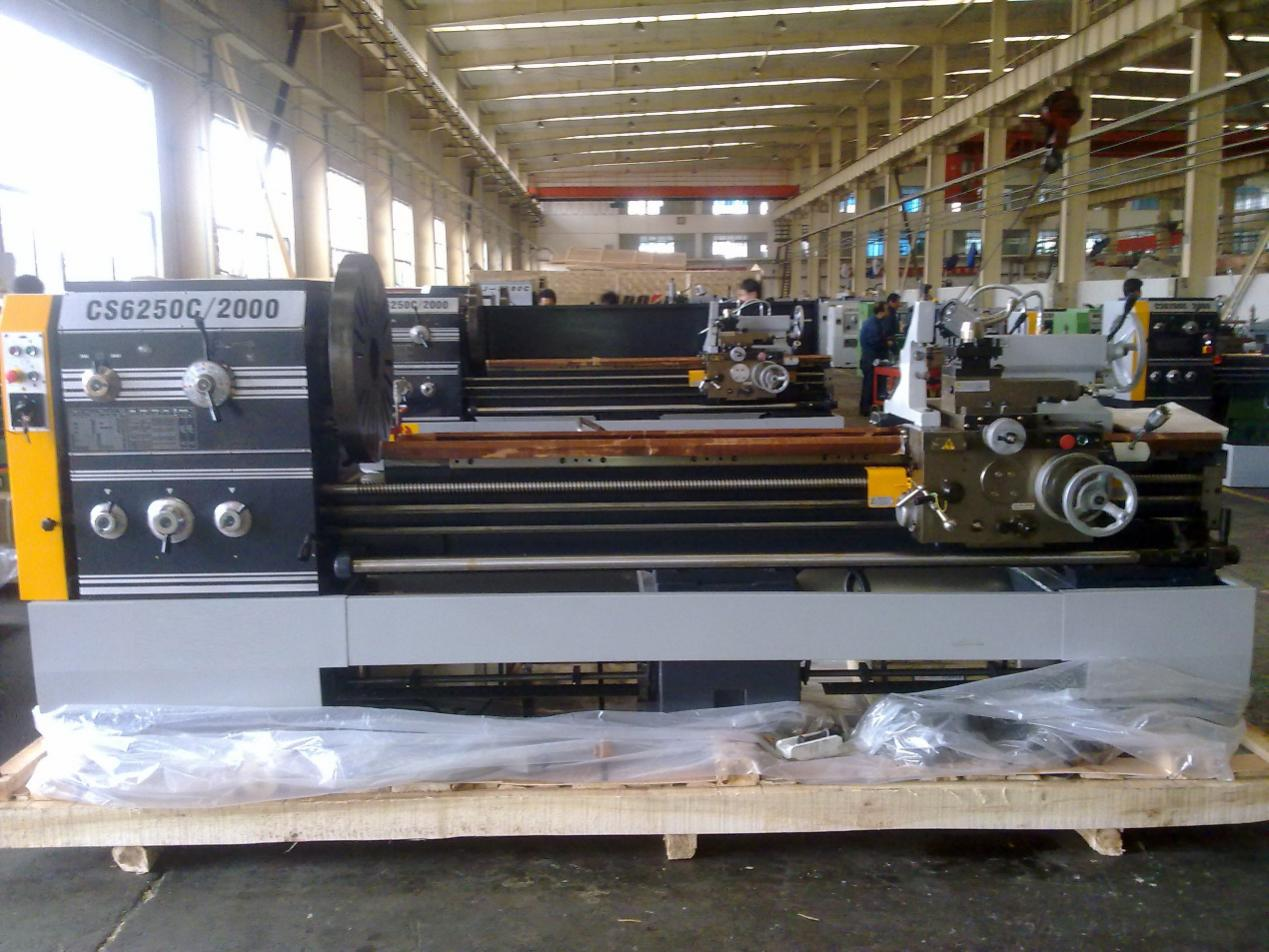

The BOCHI CS6250C Conventional Lathe Machine is a heavy-duty manual engine lathe designed for precision metal turning in industrial environments. This model is widely used for shaft machining, threading, facing, drilling, and general repair work. With a rigid bed structure and reliable mechanical transmission, the CS6250C delivers stable performance, long service life, and consistent machining accuracy.
It is an ideal solution for workshops, maintenance departments, training centers, and manufacturers that require a dependable manual lathe machine for steel, cast iron, and non-ferrous metal processing.
Specification
| Item | Unit | CS6250C | |
| Capacity | Max swing over bed | mm | Φ500 |
| Max swing in gap | mm | Φ710 | |
| Effective length in gap | mm | 240 | |
| Max swing over slide | mm | Φ300 | |
| Max workpiece length | mm | 1000/1500/2000/3000 | |
| Spindle | Spindle thru-hole | mm | Φ105 |
| Spindle nose | ISO 702/Ⅱ No.8 cam-lock type | ||
| Spindle speed | r/min | 12 step 32-1600 | |
| Spindle motor | kW | 7.5 | |
| Tailstock | Quill dia./travel | mm | φ75/150 |
| Taper of center | MT | 5 | |
| Tool post | Number of station/Tool section | 4/25X25 | |
| Feed | Max upper tool post travel | mm | 145 |
| Max lower tool post travel | mm | 320 | |
| X-axis feed | mm/r | 65 sorts 0.063-2.52 | |
| Z-axis feed Z-axis feed | mm/r | 65 sorts 0.027-1.07 | |
| Metric thread | mm | 22 sorts 1-14 | |
| Inch thread | t.p.i | 25 sorts 28-2 | |
| Module thread | πmm | 18 sorts 0.5-7 | |
| DP thread | t.p.i. π | 24 sorts 56-4 | |
| Others | Coolant pump motor | kW | 0.06 |
| Machine length | mm | 2632/3132/3632/4632 | |
| Machine width | mm | 975 | |
| Machine height | mm | 1270 | |
| Machine weight | kg | 2200/2400/2600/2900 | |
Free Equipped
-3-jaw chuck and adapter
-4-jaw chuck and adapter
-Drive plate
-4-station conventional tool post
-Steady rest
-Follow rest
-Foot brake
-Mechanical feed stop
-Full splash guard
-LED work lamp
-Tools
