WC67Y-300T/3200 Hydraulic Press Brake ZCIT
WC67Y-300T/3200 Hydraulic Press Brake ZCIT
Le WC67Y-300T/3200 Hydraulic Press Brake is designed for industrial sheet metal bending and metal fabrication applications. With a 3000 kN nominal force et un 3200 mm bending length, it is suitable for compatible sheet metal components and fabrication projects.
Équipé d'un E21 CNC controller, this model features a 250 mm ram stroke, a maximum open height of 560 mm, a throat depth of 350 mm, and a 22 kW main motor.
Contact ZCIT to confirm the machine configuration and request a quotation based on your material, sheet thickness, and bending requirements.
Spécifications du produit
- Nominal Force：300T
- Bending Length：3200mm
- Throat Depth: 350mm
- Control system: E21
- Distance Between Side Frames: 2600mm
- Main Motor Power: 22kw
WC67Y-300T/3200 CNC Hydraulic Press Brake Overview
Le WC67Y-300T/3200 CNC hydraulic press brake is designed for industrial sheet metal bending and metal fabrication applications. With a 3000 kN nominal force et un 3200 mm bending length, it is intended for suitable bending jobs based on material type, thickness, tooling, and required bend angle.
This model is equipped with an E21 CNC controller, a 250 mm ram stroke, a maximum open height of 560 mm, and a 400 mm throat depth. The specified main motor power is 22 kW. Buyers should confirm the machine configuration and bending capacity for their specific workpieces before ordering.
3000 kN
3200 mm
E21
22 kW
WC67Y-300T/3200 Technical Specifications
| Article de spécification | Unité | WC67Y-300T/3200 |
|---|---|---|
| Modèle de machine | — | WC67Y-300T/3200 |
| Contrôleur CNC | — | E21 |
| Nominal Force | kN | 3000 |
| Bending Length | mm | 3200 |
| Distance Between Side Frames | mm | 2600 |
| Ram Stroke | mm | 250 |
| Maximum Open Height | mm | 560 |
| Throat Depth | mm | 350 |
| Ram Approach Speed (No Load) | mm/s | ≥60 |
| Working Speed | mm/s | 10 |
| Ram Return Speed | mm/s | ≥35 |
| Puissance du moteur principal | kW | 22 |
| Dimensions hors tout (L × l × H) | mm | 3500 × 2000 × 3200 |
Key Features & Bending Capabilities
- 3000 kN Nominal Force: Specified force for suitable industrial sheet metal bending jobs.
- 3200 mm Bending Length: Provides a 3200 mm working length for compatible sheet metal workpieces.
- E21 CNC Controller: The supplied controller model is E21. Confirm included functions and configuration with the supplier.
- 250 mm Ram Stroke: Provides the specified ram travel during bending operations.
- 560 mm Maximum Open Height: Defines the specified maximum opening height for the machine.
- 350 mm Throat Depth: Provides the specified throat depth for positioning suitable workpieces.
- Specified Ram Speeds: Approach speed ≥60 mm/s, working speed 10 mm/s, and return speed ≥35 mm/s.
- 22 kW Main Motor: Main motor power according to the supplied technical data.
Typical Sheet Metal Bending Applications
Fabrication métallique
For suitable sheet metal bending work in fabrication workshops, subject to material and bending requirements.
Industrial Equipment Panels
For bending compatible panels, covers, and sheet metal parts used in industrial equipment.
Metal Enclosures
For enclosure components and formed sheet metal parts when dimensions and material requirements match the machine capacity.
Machine Components
For suitable formed components used in machinery manufacturing and metalworking production.
Standard Accessories Included
| No. | Accessory | Quantity |
|---|---|---|
| 1 | Foot Switch | 1 unit |
| 2 | Anchor Bolts | 1 set |
| 3 | Flat Washers | 1 set |
| 4 | Spring Washers | 1 set |
| 5 | Nuts | 1 set |
| 6 | Support Plates | 1 set |
| 7 | Allen Key Set | 1 set |
Complementary Machines for Sheet Metal Fabrication
A hydraulic press brake can be used alongside other sheet metal fabrication equipment. In a typical workflow, a fiber laser cutting machine cuts sheet metal blanks, the press brake bends the parts, and a welding machine joins components when the design requires welded assemblies.
(1)Fiber Laser Cutting Machine LC1530
A fiber laser cutting machine can cut sheet metal blanks before bending and may complement a hydraulic press brake in fabrication workflows.
(2)Handheld Laser Welding Machine
A handheld fiber laser welding machine can complement cutting and bending equipment when formed components need to be joined.
How to Select a CNC Hydraulic Press Brake
When selecting a CNC hydraulic press brake, buyers should consider material type, maximum sheet thickness, bending length, required bend angle, tooling, and production volume. These details help determine whether the machine’s force and working dimensions suit the intended application.
- Material Type: Confirm whether workpieces are made from mild steel, stainless steel, aluminum, or another material.
- Sheet Thickness: Provide the maximum thickness for bending-capacity evaluation.
- Bending Length: Confirm the longest workpiece to be processed.
- Controller Requirements: Confirm whether the E21 controller functions meet your operating needs.
- Tooling: Discuss the required punch, die, and tooling configuration with the supplier.
Need a WC67Y-300T/3200 CNC Hydraulic Press Brake?
Contact ZCIT to discuss your material, sheet thickness, bending length, controller requirements, and application. Request machine details and a quotation for the WC67Y-300T/3200 hydraulic press brake.
FAQ
1. Contrôle et inspection de la qualité
Q : Comment garantissez-vous la précision des machines avant l'expédition ?
A : Chaque machine est soumise à un étalonnage par interféromètre laser, à un essai de découpe et à un test de fonctionnement continu de 72 heures. Des rapports d'inspection complets et des vidéos de pré-expédition sont fournis avant l'envoi.
2. Conditions de paiement
Q : Quelles sont vos conditions de paiement acceptées ?
A: Nous acceptons les virements télégraphiques (T/T). Les conditions de paiement standard prévoient un acompte de 30% à la confirmation de la commande, le solde de 70% étant dû avant l'expédition.
3. Délai de livraison
Q : Quel est le délai de livraison estimé ?
A: Les modèles standard sont expédiés sous 20 à 30 jours après réception de l'acompte. Les machines personnalisées ou les configurations spéciales nécessitent un délai de 30 à 60 jours selon les spécifications.
Produits associés
Produits similaires

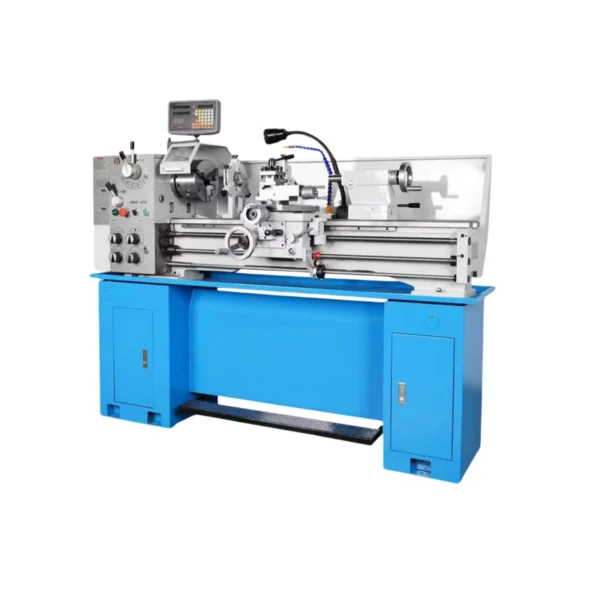

Machines à tours conventionnellesTour d'établi | 360 x 1000 mm (14″ x 40″) Alésage de broche 38 mm PM1440 / CZ1440G/1
