WC67Y-300T/3200 Hydraulic Press Brake ZCIT
WC67Y-300T/3200 Hydraulic Press Brake ZCIT
ال WC67Y-300T/3200 Hydraulic Press Brake is designed for industrial sheet metal bending and metal fabrication applications. With a 3000 kN nominal force و أ 3200 mm bending length, it is suitable for compatible sheet metal components and fabrication projects.
مجهزة بـ E21 CNC controller, this model features a 250 mm ram stroke, a maximum open height of 560 mm, a throat depth of 350 mm, and a 22 kW main motor.
Contact ZCIT to confirm the machine configuration and request a quotation based on your material, sheet thickness, and bending requirements.
مواصفات المنتج
- Nominal Force：300T
- Bending Length：3200mm
- Throat Depth: 350mm
- Control system: E21
- Distance Between Side Frames: 2600mm
- Main Motor Power: 22kw
WC67Y-300T/3200 CNC Hydraulic Press Brake Overview
ال WC67Y-300T/3200 CNC hydraulic press brake is designed for industrial sheet metal bending and metal fabrication applications. With a 3000 kN nominal force و أ 3200 mm bending length, it is intended for suitable bending jobs based on material type, thickness, tooling, and required bend angle.
This model is equipped with an E21 CNC controller, a 250 mm ram stroke, a maximum open height of 560 mm, and a 400 mm throat depth. The specified main motor power is 22 kW. Buyers should confirm the machine configuration and bending capacity for their specific workpieces before ordering.
3000 kN
3200 mm
E21
22 كيلوواط
WC67Y-300T/3200 Technical Specifications
| بند المواصفات | وحدة | WC67Y-300T/3200 |
|---|---|---|
| طراز الآلة | — | WC67Y-300T/3200 |
| CNC Controller | — | E21 |
| Nominal Force | kN | 3000 |
| Bending Length | مم | 3200 |
| Distance Between Side Frames | مم | 2600 |
| Ram Stroke | مم | 250 |
| Maximum Open Height | مم | 560 |
| Throat Depth | مم | 350 |
| Ram Approach Speed (No Load) | mm/s | ≥60 |
| Working Speed | mm/s | 10 |
| Ram Return Speed | mm/s | ≥35 |
| طاقة المحرك الرئيسي | كيلوواط | 22 |
| Overall Dimensions (L × W × H) | مم | 3500 × 2000 × 3200 |
Key Features & Bending Capabilities
- 3000 kN Nominal Force: Specified force for suitable industrial sheet metal bending jobs.
- 3200 mm Bending Length: Provides a 3200 mm working length for compatible sheet metal workpieces.
- E21 CNC Controller: The supplied controller model is E21. Confirm included functions and configuration with the supplier.
- 250 mm Ram Stroke: Provides the specified ram travel during bending operations.
- 560 mm Maximum Open Height: Defines the specified maximum opening height for the machine.
- 350 mm Throat Depth: Provides the specified throat depth for positioning suitable workpieces.
- Specified Ram Speeds: Approach speed ≥60 mm/s, working speed 10 mm/s, and return speed ≥35 mm/s.
- محرك رئيسي بقدرة 22 كيلوواط: Main motor power according to the supplied technical data.
Typical Sheet Metal Bending Applications
تصنيع المعادن
For suitable sheet metal bending work in fabrication workshops, subject to material and bending requirements.
Industrial Equipment Panels
For bending compatible panels, covers, and sheet metal parts used in industrial equipment.
Metal Enclosures
For enclosure components and formed sheet metal parts when dimensions and material requirements match the machine capacity.
Machine Components
For suitable formed components used in machinery manufacturing and metalworking production.
Standard Accessories Included
| No. | Accessory | Quantity |
|---|---|---|
| 1 | Foot Switch | 1 unit |
| 2 | Anchor Bolts | 1 set |
| 3 | Flat Washers | 1 set |
| 4 | Spring Washers | 1 set |
| 5 | Nuts | 1 set |
| 6 | Support Plates | 1 set |
| 7 | Allen Key Set | 1 set |
Complementary Machines for Sheet Metal Fabrication
A hydraulic press brake can be used alongside other sheet metal fabrication equipment. In a typical workflow, a fiber laser cutting machine cuts sheet metal blanks, the press brake bends the parts, and a welding machine joins components when the design requires welded assemblies.
(1)Fiber Laser Cutting Machine LC1530
A fiber laser cutting machine can cut sheet metal blanks before bending and may complement a hydraulic press brake in fabrication workflows.
(2)Handheld Laser Welding Machine
A handheld fiber laser welding machine can complement cutting and bending equipment when formed components need to be joined.
How to Select a CNC Hydraulic Press Brake
When selecting a CNC hydraulic press brake, buyers should consider material type, maximum sheet thickness, bending length, required bend angle, tooling, and production volume. These details help determine whether the machine’s force and working dimensions suit the intended application.
- Material Type: Confirm whether workpieces are made from mild steel, stainless steel, aluminum, or another material.
- Sheet Thickness: Provide the maximum thickness for bending-capacity evaluation.
- Bending Length: Confirm the longest workpiece to be processed.
- Controller Requirements: Confirm whether the E21 controller functions meet your operating needs.
- Tooling: Discuss the required punch, die, and tooling configuration with the supplier.
Need a WC67Y-300T/3200 CNC Hydraulic Press Brake?
Contact ZCIT to discuss your material, sheet thickness, bending length, controller requirements, and application. Request machine details and a quotation for the WC67Y-300T/3200 hydraulic press brake.
التعليمات
1. مراقبة الجودة والتفتيش
س: كيف تضمنون دقة الآلة قبل الشحن؟
ج: تخضع كل آلة لمعايرة مقياس التداخل الليزري، واختبار قطع تجريبي، واختبار تشغيل متواصل لمدة 72 ساعة. ويتم تقديم تقارير فحص كاملة ومقاطع فيديو قبل الشحن.
2. شروط الدفع
س: ما هي شروط الدفع المقبولة لديكم؟
ج: نقبل التحويل المصرفي (T/T). شروط الدفع القياسية هي دفعة مقدمة بقيمة 30% عند تأكيد الطلب، مع دفع الرصيد المتبقي البالغ 70% قبل الشحن.
3. مهلة التسليم
س: ما هو الوقت المقدر للتسليم؟
ج: يتم شحن الطرازات القياسية خلال 20 إلى 30 يومًا من استلام الدفعة المقدمة. أما الآلات المصممة حسب الطلب أو ذات التكوينات الخاصة فتستغرق من 30 إلى 60 يومًا حسب المواصفات.
المنتجات ذات الصلة
منتجات ذات صلة
- ماكينات الخراطة التقليدية

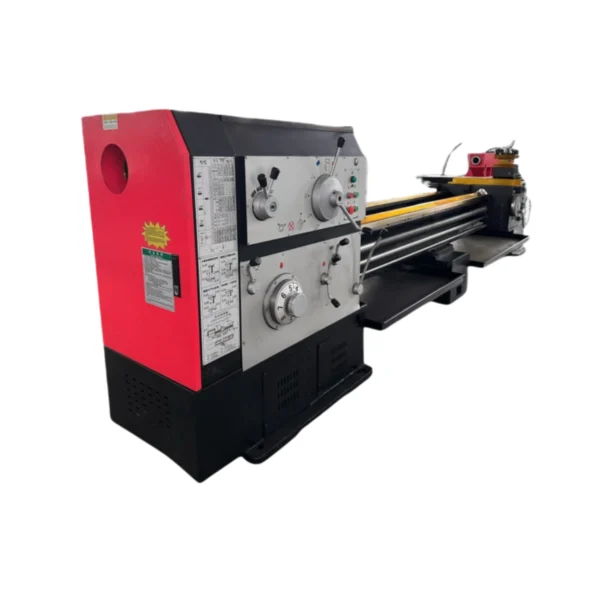

ماكينة خراطة أفقية شديدة التحمل | 25 بوصة × 80 بوصة (630 × 2000 مم) بقطر مغزل 105 مم CW6163
