نظرة عامة على المنتج

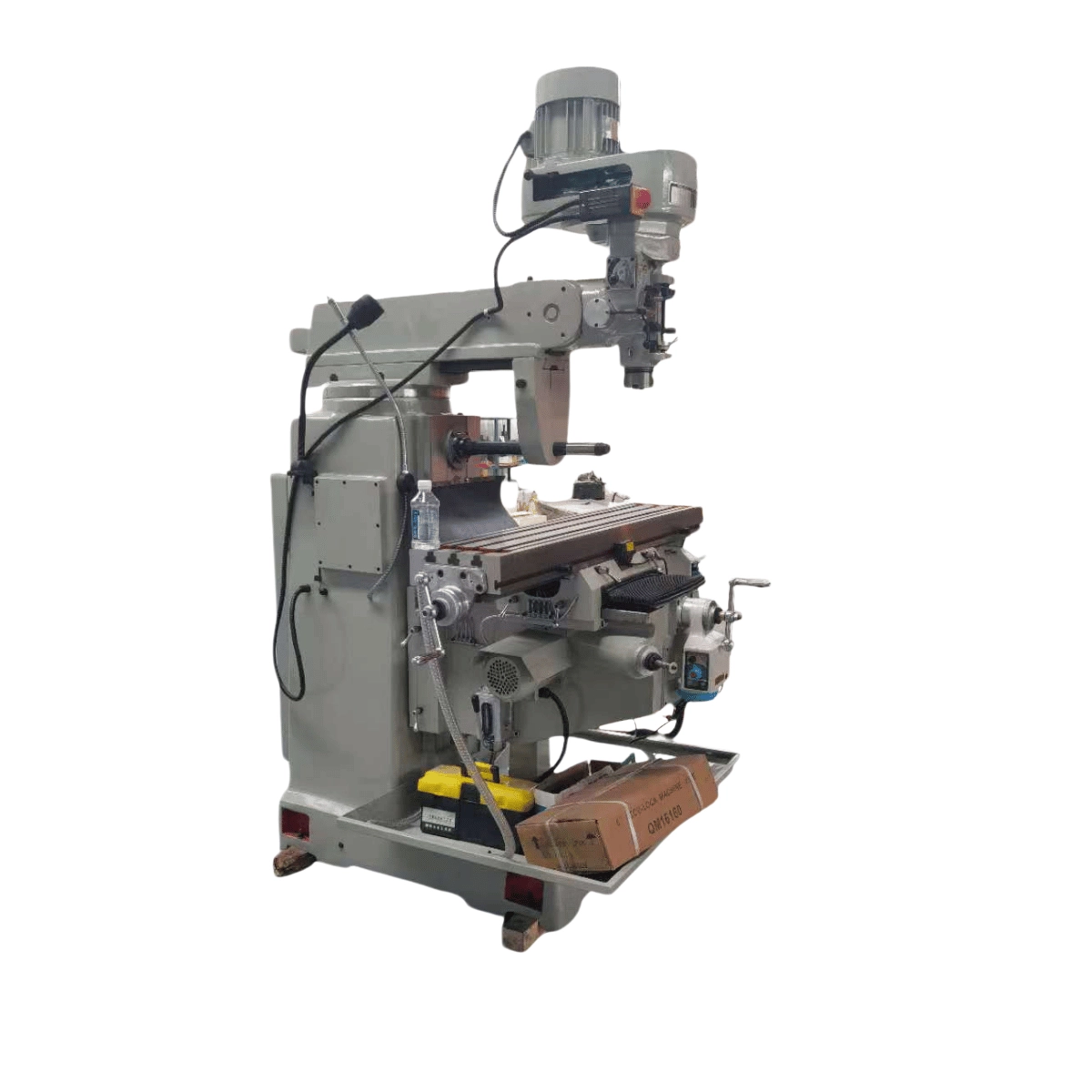

ال No.4HW Professional Turret Milling Machine is a versatile ram-type milling machine designed with both horizontal and vertical milling capability. Featuring a طاولة عمل 1270 × 254 مم, flexible ram positioning, and a rigid machine structure, it provides a practical solution for general metalworking, tooling, maintenance, repair, and small-batch machining applications.

The No.4HW combines the flexibility of a turret milling machine with additional horizontal milling capability, allowing operators to select the appropriate spindle configuration according to the workpiece and machining operation. This configuration is suitable for face milling, slot milling, side milling, drilling, boring, and other conventional milling operations.

The ram-type head can be positioned to provide greater flexibility when setting up different workpieces. Together with the large worktable and powered table movement, this آلة طحن برجية is suitable for workshops requiring a flexible machine for a wide range of conventional machining tasks.

• Horizontal & Vertical Milling Capability: The No.4HW provides both horizontal and vertical milling configurations, allowing operators to select the appropriate spindle arrangement for different machining operations.
• Professional Ram-Type Structure: The ram-type head provides flexible positioning and supports convenient setup for different workpieces and machining requirements.
• 1270 × 254 mm Working Table: The spacious worktable provides sufficient working area for fixtures, tooling, and a wide range of metal components.
• Turret Milling Configuration: The turret-style machine structure provides flexible head positioning and convenient access for conventional milling operations.
• Horizontal Milling Capability: The additional horizontal spindle configuration expands the machine’s capability for side milling, slotting, and other horizontal milling operations.
• Vertical Milling Capability: The vertical spindle configuration is suitable for face milling, drilling, end milling, and general vertical machining operations.
• Flexible Workshop Application: The combination of horizontal and vertical milling makes the machine suitable for maintenance, tooling, repair, and small-batch production environments.

• Ram-Type Turret Structure: The ram and turret arrangement provides flexible head positioning and helps operators adapt the spindle position to different workpieces.
• Dual Milling Configuration: Horizontal and vertical spindle arrangements expand the machine’s machining capability compared with a standard vertical turret mill.
• Rigid Worktable Support: The 1270 × 254 mm worktable provides a stable platform for workholding fixtures and conventional milling operations.
• Flexible Machining Setup: The machine configuration allows operators to select different spindle orientations according to the required machining operation.
• Workshop-Oriented Design: The machine is suitable for general-purpose machining environments where flexibility and multi-operation capability are important.

For additional technical reference on vertical and horizontal milling machine configurations, see the

Haas Mill Operator’s Manual
,
which provides technical information covering milling machine operation and tooling.

For a standard No.4 turret milling machine with a 1270 × 254 mm table and R8 spindle, see the

No. 4 Turret Milling Machine
.

For a larger No.5 turret milling machine with a variable-speed head, see the

ماكينة التفريز البرجية رقم 5
.

For a drilling, tapping, and milling machine with a 50 mm drilling capacity, see the

ماكينة الحفر والطحن ZX6350C
.

• Horizontal Milling Configuration: Provides additional capability for side milling, slotting, and horizontal cutting operations.
• Vertical Milling Configuration: Suitable for face milling, drilling, end milling, and general vertical machining.
• Ram-Type Head: Provides flexible head positioning during workpiece setup and machining.
• Worktable: 1270 × 254 mm worktable for general-purpose machining and workholding.

Final accessory configuration should be confirmed according to the quotation and customer requirements.

The final electrical configuration of the No.4HW should be confirmed according to the customer’s destination country and power supply requirements.

Voltage, frequency, motor configuration, accessories, and machine specifications should be confirmed with ZCIT before order placement.

• الفحص قبل الشحن: Machine operation, major functions, and key specifications are checked before shipment.
• التحقق من عمليات التشغيل الآلي: Trial machining and machine operation can be verified according to the agreed inspection requirements before delivery.
• الدعم الفني: تقدم شركة ZCIT المساعدة التقنية، ودعم قطع الغيار، والخدمة عبر الإنترنت بعد التسليم.

Q: What type of milling machine is the No.4HW?
A: The No.4HW is a ram-type turret milling machine with both horizontal and vertical milling capability.

س: ما هو حجم طاولة العمل؟
ج: يبلغ قياس طاولة العمل 1270 × 254 مم.

Q: What is the advantage of the horizontal and vertical configuration?
A: It allows operators to select horizontal or vertical milling according to the workpiece and machining operation, increasing overall machining flexibility.

Q: What is the main application of this turret milling machine?
A: The No.4HW is suitable for general metalworking, tooling, maintenance, repair, slotting, drilling, face milling, and small-batch machining.

Q: Is the No.4HW suitable for workshops?
A: Yes. Its flexible horizontal and vertical milling configuration makes it suitable for general machining workshops, maintenance facilities, tooling departments, and repair applications.

هل تحتاج إلى ماكينة تفريز احترافية ذات برج؟

Send us your workpiece dimensions, drawings, material, or machining requirements. Our team can help you confirm the suitable horizontal or vertical configuration, tooling requirements, power supply, and machine specification.
