نظرة عامة على المنتج

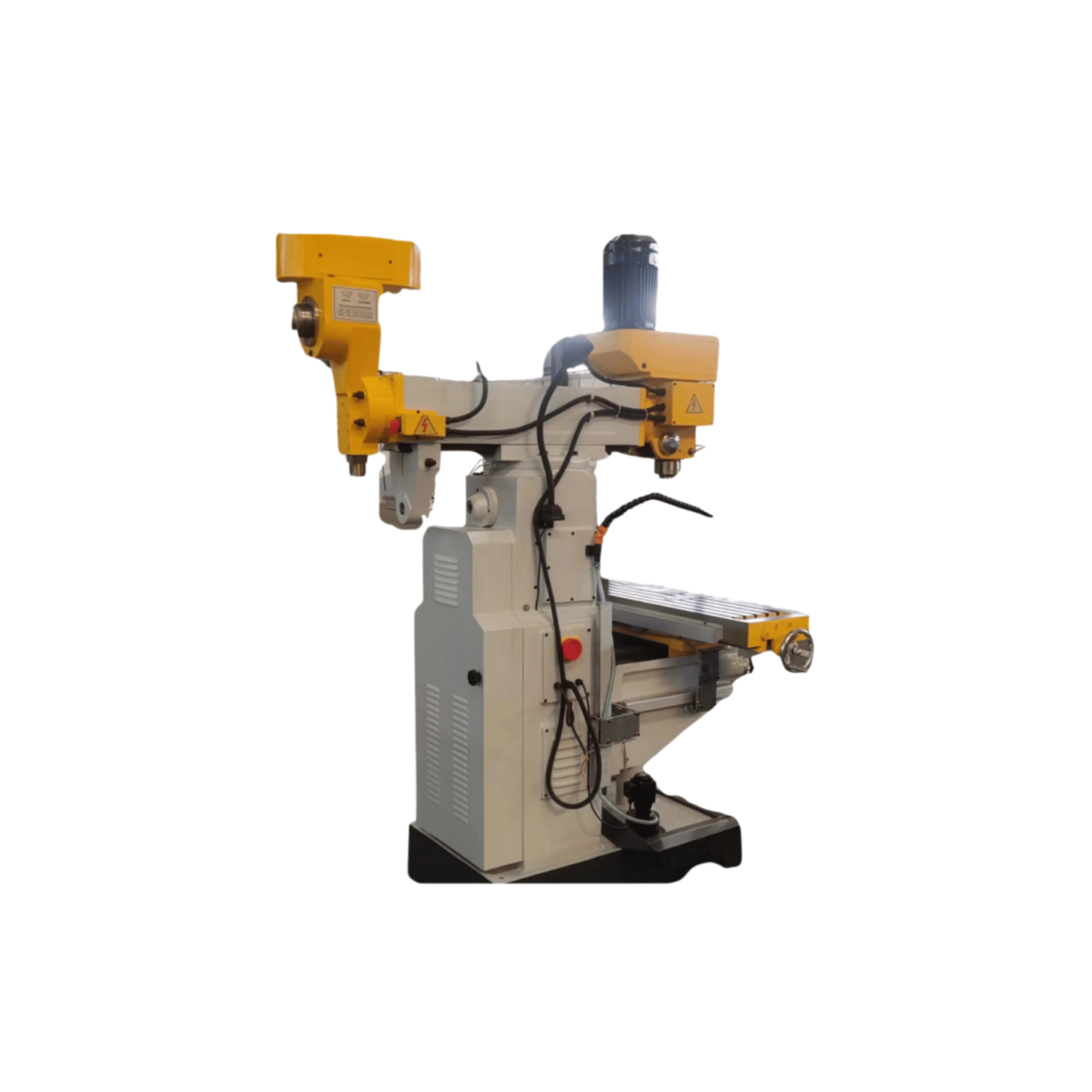

ال ZX6350C Professional Drilling and Milling Machine is a heavy-duty multi-function machine designed to combine drilling, tapping, and milling operations in one platform. With a maximum drilling diameter of 50 mm, ، أ 1200 × 280 mm working table, and wide machining capability, it provides a versatile solution for mechanical workshops, maintenance facilities, tooling applications, and small-batch production.

The machine provides approximately 600 mm longitudinal travel و 280 mm cross travel, with a spindle stroke of 120 mm. Its reinforced structure provides greater machining capacity than compact drilling machines, making it suitable for heavier workloads and demanding metalworking applications.

By integrating drilling, tapping, and milling functions, this drilling and milling machine can reduce the need for separate machines when processing a wide range of metal components. It is suitable for drilling holes, tapping threads, end milling, vertical milling, slotting, and general workshop machining.

• Professional Multi-Function Design: The machine integrates drilling, tapping, and milling functions for flexible workshop machining.
• 50 mm Maximum Drilling Capacity: The spindle system provides a maximum drilling diameter of 50 mm for demanding drilling operations.
• End Milling Capability: The machine supports end milling with a maximum milling width of 120 mm.
• Vertical Milling Capability: The maximum vertical milling diameter is 25 mm for general milling operations.
• M16 Tapping Capacity: The machine supports tapping operations up to M16 according to the listed specification.
• Large 1200 × 280 mm Worktable: The spacious table provides useful working area for fixtures and medium-sized workpieces.
• Wide Table Travel: Approximately 600 mm longitudinal travel and 280 mm cross travel provide flexible workpiece positioning.
• Reinforced Machine Structure: The heavier-duty structure provides greater machining capacity than compact drilling machines and supports more demanding metalworking operations.

• Integrated Drilling and Milling Structure: The machine combines drilling and milling functions in one platform, allowing workshops to perform multiple operations without transferring the workpiece to separate machines.
• Heavy-Duty Construction: The reinforced machine structure is designed for stable machining performance under heavier workloads.
• Vertical and Horizontal Spindle Functions: The listed spindle configuration provides both vertical and horizontal machining capability for different applications.
• 120 mm Spindle Stroke: The spindle provides 120 mm of travel for drilling and machining operations.
• Large Worktable: The 1200 × 280 mm worktable provides sufficient working area for fixtures and medium-sized components.
• Two-Axis Digital Readout: The standard configuration includes a two-axis DRO for convenient monitoring of worktable position.

For additional technical reference on milling machine operation and tooling, see the

Haas Mill Operator’s Manual
.

For a larger universal milling machine with horizontal and vertical spindle configurations, see the

ماكينة التفريز العالمية XM1460
.

For a 1500 × 360 mm milling machine with horizontal and vertical spindle configurations, see the

X6336 Milling Machine
.

For a smaller turret milling machine with an R8 spindle, see the

No. 4 Turret Milling Machine
.

• Mechanical Knife Feeder: Standard mechanical feeding equipment according to the listed machine configuration.
• Two-Axis DRO: Digital readout system for monitoring worktable position.
• Slotting Head: 1.1 kW slotting head with approximately 125 mm travel.

Final accessory configuration should be confirmed according to the quotation and customer requirements.

The listed ZX6350C configuration supports 3-phase 380V, 50Hz و 3-phase 220V, 60Hz power supply options.

Power supply, motor configuration, accessories, and final machine specifications should be confirmed with ZCIT before order placement according to the customer’s destination country and electrical requirements.

• الفحص قبل الشحن: Machine operation, major functions, and key specifications are checked before shipment.
• التحقق من عمليات التشغيل الآلي: Trial machining and machine operation can be verified according to the agreed inspection requirements before delivery.
• الدعم الفني: تقدم شركة ZCIT المساعدة التقنية، ودعم قطع الغيار، والخدمة عبر الإنترنت بعد التسليم.

Q: What is the main advantage of this drilling and milling machine?
A: The ZX6350C combines drilling, tapping, and milling functions in one machine, providing a flexible solution for workshops handling different machining operations.

Q: What is the maximum drilling diameter?
A: The maximum drilling diameter is 50 mm according to the listed specification.

Q: What is the maximum tapping capacity?
A: The machine supports tapping up to M16.

س: ما هو حجم طاولة العمل؟
A: The worktable measures 1200 × 280 mm.

Q: What is the spindle stroke?
A: The spindle stroke is 120 mm.

Q: What power supply is available?
A: The listed configuration supports 3-phase 380V, 50Hz and 3-phase 220V, 60Hz.

Need a Professional Drilling and Milling Machine?

Send us your workpiece dimensions, material, hole diameter, tapping requirements, or milling requirements. Our team can help you confirm the suitable machine configuration, power supply, tooling, and accessories.
