Présentation du produit

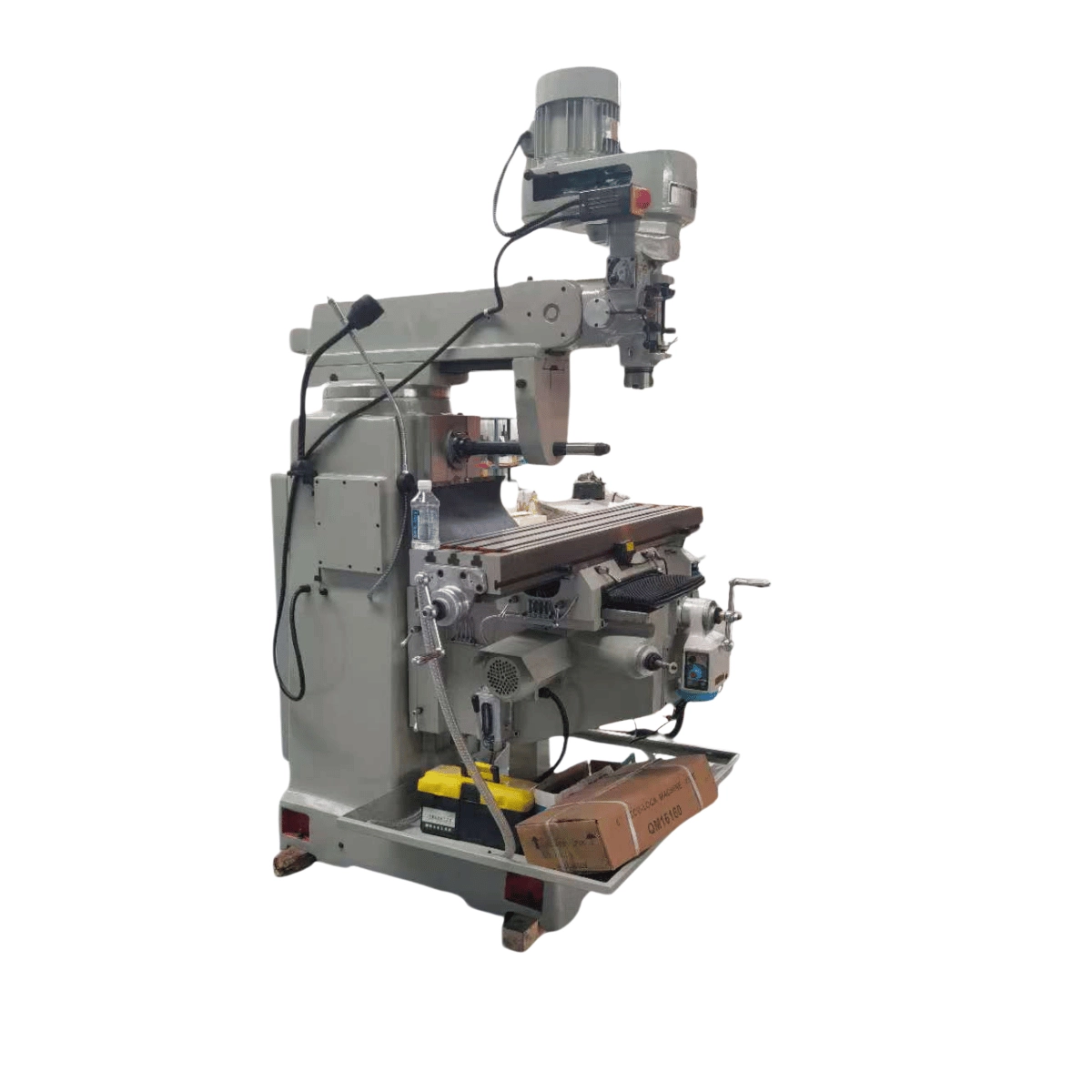

Le No. 5 Universal Turret Milling Machine with Horizontal Milling Head combines vertical turret milling and horizontal milling capabilities in one machine. This configuration gives workshops greater flexibility when machining workpieces that require different cutting directions, tool orientations, or milling operations.

With a 1370 × 305 mm working table, 810 mm X-axis travel, 420 mm Y-axis travel, et 500 mm Z-axis travel, the machine provides a practical working range for general metalworking, tooling, maintenance, component machining, and job-shop applications.

The vertical spindle operates from 80–5440 rpm, while the horizontal spindle provides a speed range of 45–1350 rpm. The combination of two spindle configurations makes this universal turret milling machine suitable for face milling, slotting, side milling, drilling, and other machining operations.

• Vertical and Horizontal Milling Capability: The machine combines a vertical turret milling head with a horizontal milling spindle, allowing different milling operations to be performed on one machine.
• Large 1370 × 305 mm Working Table: The spacious table provides sufficient working area for medium-sized workpieces, fixtures, and multiple machining setups.
• Débattement sur trois axes étendu : The machine provides 810 mm longitudinal travel, 420 mm cross travel, and 500 mm vertical travel for flexible workpiece positioning.
• High-Speed Vertical Spindle: The vertical spindle provides 80–5440 rpm with 16 speed steps, supporting a broad range of cutting and tooling requirements.
• Dedicated Horizontal Spindle: The horizontal spindle provides 45–1350 rpm with 12 speed steps for side milling, slotting, and other horizontal cutting operations.
• Adjustable Milling Head: The milling head can swivel 90° left and right and 45° front and back, providing greater flexibility for angled machining operations.
• ISO 40 Spindle Taper: The machine uses an ISO 40 spindle taper for compatible milling tooling and workholding configurations. The
  ISO 297 standard for 7/24 tapers
  specifies dimensions for spindle noses and tool shanks.

• Combined Vertical and Horizontal Configuration: The machine integrates vertical turret milling and horizontal milling functions, providing greater flexibility for workshops with diverse machining requirements.
• Grande table de travail : The 1370 × 305 mm table provides a practical machining area for workpieces, fixtures, and production setups.
• Adjustable Milling Head: The milling head swivels 90° left and right and 45° front and back, allowing angled machining and improved tool positioning.
• Independent Spindle Drives: Separate vertical and horizontal spindle motors provide dedicated power for different machining configurations.
• Débattement sur trois axes étendu : The 810 mm X-axis, 420 mm Y-axis, and 500 mm Z-axis travel provide a broad working range for general industrial milling.

For a larger heavy-duty vertical milling machine, see the
Fraiseuse verticale X5040,
qui comprend une table de travail de 400 × 1700 mm et un moteur de broche de 11 kW.

For a more compact vertical milling solution, see the
Fraiseuse verticale X5032.

• Clamping Kit: Standard workholding clamping accessories.
• X/Y-Axis Automatic Feed: Automatic table feed system for longitudinal and cross-axis movement.
• 3-Axis DRO: Digital readout system for X, Y, and Z-axis position monitoring.
• Standard Machine Tooling: Basic tooling and machine setup accessories according to the confirmed configuration.

La configuration des accessoires peut varier en fonction du devis final et des exigences du client.

• Inspection avant expédition : Les performances, les fonctions et les spécifications clés de la machine sont vérifiées avant l'expédition.
• Vérification d'usinage : Le fonctionnement et les performances d'usinage de la machine peuvent être vérifiés avant la livraison, conformément aux exigences d'inspection convenues.
• Assistance technique : ZCIT propose une assistance technique, un service de pièces détachées et un service en ligne à ses clients après la livraison.

Q: What is the main advantage of this universal turret milling machine?
A: The machine combines vertical turret milling and horizontal milling capabilities, allowing one machine to perform a wider range of machining operations.

Q : Quelles sont les dimensions de la table de travail ?
A: The working table measures 1370 × 305 mm.

Q: What spindle taper does the machine use?
A: The machine uses an ISO 40 spindle taper.

Q: What are the spindle speed ranges?
A: The vertical spindle operates from 80–5440 rpm with 16 speed steps, while the horizontal spindle operates from 45–1350 rpm with 12 speed steps.

Q: Can the milling head be angled?
A: Yes. The milling head can swivel 90° left and right and 45° front and back.

Q: Is the machine suitable for production workshops?
A: Yes. Its combined vertical and horizontal milling configuration makes it suitable for production machining, tooling, maintenance, and job-shop applications.
