Présentation du produit

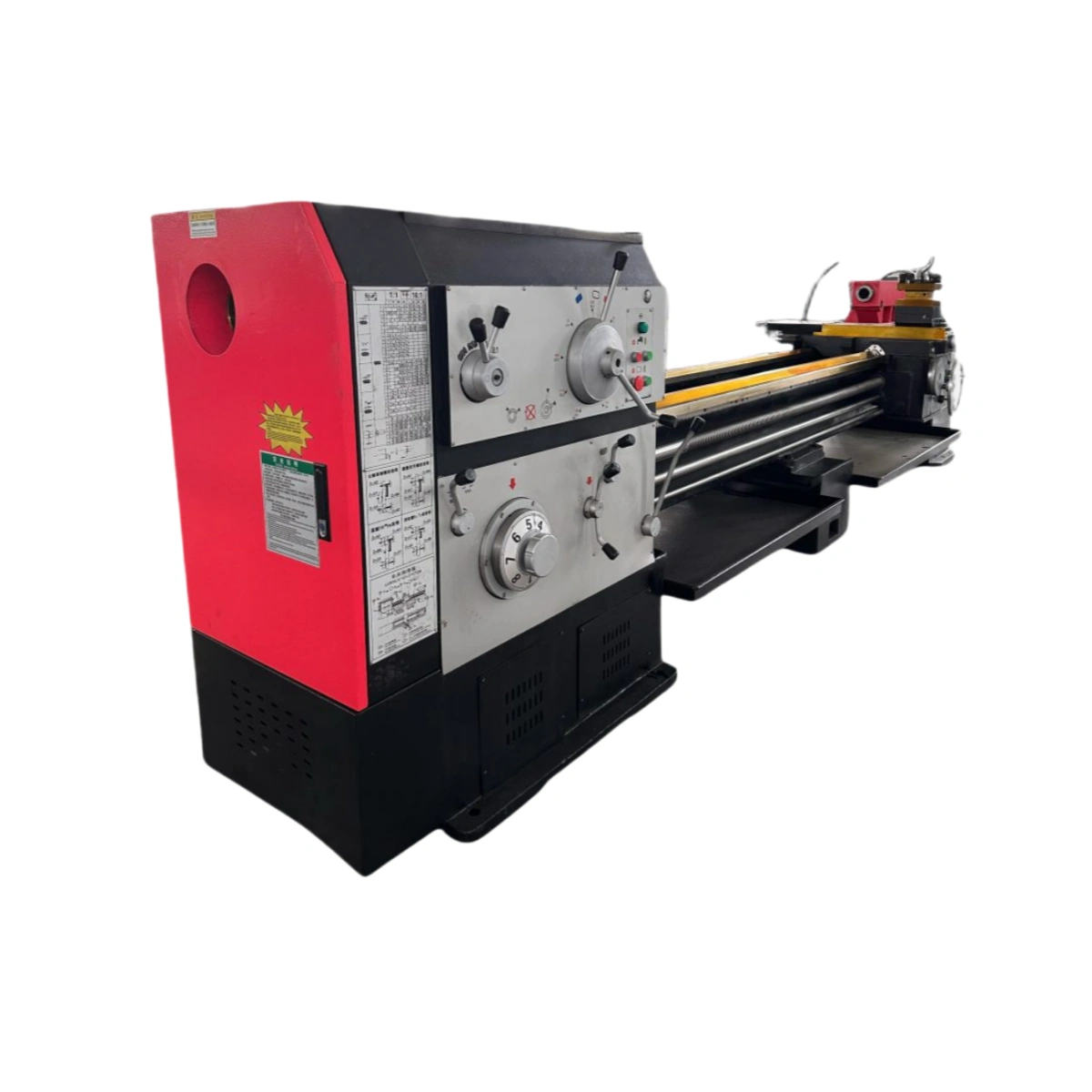

Le CW61125 Powerful Heavy-Duty Horizontal Lathe Machine is designed for large-diameter and extra-long metal workpieces. With a 1250 mm swing over bed, 8000 mm maximum machining length, et Alésage de broche de 105 mm, this horizontal lathe machine provides the capacity required for demanding heavy-duty turning applications.

The CW61125 features a rigid horizontal lathe structure designed to provide stable support for large and heavy workpieces. Its extended bed accommodates long components, while the large spindle bore allows suitable shafts, bars, pipes, and tubular workpieces to pass through the spindle.

Ce horizontal lathe machine is suitable for turning large shafts, cylinders, rollers, flanges, sleeves, pipes, bushings, and other oversized metal components used in industrial manufacturing, maintenance, repair, and general mechanical engineering.

• 1250 mm Swing Over Bed: The large swing capacity provides sufficient clearance for large-diameter workpieces and oversized industrial components.
• 8000 mm Machining Length: The extended bed configuration is designed for long shafts, rollers, cylinders, pipes, and other elongated workpieces.
• Alésage de broche de 105 mm : The large spindle bore allows suitable long bars, shafts, and tubular workpieces to pass through the spindle for greater machining flexibility.
• Heavy-Duty Horizontal Structure: The rigid machine structure provides stable support during demanding turning operations and helps maintain cutting stability.
• Grande capacité de travail : The combination of large swing diameter and extended bed length makes the machine suitable for oversized industrial components.
• Conventional Manual Operation: The machine provides direct operator control and is suitable for maintenance, repair, job-shop machining, and production applications.
• Versatile Turning Operations: The machine can perform external turning, internal turning, facing, threading, boring, grooving, and other conventional lathe operations with suitable tooling.

• Rigid Heavy-Duty Bed: The long and rigid bed provides stable support for large workpieces and helps maintain machining stability throughout the turning process.
• Large Swing Capacity: The 1250 mm swing over bed provides substantial clearance for large-diameter components.
• Extended Bed Length: The 8000 mm machining length makes the machine suitable for long shafts, rollers, cylinders, pipes, and other elongated components.
• Large Spindle Bore: The 105 mm spindle bore provides greater flexibility when machining long bars, shafts, and tubular workpieces.
• Conventional Turning System: Manual machine operation provides direct operator control for repair work, maintenance, job-shop machining, and small-batch production.
• Industrial Heavy Turning: The machine configuration is designed for demanding turning applications where workpiece size, rigidity, and cutting stability are important.

For general technical information about machine guarding and safe operation, see the

Guide de l'OSHA sur la protection des machines
.

For more conventional horizontal turning solutions, explore our

Lathe Machine Product Range
.

For automated programmed turning applications, see our

Tours à plat CNC
.

For a large conventional lathe with different capacity requirements, contact ZCIT for a suitable

horizontal lathe machine configuration
.

• Heavy-Duty Machine Bed: Designed to support large and long workpieces during turning operations.
• Alésage de broche de 105 mm : Suitable for long shafts, bars, pipes, and tubular workpieces within the machine’s working capacity.
• Workholding Configuration: Chuck, steady rest, follow rest, and other workholding equipment can be configured according to customer requirements.
• Tooling Configuration: Cutting tools, tool holders, and other accessories can be selected according to the machining application.
• Configuration électrique : La tension et la fréquence peuvent être confirmées en fonction des exigences du pays de destination.

Final chuck size, steady rest configuration, tooling, electrical specification, accessories, and other optional equipment should be confirmed before order placement.

The CW61125 electrical configuration can be supplied according to the customer’s destination-country requirements. Voltage, frequency, motor configuration, spindle configuration, and accessories should be confirmed before production.

Customers should provide their local power supply specification when requesting a quotation so that the machine can be configured correctly for installation and operation.

• Inspection avant expédition : Machine operation, spindle rotation, feed movement, workholding components, and major mechanical functions are checked before shipment.
• Vérification d'usinage : Trial turning and machine operation can be verified according to the agreed inspection requirements before delivery.
• Assistance technique : ZCIT propose une assistance technique, un service de pièces détachées et un service en ligne après livraison.

Q: What type of machine is the CW61125?
A: The CW61125 is a conventional heavy-duty horizontal lathe machine designed for machining large and long metal workpieces.

Q: What is the maximum swing over bed?
A: The maximum swing over bed is 1250 mm (49.2″).

Q: What is the maximum machining length?
A: The listed maximum machining length is 8000 mm (315″).

Q: What is the spindle bore?
A: The CW61125 features a 105 mm spindle bore.

Q: What workpieces are suitable for this horizontal lathe machine?
A: The machine is suitable for large shafts, rollers, cylinders, flanges, sleeves, pipes, and other oversized or elongated metal components.

Q: Is the CW61125 a CNC lathe?
A: No. The CW61125 is a conventional manual horizontal lathe machine rather than a CNC-controlled lathe.

Q: Can the electrical configuration be customized?
A: Voltage and frequency requirements can be confirmed according to the customer’s destination country before production.

Need a Powerful Horizontal Lathe Machine?

Send us your workpiece diameter, length, material, weight, drawings, or machining requirements. Our team can help you confirm the suitable spindle bore, chuck, steady rest, motor configuration, and machine specifications.
