Product Overview

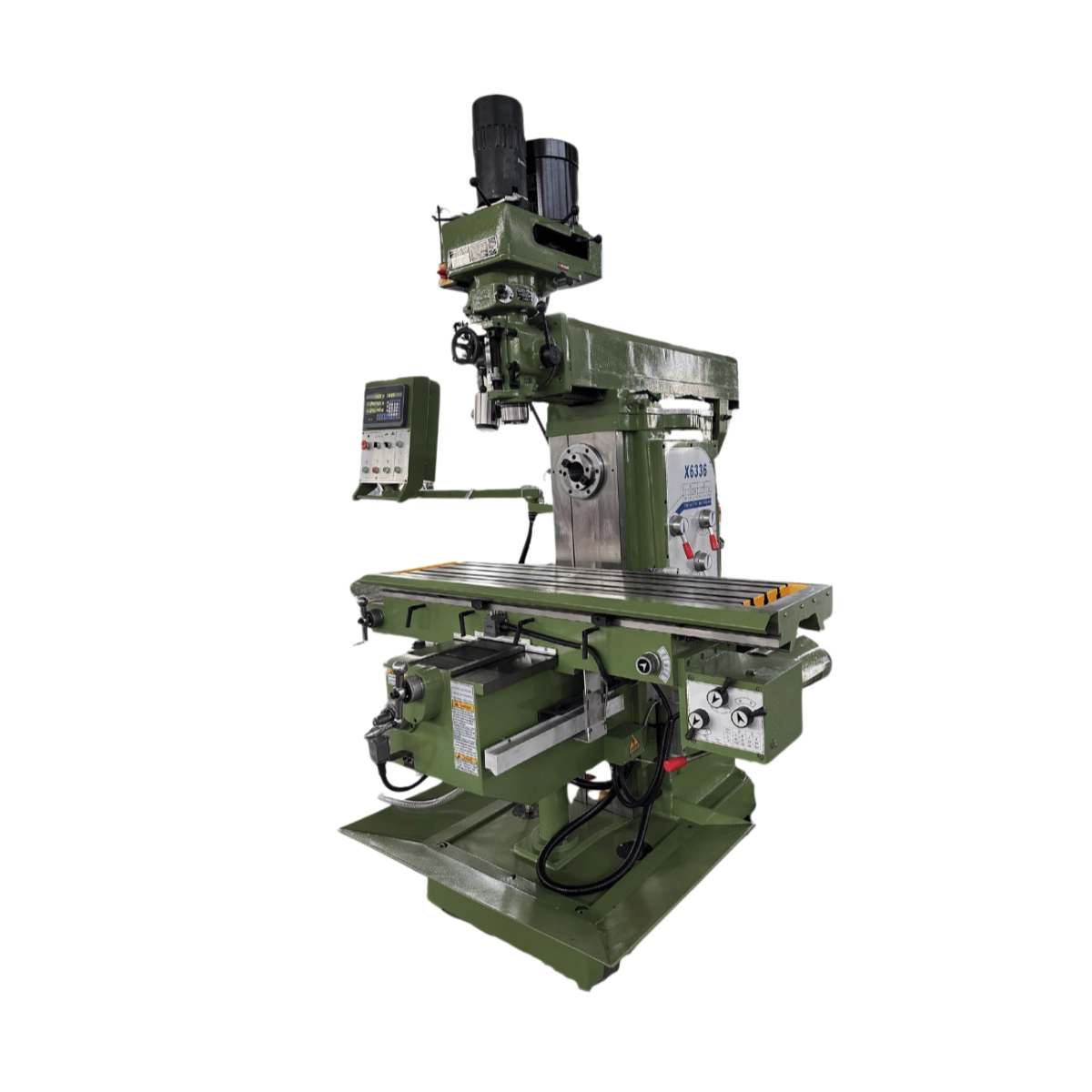

The X6336 Professional Bed-Type Milling Machine is designed for stable and flexible machining of medium and large metal workpieces. With a 1500 × 360 mm working table, wide three-axis travel, and both horizontal and vertical spindle configurations, this machine provides a practical solution for general manufacturing, tooling, maintenance, and industrial machining applications.

The X6336 provides 1000 mm longitudinal travel, 320 mm cross travel, and 350 mm vertical travel, giving operators a useful machining range for longer and wider workpieces. The pneumatic head configuration provides convenient head operation and improves handling efficiency during machining setup.

With separate horizontal and vertical milling configurations, this bed type milling machine can be used for face milling, slot milling, side milling, drilling, boring, and other conventional metalworking operations.

• Professional Bed-Type Milling Structure: The rigid machine structure provides stable support for conventional milling operations and larger workpieces.
• Large 1500 × 360 mm Working Table: The spacious worktable provides sufficient machining area for long and relatively wide workpieces, fixtures, and multiple machining setups.
• Pneumatic Head Operation: The pneumatic head configuration provides convenient head movement and improves operational efficiency during machine setup and machining.
• Horizontal & Vertical Milling Capability: Separate horizontal and vertical spindle configurations allow operators to select the appropriate milling arrangement for different machining tasks.
• NT40 Vertical Spindle: The vertical spindle uses an NT40 taper configuration suitable for compatible milling tooling and toolholders.
• 7:24 ISO50 Horizontal Spindle: The horizontal spindle uses a 7:24 ISO50 taper configuration for compatible horizontal milling tooling.
• Wide Three-Axis Travel: The machine provides 1000 mm longitudinal travel, 320 mm cross travel, and 350 mm vertical travel for flexible workpiece positioning.
• Automatic Table Feed: The powered table feed provides controlled longitudinal and transverse movement for convenient machining operations.

• Rigid Milling Machine Structure: The machine structure is designed to provide stable support during conventional milling operations and machining of larger workpieces.
• Dual Spindle Configuration: The separate horizontal and vertical spindle arrangements allow operators to select the most suitable machining configuration for different applications.
• Pneumatic Head: The pneumatic head system provides convenient head movement and helps simplify machine setup and operation.
• NT40 Vertical Spindle: The vertical spindle uses an NT40 taper and supports compatible vertical milling tooling.
• ISO50 Horizontal Spindle: The horizontal spindle uses a 7:24 ISO50 taper for compatible horizontal milling tooling.
• Wide Three-Axis Travel: The 1000 × 320 × 350 mm X/Y/Z travel provides a practical machining range for long and relatively large components.

For additional technical reference on vertical and horizontal milling machine configurations, see the

Haas Mill Operator’s Manual
,
which includes technical sections covering vertical mills, horizontal mills, and milling tool holders.

For a larger vertical milling machine with a 1700 × 400 mm working table, see the

X5040 Vertical Milling Machine
.

For a 1800 × 400 mm universal milling machine with horizontal and vertical spindle configurations, see the

XM1460 Universal Milling Machine
.

For a smaller R8 spindle turret milling machine, see the

No. 4 Turret Milling Machine
.

• XYZ Automatic Feed: Automatic feed configuration for convenient worktable movement during machining.
• NT40 Vertical Spindle: Standard vertical spindle configuration for compatible milling tooling.
• Indexing Head: Standard indexing head for workpiece positioning and indexing operations.
• Horizontal Spindle: 4 kW horizontal milling spindle configuration.
• Vertical Milling Head: 5 HP vertical milling head configuration.
• 3-Axis DRO: Digital readout for monitoring X, Y, and Z-axis positions.
• Manual Spindle: Manual spindle operating configuration according to the listed machine specification.

Final accessory configuration should be confirmed according to the quotation and customer requirements.

The listed X6336 configuration supports 3-phase 220V, 60Hz power supply. A 3-phase 380V, 50Hz configuration is also listed as an available machine power option.

Power supply, motor configuration, accessories, and machine specifications should be confirmed with ZCIT before order placement according to the customer’s destination country and electrical requirements.

• Pre-Shipment Inspection: Machine operation, major functions, and key specifications are checked before shipment.
• Machining Verification: Trial machining and machine operation can be verified according to the agreed inspection requirements before delivery.
• Technical Support: ZCIT provides technical assistance, spare parts support, and online service after delivery.

Q: What is the main advantage of this bed-type milling machine?
A: The X6336 combines a rigid milling structure with horizontal and vertical spindle configurations, providing flexible machining options for a wide range of conventional milling operations.

Q: What is the working table size?
A: The working table measures 1500 × 360 mm.

Q: What are the X, Y, and Z-axis travels?
A: The machine provides 1000 mm longitudinal travel, 320 mm cross travel, and 350 mm vertical travel.

Q: What spindle taper does the machine use?
A: The vertical spindle uses an NT40 taper, while the horizontal spindle uses a 7:24 ISO50 taper.

Q: What are the spindle motor powers?
A: The vertical milling spindle uses a 5 HP motor, while the horizontal spindle uses a 4 kW motor.

Q: What power supply is available?
A: The listed configuration supports 3-phase 220V, 60Hz, with 3-phase 380V, 50Hz also listed as an available option.

Need a Professional Bed-Type Milling Machine?

Send us your workpiece dimensions, drawings, material, or machining requirements. Our team can help you confirm the suitable spindle configuration, tooling requirements, power supply, and machine specification.
