Product Overview

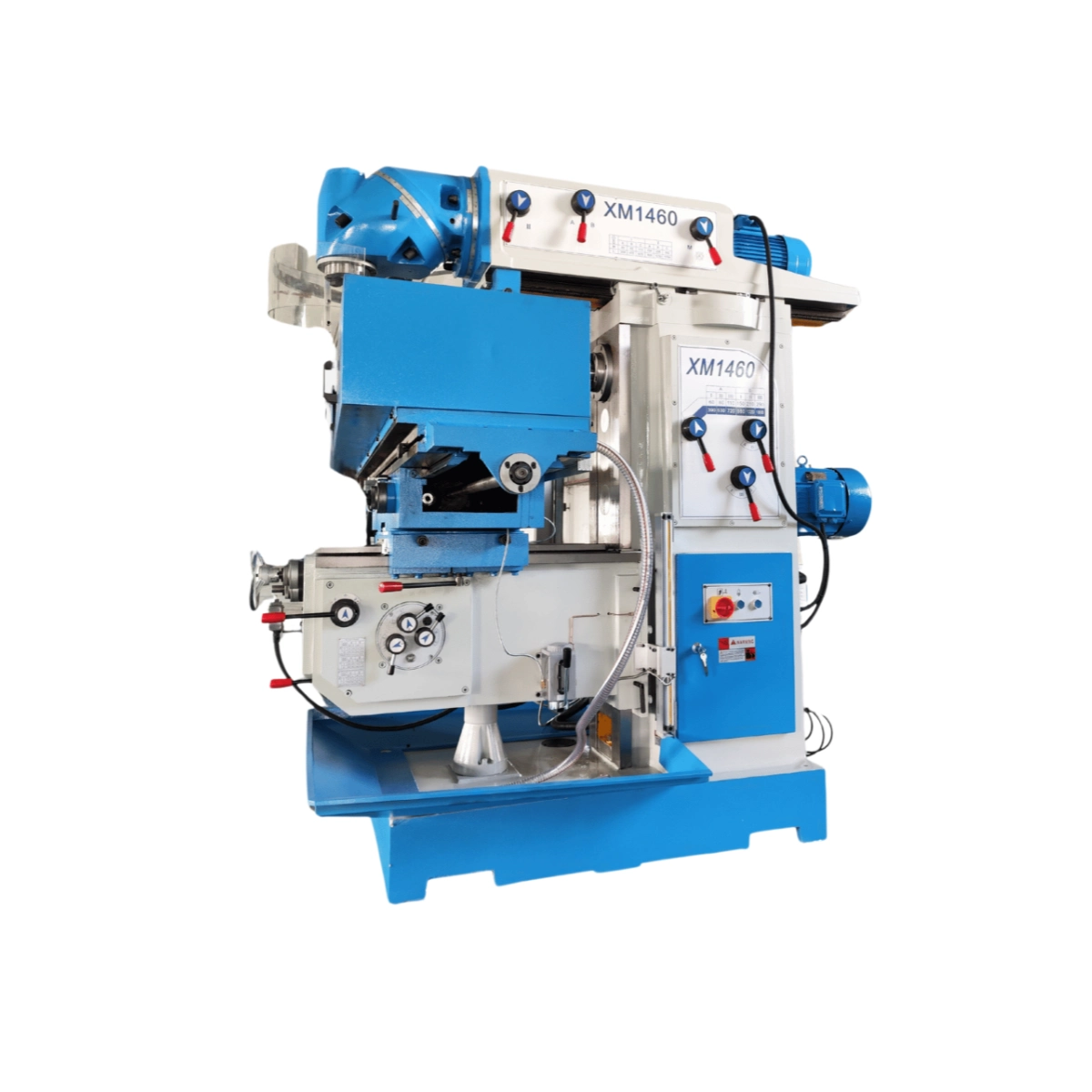

The XM1460 Professional Universal Milling Machine is designed for flexible machining of large and complex metal workpieces. Featuring a large 1800 × 400 mm swivel worktable, horizontal and vertical spindle configurations, and wide three-axis travel, this machine provides versatile machining capability for general manufacturing, tooling, maintenance, and heavy-duty workshop applications.

The XM1460 provides 1300 mm longitudinal travel, 420 mm cross travel, and 600 mm vertical travel, allowing operators to machine long and relatively large workpieces with flexible positioning. The swivel table can rotate ±45°, providing additional flexibility for angular milling operations.

With both horizontal and vertical milling capability, this universal milling machine can handle face milling, slot milling, side milling, drilling, boring, angular machining, and other conventional metalworking operations while reducing the need for separate machine setups.

• Universal Horizontal & Vertical Milling: The machine combines horizontal and vertical milling capability in one platform, providing greater flexibility for different machining operations.
• Large 1800 × 400 mm Swivel Table: The spacious worktable provides sufficient working area for long and relatively large workpieces, fixtures, and multiple machining setups.
• ±45° Table Swivel: The worktable can swivel ±45°, allowing operators to perform angular milling operations without requiring additional workholding arrangements for every application.
• ISO50 Spindle Taper: The 7:24 ISO50 spindle configuration is suitable for compatible milling toolholders used in conventional horizontal and vertical milling applications.
• Independent Spindle Motors: The vertical spindle is driven by a 7.5 kW motor while the horizontal spindle uses a 5.5 kW motor, providing dedicated power for different milling configurations.
• Wide Three-Axis Travel: The machine provides 1300 mm longitudinal travel, 420 mm cross travel, and 600 mm vertical travel for flexible workpiece positioning.
• Large Machining Envelope: The combination of large table size and wide axis travel makes the machine suitable for long workpieces and demanding general metalworking applications.

• Universal Milling Configuration: The machine combines horizontal and vertical milling functions, allowing operators to select the most suitable spindle configuration for different machining tasks.
• Large Swivel Worktable: The 1800 × 400 mm worktable provides a large machining surface and can swivel ±45° for angular milling operations.
• Rigid Machine Structure: The heavy machine structure is designed to provide stable support during milling operations involving large workpieces and substantial cutting loads.
• Independent Horizontal and Vertical Spindles: Dedicated spindle drives provide different machining configurations without requiring the machine to rely on a single spindle arrangement.
• Wide Machining Range: The 1300 × 420 × 600 mm X/Y/Z travel provides substantial positioning range for long and relatively large workpieces.

For additional technical reference on horizontal and vertical milling machine configurations, see the

Haas Mill Operator’s Manual
,
which provides technical information covering both vertical and horizontal milling machines.

For a large vertical milling machine with a 1700 × 400 mm working table, see the

X5040 Vertical Milling Machine
.

For a 1370 × 305 mm turret milling machine with a variable-speed head, see the

No. 5 Turret Milling Machine
.

For a 1270 × 254 mm R8 spindle turret milling machine, see the

No. 4 Turret Milling Machine
.

• Horizontal and Vertical Spindle Configuration: Provides flexible milling options for different machining requirements.
• Swivel Worktable: The worktable can swivel ±45° for angular machining operations.
• Coolant System: A 90 W coolant pump with a listed flow rate of 25 L/min supports coolant delivery during machining.
• Feed Drive: The 2.36 kW feed motor provides powered table movement for machining operations.

Final accessory configuration should be confirmed according to the quotation and customer requirements.

• Pre-Shipment Inspection: Machine operation, major functions, and key specifications are checked before shipment.
• Machining Verification: Trial machining and machine operation can be verified according to the agreed inspection requirements before delivery.
• Technical Support: ZCIT provides technical assistance, spare parts support, and online service after delivery.

Q: What is the main advantage of this universal milling machine?
A: The XM1460 combines horizontal and vertical milling capability, allowing operators to select the appropriate spindle configuration for different machining operations.

Q: What is the working table size?
A: The working table measures 1800 × 400 mm and can swivel ±45°.

Q: What spindle taper does the XM1460 use?
A: The horizontal and vertical spindle configuration uses a 7:24 ISO50 spindle taper.

Q: What are the X, Y, and Z-axis travels?
A: The machine provides 1300 mm longitudinal travel, 420 mm cross travel, and 600 mm vertical travel.

Q: What are the spindle motor powers?
A: The vertical milling spindle uses a 7.5 kW motor, while the horizontal milling spindle uses a 5.5 kW motor.

Q: Can the machine perform angular milling?
A: Yes. The worktable can swivel ±45°, while the milling head configuration provides additional flexibility for angular machining.

Need a Professional Universal Milling Machine?

Send us your workpiece dimensions, drawings, material, or machining requirements. Our team can help you confirm the suitable spindle configuration, table size, tooling requirements, and machine specification.
