Product Introduction

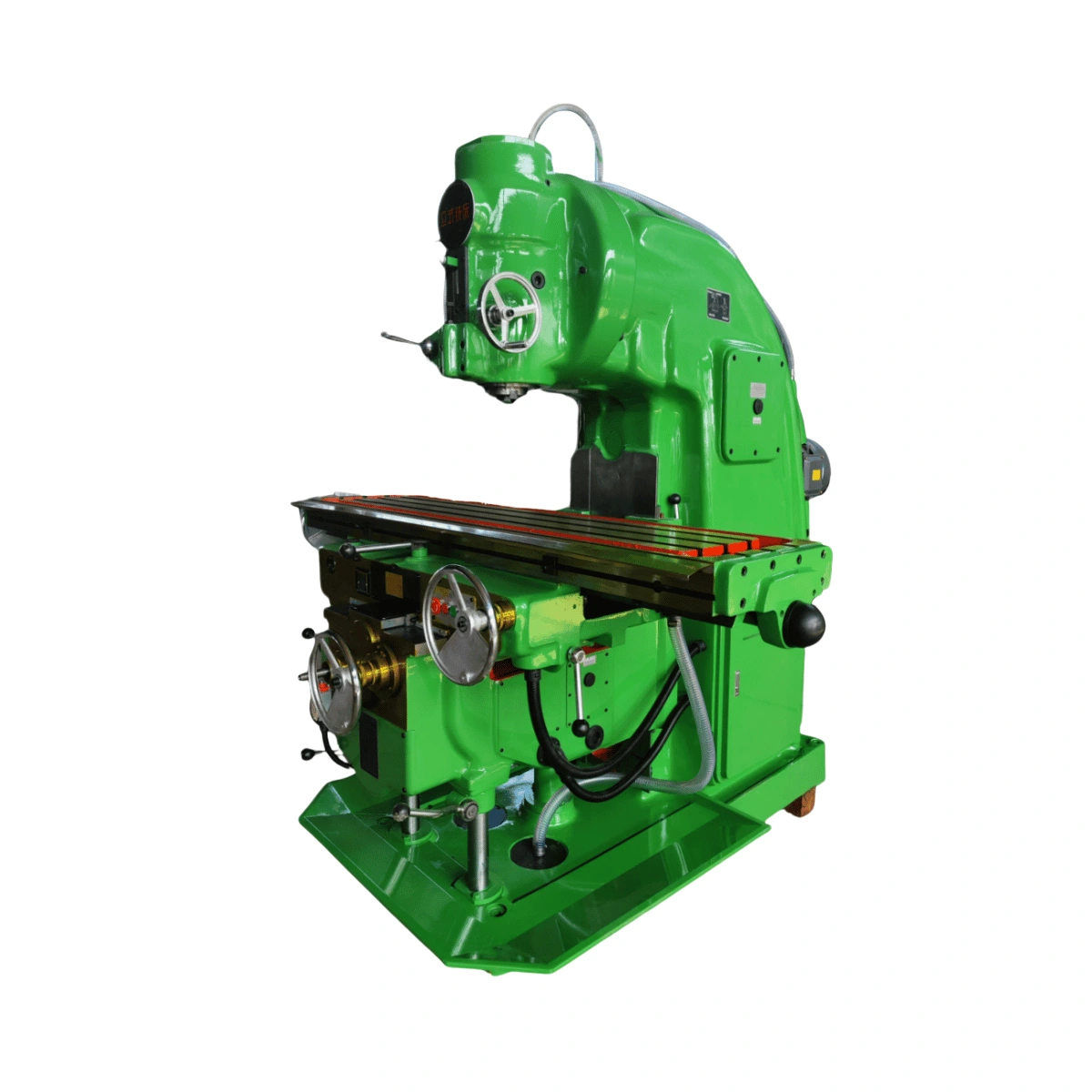

The X5040 Vertical Milling Machine is a heavy-duty vertical milling machine designed for stable and accurate metal machining in industrial environments. With its reinforced machine structure and vertical spindle configuration, this model provides reliable performance for medium to heavy cutting operations.
The X5040 supports a wide range of machining tasks including face milling, slot milling, drilling, and contour machining. Its robust design and practical layout make it suitable for production workshops, tooling departments, and maintenance facilities requiring dependable vertical milling capability.
Specification
| UNIT | X5040 | |
| working surface(W ×L) | mm | 400 × 1700 400×2000(optional) |
| Bearing | kg | 800 |
| No.of T-slots of table | 3 | |
| Width of T-slots of table | mm | 18 |
| Distance between T-slots | mm | 90 |
| Longitudinal(manual/auto) | mm | 900/880 |
| Cross (manual/auto) | mm | 315/300 |
| Vertical(manual/auto) | mm | 385/365 |
| Taper | IOS 50(7:24) | |
| Speed range | r/min | 30-1500 |
| No.of spindle speeds | Step | 18 |
| Axial mootion | mm | 85 |
| Max.swivel angle | dep | ± 45 |
| Distance from spindle nose to table surface min./mix. | mm | 30/500 |
| Distance from centre line of spindle tovertical guideway surface of column | mm | 450 |
| cutting feed rate | mm/min | X:19~950 Y:12.6~634 Z :6.3~ 317 |
| Rapid feed rate | mm/min | X:2300 y:1540 z:770 |
| No.of feeds | Step | 18 |
| Power of spindle motor | kw | 11 |
| Power of feed motor | kw | 3 |
| Overall dimensions （ L × W × H ） | mm | 2556 × 2159 ×2298 |
| Net weight | kg | 4250 |
Free Equipped
| ITEM | SPECIFICATION | QTY |
| milling chuck | 8 | pcs |
| reduction sleeve | 2 pcs
| |
| Horizontal milling cutter rod | 1 pcs
| |
| Return knife iron | 1 pcs | |
| A screwdriver | 4″
| 1 pcs |
| allen key | 6；GB5356
| 1 pcs |
| allen key | 8；GB5356
| 1 pcs |
| allen key | 10；GB5356
| 1 pcs |
| Double headed wrench | 8×10；GB4388
| 1 pcs |
| Double headed wrench | 22×24；GB4388
| 1 pcs |
| pull rod | 1 pcs | |
| Ordinary flat pliers | 160mm（200mm） | 1 pcs |
| Oil gun | 1 pcs | |
| Big Shake Handle | 1 pcs | |
| Instructions | 1 pcs | |
| Certificate of conformity | 1 pcs |
