Product Overview

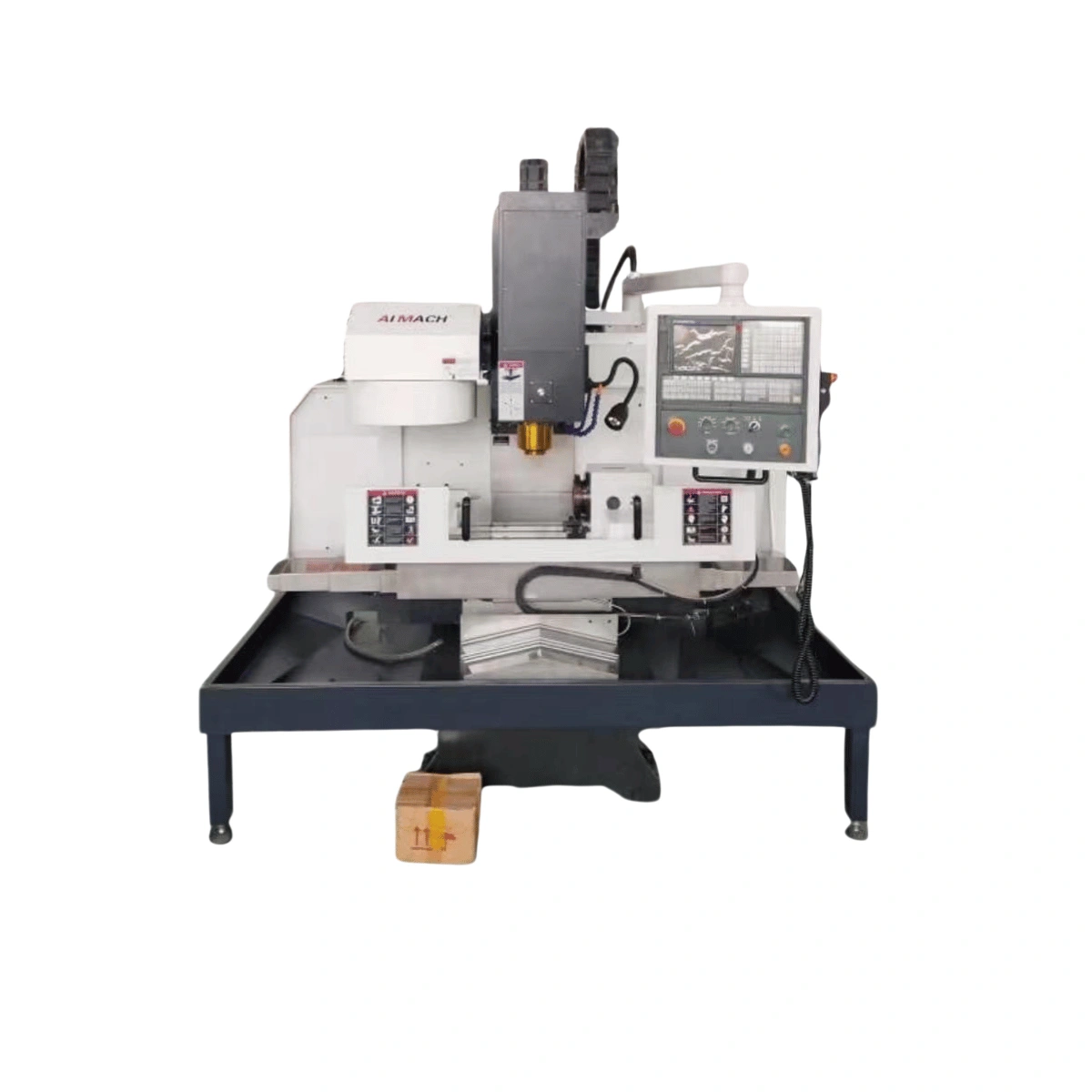

The XH1040 CNC Milling Machine is a compact and precise CNC milling solution designed for efficient machining of small to medium-sized metal components. With a 1250 × 360 mm working table, BT40 spindle, and 5.5 kW main motor, it provides a practical balance of machining capability, accuracy, and workshop space efficiency.

The XH1040 provides 900 mm X-axis travel, 400 mm Y-axis travel, and 500 mm Z-axis travel, with a 1000 mm X-axis travel available as an option. The BT40 direct-drive spindle reaches a maximum speed of 8000 rpm, providing a wide operating range for general CNC milling applications.

Designed for precision CNC milling rather than automatic tool-changing operations, the XH1040 is suitable for tooling production, component machining, fixture manufacturing, repair work, and general metalworking. Its rigid structure and controlled three-axis movement provide stable positioning and repeatable machining performance.

• Compact CNC Milling Design: The XH1040 provides controlled three-axis CNC milling capability in a compact machine configuration, making efficient use of workshop space.
• BT40 Spindle: The BT40/120 spindle taper provides compatibility with commonly used CNC milling toolholders and tooling systems.
• 8000 rpm Maximum Spindle Speed: The high spindle speed provides flexibility for different cutting conditions and general CNC milling applications.
• 5.5 kW Main Motor: The 5.5 kW spindle motor provides stable cutting power for a wide range of metal machining operations.
• Wide Three-Axis Travel: The machine provides 900 × 400 × 500 mm X/Y/Z travel, with a 1000 mm X-axis option for customers requiring additional longitudinal machining range.
• Direct-Drive Spindle: The direct spindle drive provides a straightforward transmission structure for stable CNC milling operations.
• Precision Positioning: The listed positioning accuracy is 0.016 mm, with repeatability accuracy of 0.008 mm.
• 350 kg Maximum Table Load: The worktable supports a maximum listed load of 350 kg for suitable workholding and component machining applications.

• Rigid CNC Milling Structure: The machine structure is designed to provide stable support for three-axis CNC milling operations and accurate workpiece positioning.
• BT40 Direct-Drive Spindle: The BT40 spindle provides compatibility with standard CNC milling toolholders while the direct-drive configuration supports stable spindle operation.
• Three-Axis CNC Control: Controlled X, Y, and Z axis movement provides precise positioning and repeatable machining of workpieces.
• Wide Machining Travel: The 900 × 400 × 500 mm standard X/Y/Z travel provides a useful machining envelope for small and medium-sized components.
• Optional 1000 mm X-Axis: An optional 1000 mm X-axis travel is available for customers requiring additional longitudinal machining range.
• Precision Ball Screws: The listed configuration uses X32/06 and Y/Z40/06 ball screws for controlled axis movement.
• High-Speed Spindle: The 8000 rpm maximum spindle speed provides flexibility for different milling cutters, materials, and machining conditions.

For additional technical reference on CNC milling operation and tooling, see the

Haas Mill Operator’s Manual
,
which provides general technical information related to CNC milling machines and milling tooling.

For a larger CNC bed-type milling machine with a 2000 × 400 mm worktable, see the

XA7150 CNC Bed-Type Milling Machine
.

For a conventional vertical milling machine with a 1700 × 400 mm worktable, see the

X5040 Vertical Milling Machine
.

For a CNC machining center with automatic tool-changing capability, see the

VMC1160 CNC Machining Center
.

• BT40-ER32 Spring Collet Holder: One MAS BT40-ER32 spring collet holder is included according to the listed accessory configuration.
• Spring Collets: Collets in 6, 8, 10, 12, 16, and 20 mm sizes are listed as standard accessories.
• Pull Stud: One P40T-1-MAS403 pull stud is included according to the listed configuration.
• Adjustable Shim and Bolt Set: One set is listed as a free accessory.

Final accessory configuration should be confirmed according to the quotation and customer requirements.

The listed XH1040 configuration supports 3-phase 380V, 50Hz and 3-phase 220V, 60Hz power supply options.

Voltage, frequency, CNC control system, motor configuration, accessories, and final machine specifications should be confirmed with ZCIT before order placement according to the customer’s destination country and electrical requirements.

• Pre-Shipment Inspection: Machine operation, major functions, and key specifications are checked before shipment.
• Machining Verification: Trial machining and machine operation can be verified according to the agreed inspection requirements before delivery.
• Technical Support: ZCIT provides technical assistance, spare parts support, and online service after delivery.

Q: What type of machine is the XH1040?
A: The XH1040 is a three-axis CNC milling machine designed for precise and efficient machining of small to medium-sized metal components.

Q: What is the working table size?
A: The working table measures 1250 × 360 mm and supports a maximum listed load of 350 kg.

Q: What spindle taper does the XH1040 use?
A: The machine uses a BT40/120 spindle taper with a direct-drive spindle configuration.

Q: What are the X, Y, and Z-axis travels?
A: The standard X/Y/Z travels are 900 × 400 × 500 mm, with a 1000 mm X-axis travel available as an option.

Q: What is the maximum spindle speed?
A: The maximum spindle speed is 8000 rpm.

Q: What is the positioning accuracy?
A: The listed positioning accuracy is 0.016 mm, with repeatability accuracy of 0.008 mm.

Q: What power supply is available?
A: The listed electrical configurations include 3-phase 380V 50Hz and 3-phase 220V 60Hz.

Need a CNC Milling Machine?

Send us your workpiece dimensions, drawings, material, or machining requirements. Our team can help you confirm the suitable table size, BT40 tooling, axis travel, power supply, and CNC milling configuration.
