Introduction

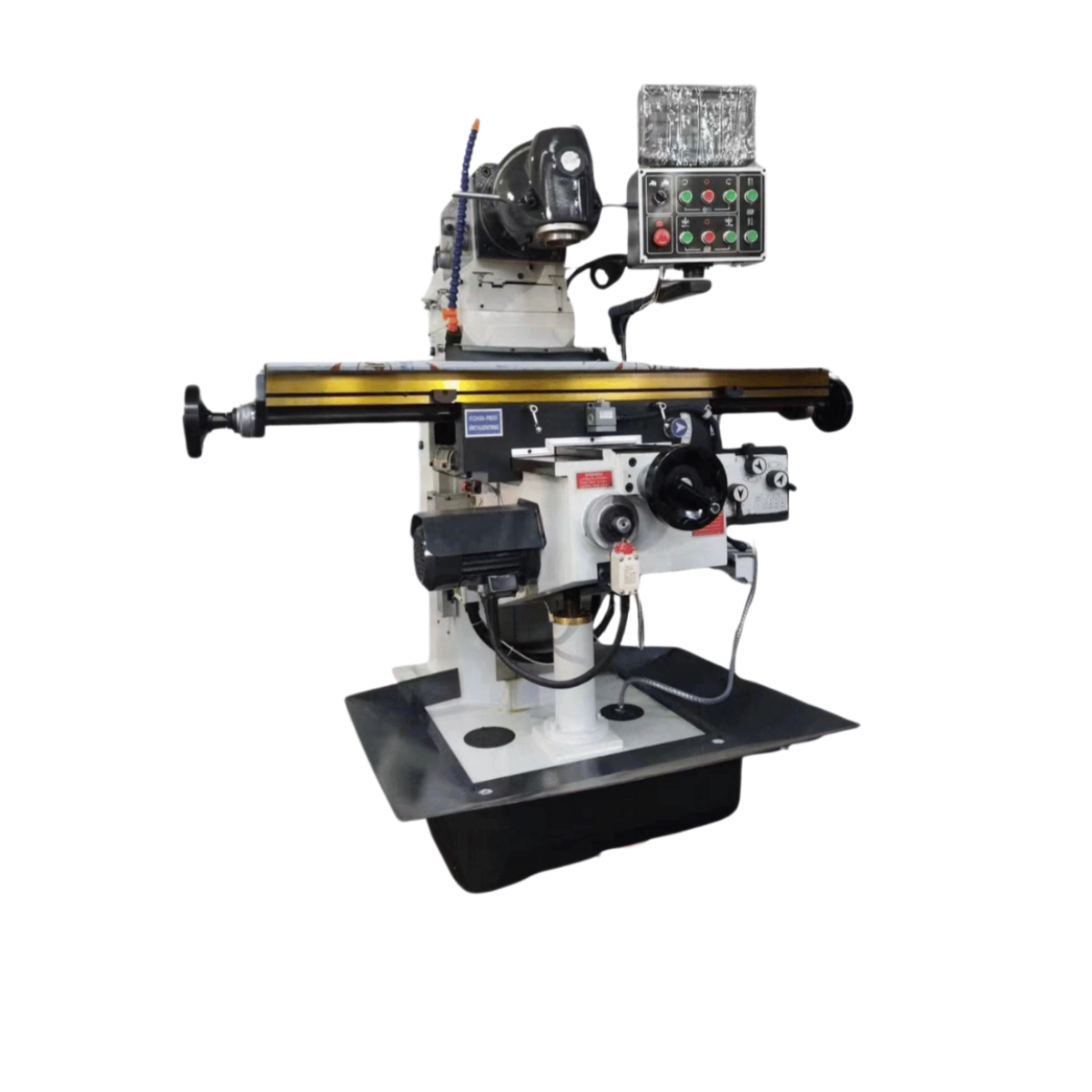

The X6232 Rotary Head Milling Machine basic casting of the universal rotary head milling machine has good rigidity and accuracy retention. The spindle transmission and feed transmission both use 18 level gear speed change, which has a wide range of speed changes. The universal rotary head milling machine has a wide processing range.
purpose
The universal rotary head milling machine can be used as an end milling head, and can also perform 270 degree rotation in two directions. It is equipped with a spindle sleeve, which can be extended and retracted, and can process inclined surfaces and holes at any angle.
Structural characteristics
The design of the spindle with two heads allows for convenient conversion between vertical and horizontal milling, as well as the combination of any spatial angle, while also significantly improving the rigidity compared to the three heads. Precise positioning pins are installed on the two heads to ensure precise positioning for vertical and horizontal milling conversion, making operation more convenient.
Specification
| ITEM | UNIT | X6232 |
| Table size | mm | 1370*320 |
| Table travel | mm | 800/320/400 |
| T slot(number-width*pitch) | — | 3-16*60 |
| Spindle taper | — | ISO40 |
| Spindle speed range(steps) | rpm | 48-1660 (12) |
| Distance between spindle nose and table surface | mm | 120-520 |
| Table feed range (steps) | mm /rmin | XY:22-555(8)z:electric |
| Swivel angle of milling head | ° | 360 |
| Main motor power | kw | 3 |
| Feed motor power | kw | 1.1 |
| Machine weight | Kg | 1700 |
| Machine size | Mm | 1700*1560*1750 |
| Voltage | — | 3PH,220V 50HZ OR 3PH 380V 60HZ |
Free Equipped
Optional Accessory
| NO. | ITEM | NOTE |
| 1 | 3-jaw chuck | Used for Circular workpiece |
| 2 | 4-jaw chuck | Used for Irregular workpiece |
| 3 | Dividing head | Center height 150/160mm |
| 4 | Electronic oil pump | |
| 5 | Precision flat nose pliers | 160mm |
| 6 | Spindle protection | |
| 7 | Workbench protection | |
| 8 | Spindle NT50 | |
| 9 | Bigger motor power |
Terms
- Voltage: 3PH, 380V, 50HZ/ 3PH, 220V,60HZ
- Condition: 100% New
- Original: CHINA
