Introduction

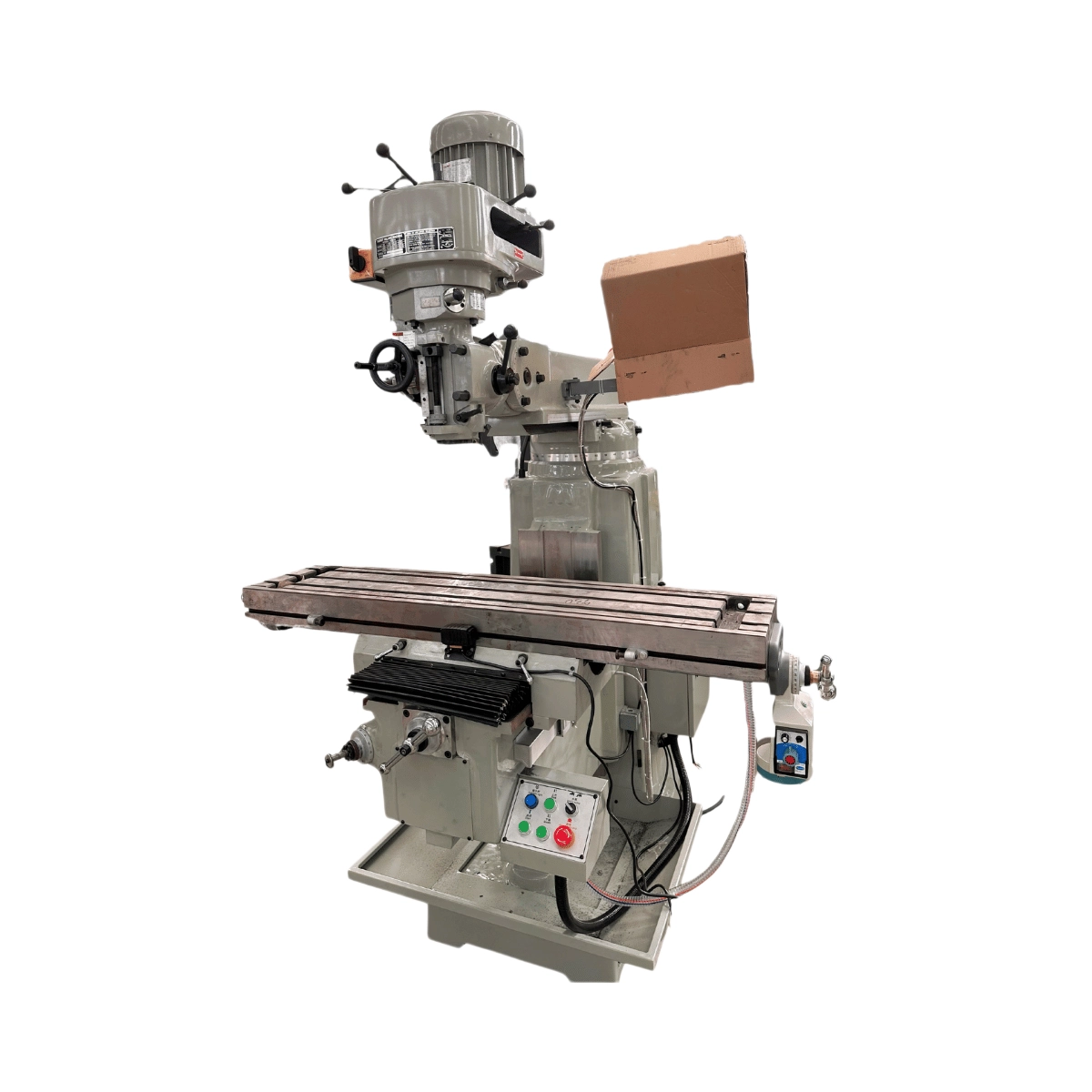

The X6325W Horizontal and Vertical Milling Machine is a universal milling machine designed to perform both horizontal and vertical milling operations on a single platform. This dual-function configuration allows users to handle a wide range of machining tasks without changing machines.
By combining horizontal cutting strength with vertical milling flexibility, the X6325W is suitable for machining flat surfaces, slots, grooves, and complex profiles. It is widely used in tooling workshops, maintenance departments, and general metalworking applications.
Specification
| Specifications | X6325W |
| Table size | 1270X254 mm |
| XYZ axis travel | 750/400/400mm |
| Spindle taper | R8 |
| Spindle speed range(Vertical) | 66-5440rpm |
| Spindle speed range(Horizontal) | 40-1300rpm |
| Main motor power | 2.2kw(V) 3.0kW(H) |
| Packing size | 170X167X220 cm |
| N.W./G.W | 1380/1480kg |
Terms
- Voltage: 3PH, 380V, 50HZ/ 3PH, 220V,60HZ
- Condition: 100% New
- Original: CHINA
- Delivery time: 7 days from CHINA
