Product Introduction

On ZCIT-CD6250C Lathe machine, you can Turn the outer circle and inner hole. Turn end face and conical surface of the part, drill holes, ream holes and oil grooves. Can process all kinds of metric, inch, modulus, pitch thread.



This machine is especially suitable for small batch production, Workshop and machinery repair shop for high precision light processing.



This machine can process steel, cast iron, non-ferrous metals, non-metals and other materials.



The dimensional accuracy ofparts processed on this machine can reach IT7 level, and the surface roughness can reach 1.6 level.



The main features of this series of machine tools are simple structure, good performance and easy use.



Specification

Item	CD6250C
Max. swing diameter over bed	500mm ( 19 3/5” )
Distance between centers	1000/ 1500/2000/3000mm
Max. swing over cross slide	325mm ( 12 3/4”)
Max. swing over gap	630mm(24 4/5”)
Effective length of gap	260mm ( 10 1/4”)
Center height	250mm(9 4/5”)
Bed Width	330mm
Spindle hole	80mm(3 1/7”) ISO D8
Spindle taper	Metric 85mm ( 1:20)
Spindle speed	24-1600( 15 steps)
Metric threads range	0.5-28mm(66 kinds)
Inch threads range	1-56/inch(66 kinds)
Module threads range	0.5-3.5mm(33 kinds)
Diametral threads range	8-56D.P(33 kinds)
Longitudinal feeds range	0.072-4.038mm/rev (0.0027-0.15 inch/rev)(66 kinds)
Cross feeds range	0.036-2.019mm/rev (0.0013-0.075 inch/rev)(66 kinds)
Cross slide travel	300mm ( 12”)
Compound rest travel	130mm(5”)
Cross-section size of toolshank	25x25mm
Taper of tailstock sleeve	Morse No.5
Travel of tailstock sleeve	120
Main drive motor	4 kw or 5.5kw or 7.5kw
Main motor speed	1440r/min
Max. Torque	400 N·m
Max. Cutting Force	4100N
Coolant pump motor	0.125kw
Rapid traverse motor	0.12kw

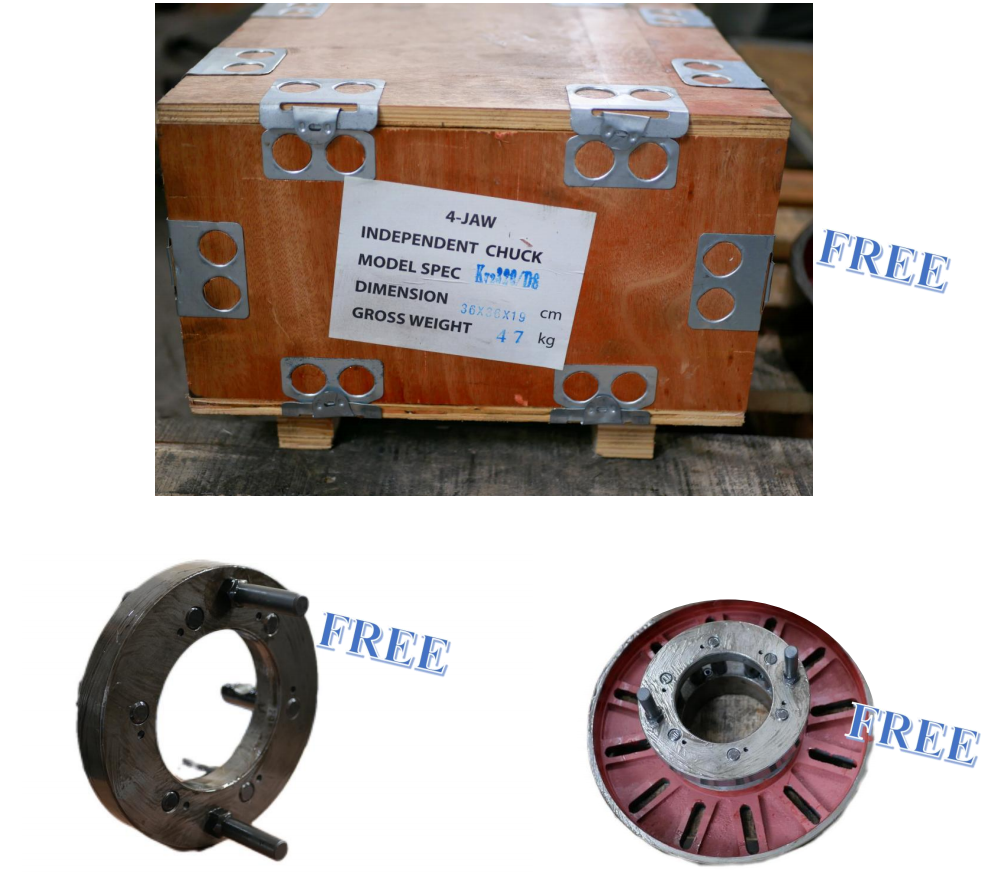

Free Equipped
