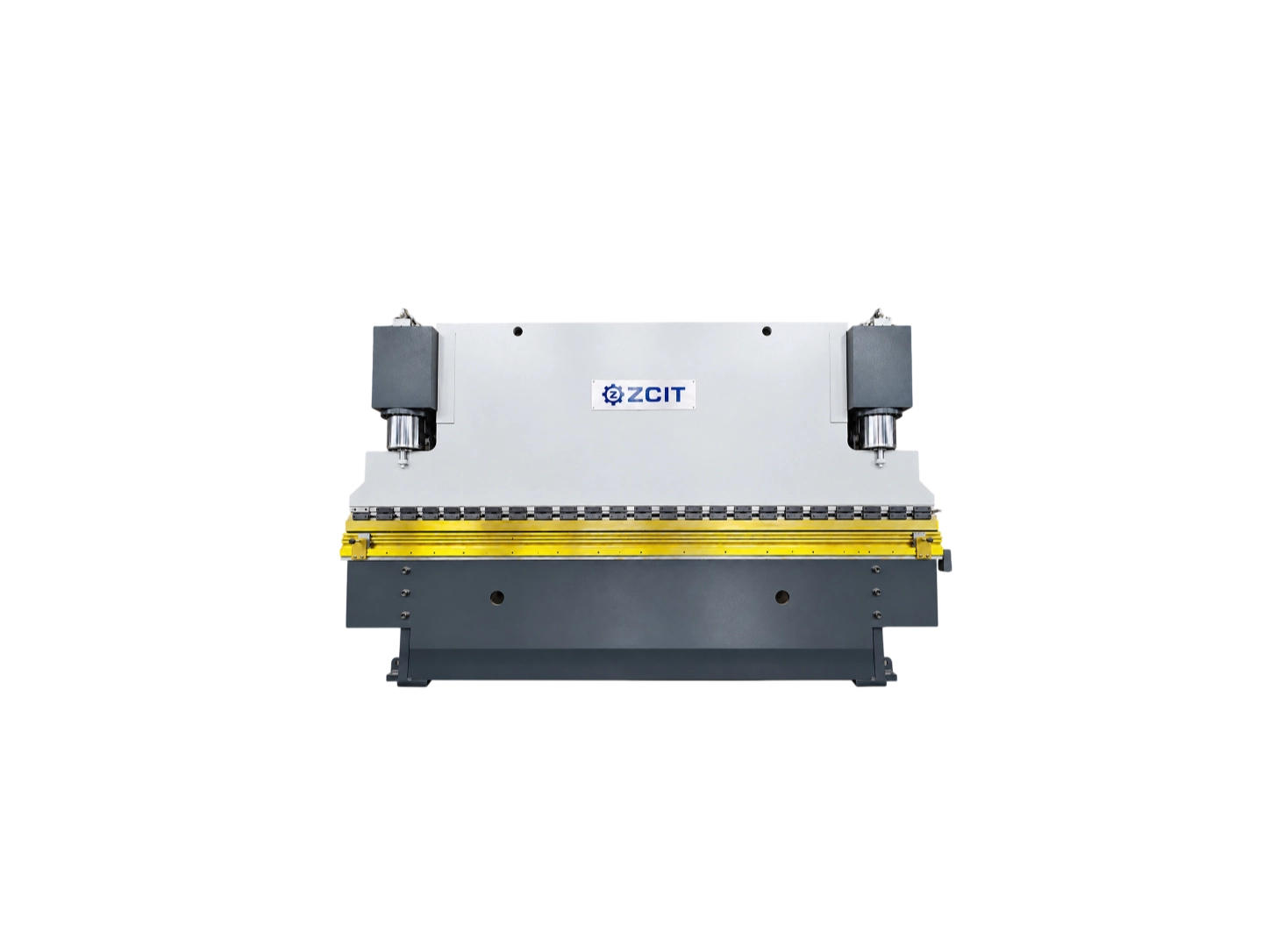

WC67K-300T/3200 Double-Cylinder Torsion Bar Servo CNC Press Brake with TP10S Controller ZCIT
WC67K-300T/3200 Double-Cylinder Torsion Bar Servo CNC Press Brake with TP10S Controller ZCIT
The WC67K-300T/3200 Double-Cylinder Torsion Bar Servo CNC Press Brake features 3000 kN nominal force, a 3200 mm bending length and a TP10S CNC controller. With a 250 mm ram stroke, 520 mm maximum open height and 22 kW main motor, it is designed for suitable industrial sheet metal bending applications. Contact ZCIT to discuss your material, sheet thickness, tooling requirements and machine configuration.
مواصفات المنتج
- Nominal Force：300T
- Bending Length：3200mm
- Throat Depth: 400mm
- Control system: TP10S
- Distance Between Side Frames: 2600mm
- Main Motor Power: 22kw
WC67K-300T/3200 Double-Cylinder Torsion Bar Servo CNC Press Brake Overview
ال WC67K-300T/3200 double-cylinder torsion bar servo CNC press brake is designed for suitable sheet metal bending, metal fabrication, and general industrial manufacturing applications. With a 3000 kN nominal force و أ 3200 mm bending length, this machine can be considered for compatible industrial sheet metal components and fabrication projects.
This model is equipped with a TP10S CNC controller. Its specified configuration includes a 250 mm ram stroke, a maximum open height of 520 mm, a throat depth of 400 mm, and a 22 kW main motor. Actual bending suitability depends on material type, sheet thickness, tooling, and required bend geometry.
3000 kN
3200 mm
TP10S
22 كيلوواط
المواصفات الفنية
| بند المواصفات | وحدة | WC67K-300T/3200 |
|---|---|---|
| طراز الآلة | — | WC67K-300T/3200 |
| CNC Controller | — | TP10S |
| Nominal Force | kN | 3000 |
| Bending Length | مم | 3200 |
| Distance Between Side Frames | مم | 2600 |
| Ram Stroke | مم | 250 |
| Maximum Open Height | مم | 520 |
| Throat Depth | مم | 400 |
| Ram Approach Speed (No-load) | mm/s | ≥60 |
| Working Speed | mm/s | 10 |
| Ram Return Speed | mm/s | ≥35 |
| طاقة المحرك الرئيسي | كيلوواط | 22 |
| Overall Dimensions (L × W × H) | مم | 3500 × 2000 × 3000 |
Key Features & Bending Capabilities
- 3000 kN Nominal Force: Specified nominal force for evaluating compatible industrial sheet metal bending tasks.
- 3200 mm Bending Length: Provides a working length for compatible sheet metal components.
- TP10S CNC Controller: The listed control system for this machine model. Confirm the supplied controller functions with the supplier.
- Torsion-Bar Synchronous Design: Described as a torsion-bar synchronous press brake. Confirm the exact mechanical configuration before ordering.
- 250 mm Ram Stroke: Specified vertical travel of the ram.
- 520 mm Maximum Open Height: Maximum opening height listed in the technical specifications.
- 400 mm Throat Depth: Provides working space for positioning suitable sheet metal parts.
- محرك رئيسي بقدرة 22 كيلوواط: Rated main motor power listed for this model.

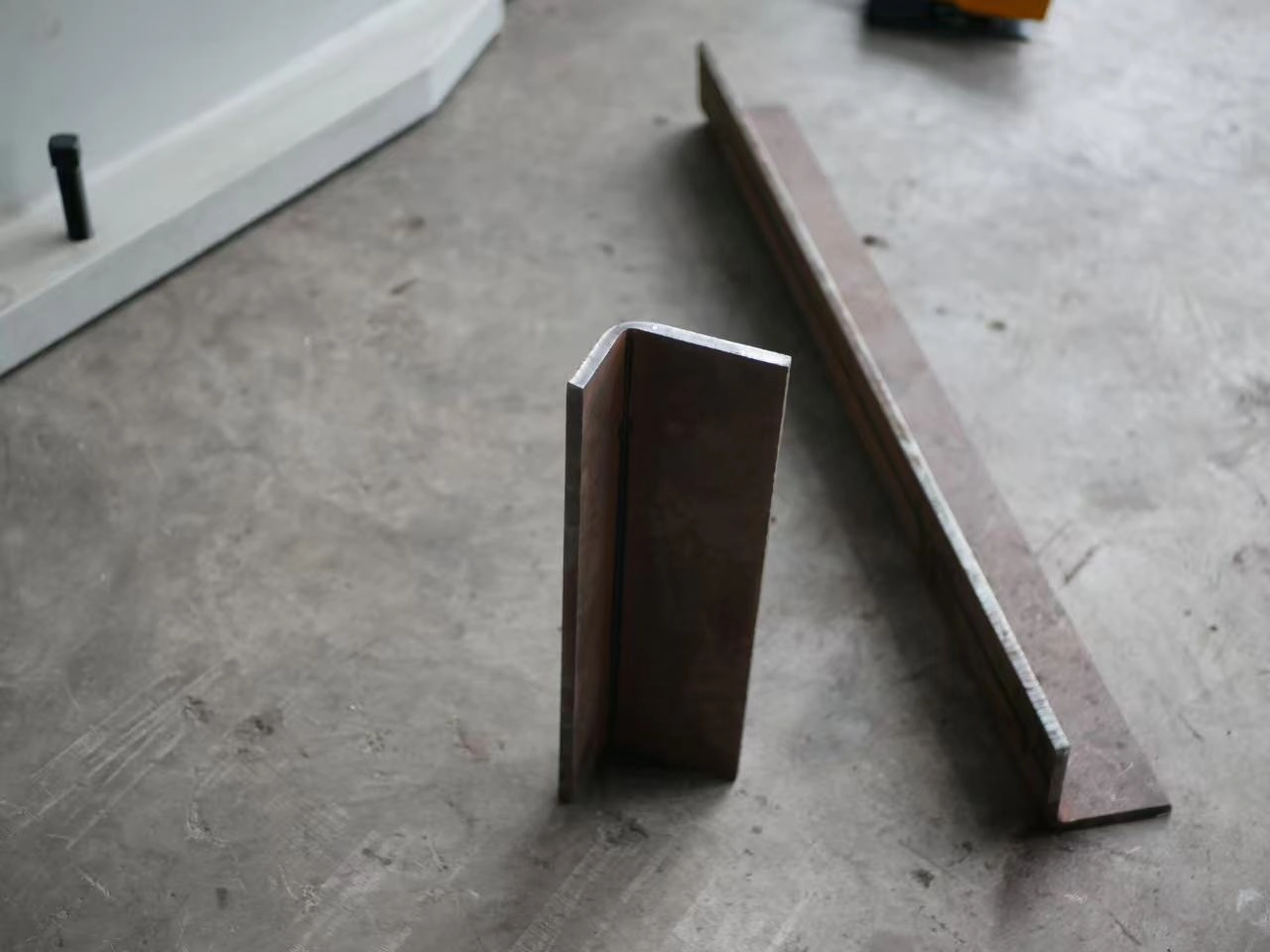

Typical Sheet Metal Bending Applications
The WC67K-300T/3200 can be considered for suitable bending operations in metal fabrication workshops and industrial production. Actual suitability depends on material type, thickness, workpiece dimensions, tooling and required bend geometry.
تصنيع المعادن
Bending sheet metal plates, brackets, channels, supports and custom components for general fabrication projects.
Electrical Cabinets & Enclosures
Forming cabinet panels, enclosure sides, mounting plates and sheet metal components for electrical equipment.
المعدات الصناعية
Producing suitable machine covers, protective guards, equipment panels and formed metal housings.
Metal Furniture & Shelving
Bending compatible metal supports, shelf components, brackets and formed sections for storage systems and furniture.
Construction Metalwork
Processing suitable metal channels, mounting brackets, profiles and formed components for building projects.
Custom Bending Jobs
Producing made-to-order sheet metal components, subject to material, thickness, bending length and tooling requirements.
Standard Accessories Included
| No. | Accessory | Quantity |
|---|---|---|
| 1 | Foot Switch | 1 piece |
| 2 | Anchor Bolts | 1 set |
| 3 | Flat Washers | 1 set |
| 4 | Spring Washers | 1 set |
| 5 | Nuts | 1 set |
| 6 | Support Plates | 1 set |
| 7 | Grease Gun | 1 piece |
| 8 | Allen Key Set | 1 set |
Complementary Machines for Sheet Metal Fabrication
A hydraulic press brake can be used alongside other sheet metal fabrication equipment. A fiber laser cutting machine prepares sheet metal blanks, the press brake forms the parts, and a welding machine may join components when the design requires welded assemblies.
How to Select a CNC Press Brake
When selecting a CNC press brake, buyers should consider the material type, maximum sheet thickness, bending length, required bend angle, tooling, and production volume. These details help determine whether the machine’s nominal force and working dimensions suit the intended application.
- Material Type: Confirm whether the workpieces are made from mild steel, stainless steel, aluminum, or another material.
- Sheet Thickness: Provide the maximum thickness and material grade to assess the required bending force.
- Bending Length: Confirm the longest workpiece to be processed.
- Tooling Requirements: Discuss the punch, die, and tooling configuration with the supplier.
- Controller Configuration: Confirm the TP10S system configuration and available functions.
- Production Requirements: Explain the intended application and expected production volume.
Explore ZCIT industrial machinery for metalworking and manufacturing applications.
For general information about machine guarding and safe machinery operation, refer to the إرشادات إدارة السلامة والصحة المهنية (OSHA) بشأن حماية الآلات.
Need a CNC Press Brake for Your Production?
Share your material type, maximum sheet thickness, bending length and application requirements. Contact ZCIT to discuss the WC67K-300T/3200 CNC press brake and request a quotation.
التعليمات
1. مراقبة الجودة والتفتيش
س: كيف تضمنون دقة الآلة قبل الشحن؟
ج: تخضع كل آلة لمعايرة مقياس التداخل الليزري، واختبار قطع تجريبي، واختبار تشغيل متواصل لمدة 72 ساعة. ويتم تقديم تقارير فحص كاملة ومقاطع فيديو قبل الشحن.
2. شروط الدفع
س: ما هي شروط الدفع المقبولة لديكم؟
ج: نقبل التحويل المصرفي (T/T). شروط الدفع القياسية هي دفعة مقدمة بقيمة 30% عند تأكيد الطلب، مع دفع الرصيد المتبقي البالغ 70% قبل الشحن.
3. مهلة التسليم
س: ما هو الوقت المقدر للتسليم؟
ج: يتم شحن الطرازات القياسية خلال 20 إلى 30 يومًا من استلام الدفعة المقدمة. أما الآلات المصممة حسب الطلب أو ذات التكوينات الخاصة فتستغرق من 30 إلى 60 يومًا حسب المواصفات.
