The CK6180 Flat Bed CNC Lathe Machine is a heavy-duty CNC turning solution with an 800 mm swing over bed, 3000 mm distance between centers, 105 mm spindle bore, and 11 kW main motor. Designed for large shafts, cylinders, flanges, rollers, and other heavy industrial components.
Product Specifications
- Swing Over Bed: 800 mm
- Distance Between Centers: 3000 mm
- Spindle Bore: 105 mm
- Spindle Motor: 11 kW
- CNC Control System: GSK
- Tool post: Vertical four station tool post
Product Overview
The CK6180 Flat Bed CNC Lathe Machine (30″x120″ / 800x3000mm) is engineered for heavy-duty turning of large-diameter shafts, cylinders, flanges, rollers, discs, and other industrial components. Built with a rigid flat bed structure and high-capacity spindle assembly, it provides strong rigidity, stable cutting performance, and reliable CNC machining for demanding metalworking applications.
This flat bed CNC lathe machine combines an 800 mm swing over bed, 3000 mm distance between centers, and 105 mm spindle bore to provide substantial machining capacity for large and long workpieces. GSK, FANUC, and Siemens CNC control options provide flexibility for different production requirements.
Φ 800 mm (30″)
3000 mm (120″)
Φ 105 mm (4.13″)
GSK / FANUC / Siemens
Technical Specifications
| Specification Item | Metric Unit | Imperial Unit |
|---|---|---|
| Model | CK6180 | CK6180 |
| Swing Over Bed | Φ 800 mm | 30″ |
| Distance Between Centers | 3000 mm | 120″ |
| Spindle Bore Diameter | Φ 105 mm | 4.13″ |
| Spindle Speed Range | 30–835 rpm | 30–835 rpm |
| Main Motor Power | 11 kW | Approx. 15 HP |
| Chuck Type | Φ 400 mm Manual 3-Jaw Chuck | Φ 15.75″ Manual Chuck |
| Tool Post Type | Vertical 4-Station Tool Post | 6/8 Station Optional |

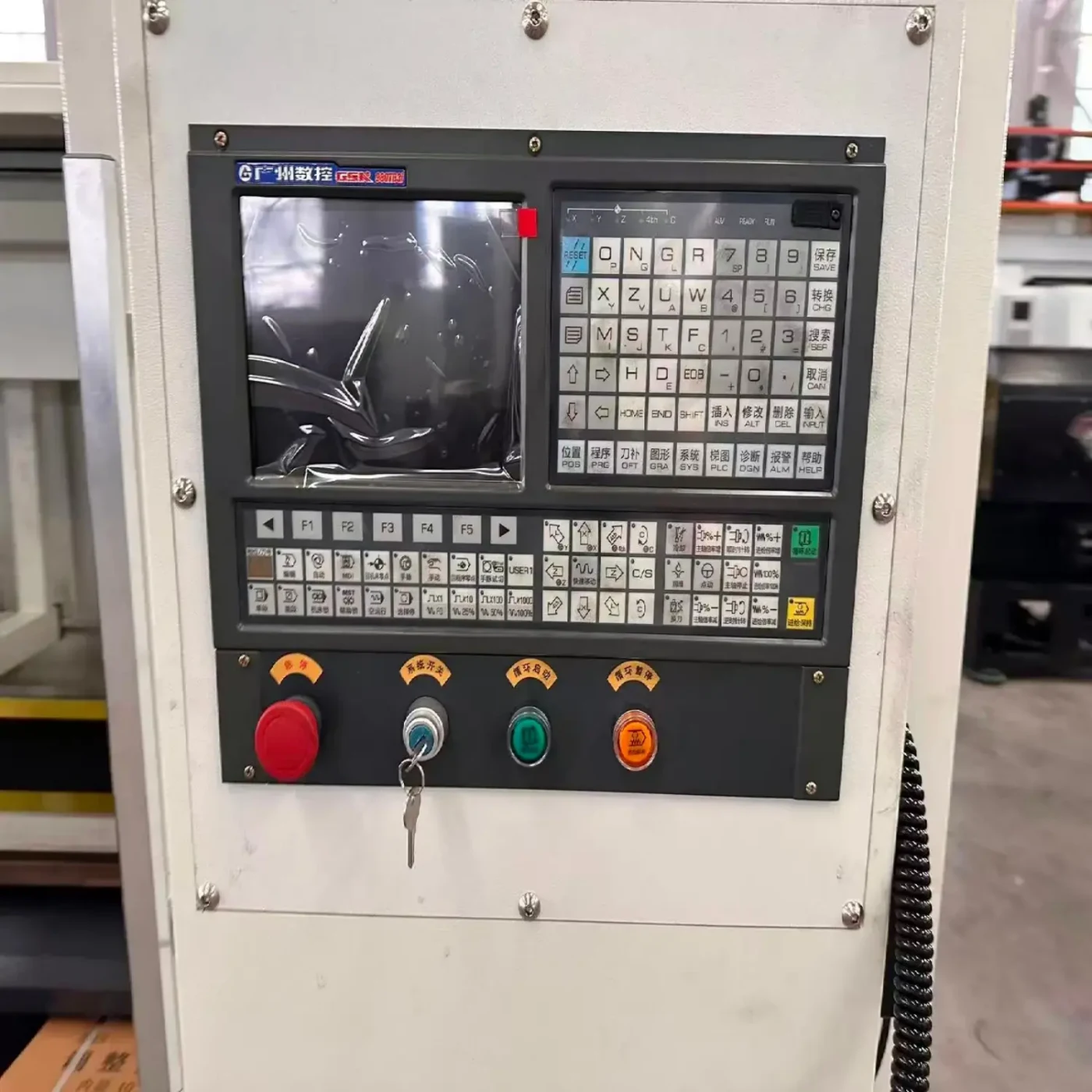

| CNC Control System | GSK | FANUC / Siemens Optional |
Structural Features & Premium Components
- Heavy-Duty Flat Bed Structure: The CK6180 adopts a rigid flat bed structure with strong vibration damping capability, providing stable cutting performance when machining large-diameter and heavy industrial workpieces.
- Large Turning Capacity: With an 800 mm swing over bed and 3000 mm distance between centers, the machine is designed for machining large shafts, cylinders, flanges, rollers, discs, and other oversized rotating components.
- High-Capacity Spindle Assembly: The 105 mm spindle bore provides useful capacity for larger shafts, tubular components, sleeves, and other workpieces requiring through-spindle machining.
- Manual Three-Jaw Chuck: The standard 400 mm manual three-jaw chuck provides reliable workholding for general industrial turning operations. Hydraulic chuck solutions are available as optional equipment.

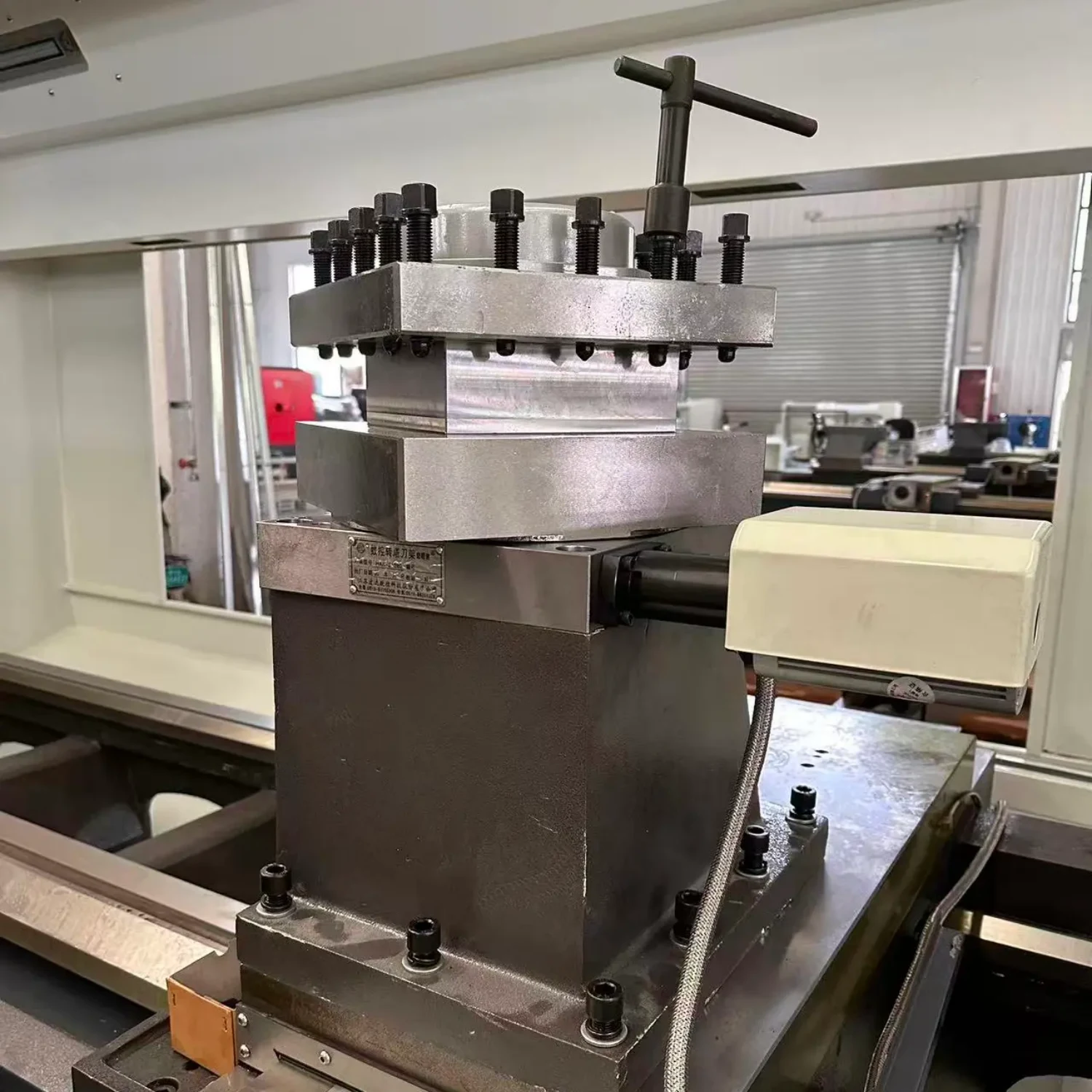

- Flexible Tool Post Configuration: The vertical 4-station tool post is the standard configuration, with 6-station and 8-station electric tool posts available for applications requiring additional tooling flexibility.
- Centralized Automatic Lubrication System: The centralized lubrication system supplies lubricant to guideways and moving components to reduce wear and support long-term machine reliability.
For general information about machine guarding and safe operation, see the
OSHA Machine Guarding Guide.
Typical Machining Applications
Large Shaft Machining
Suitable for machining long shafts, transmission shafts, rollers, sleeves, and other large cylindrical components requiring stable heavy-duty turning.
Heavy Equipment Manufacturing
Ideal for producing components used in construction machinery, industrial equipment, heavy mechanical systems, and large machine assemblies.
Oil & Energy Components
Suitable for turning large flanges, sleeves, cylindrical components, and other compatible parts used in energy and industrial fluid equipment.
General Machine Shops
A flexible CNC turning solution for customized machining, repair work, and medium-volume production involving large and heavy workpieces.
Factory Quality Assurance & Technical Support
- Laser Interferometer Calibration: Machine positioning and geometric accuracy can be checked using laser interferometer calibration before shipment.
- Sample Trial Cutting: Trial machining can be performed according to agreed inspection requirements before delivery.
- 72-Hour Continuous Running Test: The current CK6180 product specification states a 72-hour continuous operation test before dispatch.
- Inspection Documentation: Full inspection reports and pre-shipment videos can be provided before dispatch.
- Direct Manufacturer Support: ZCIT provides technical consultation, machine configuration recommendations, export support, and after-sales technical assistance.
Related CNC Lathe Machines
Explore our complete
CNC Lathe Machine Product Range
for more CNC turning solutions.
For other flat bed configurations, visit our
CNC Flat Bed Lathe Machines
category.
Need Detailed Quotation or Workpiece Evaluation?
Send us your workpiece technical drawings, diameter, machining length, material, weight, or processing requirements. Our engineering team will provide a tailored machining solution and recommend the appropriate CK6180 configuration.
FAQ
1. Quality Control & Inspection
Q: How do you ensure machine precision before shipment?
A: Every machine undergoes laser interferometer calibration, sample trial cutting, and a 72-hour continuous operation test. Full inspection reports and pre-shipment videos are provided before dispatch.
2. Payment Terms
Q: What are your accepted payment terms?
A: We accept T/T (Telegraphic Transfer). Standard payment terms are a 30% deposit upon order confirmation, with the remaining 70% balance due prior to shipment.
3. Lead Time & Delivery
Q: What is the estimated lead time for delivery?
A: Standard models are shipped within 20 to 30 days after deposit receipt. Customized machines or special configurations take 30 to 60 days depending on specs.
