نظرة عامة على المنتج

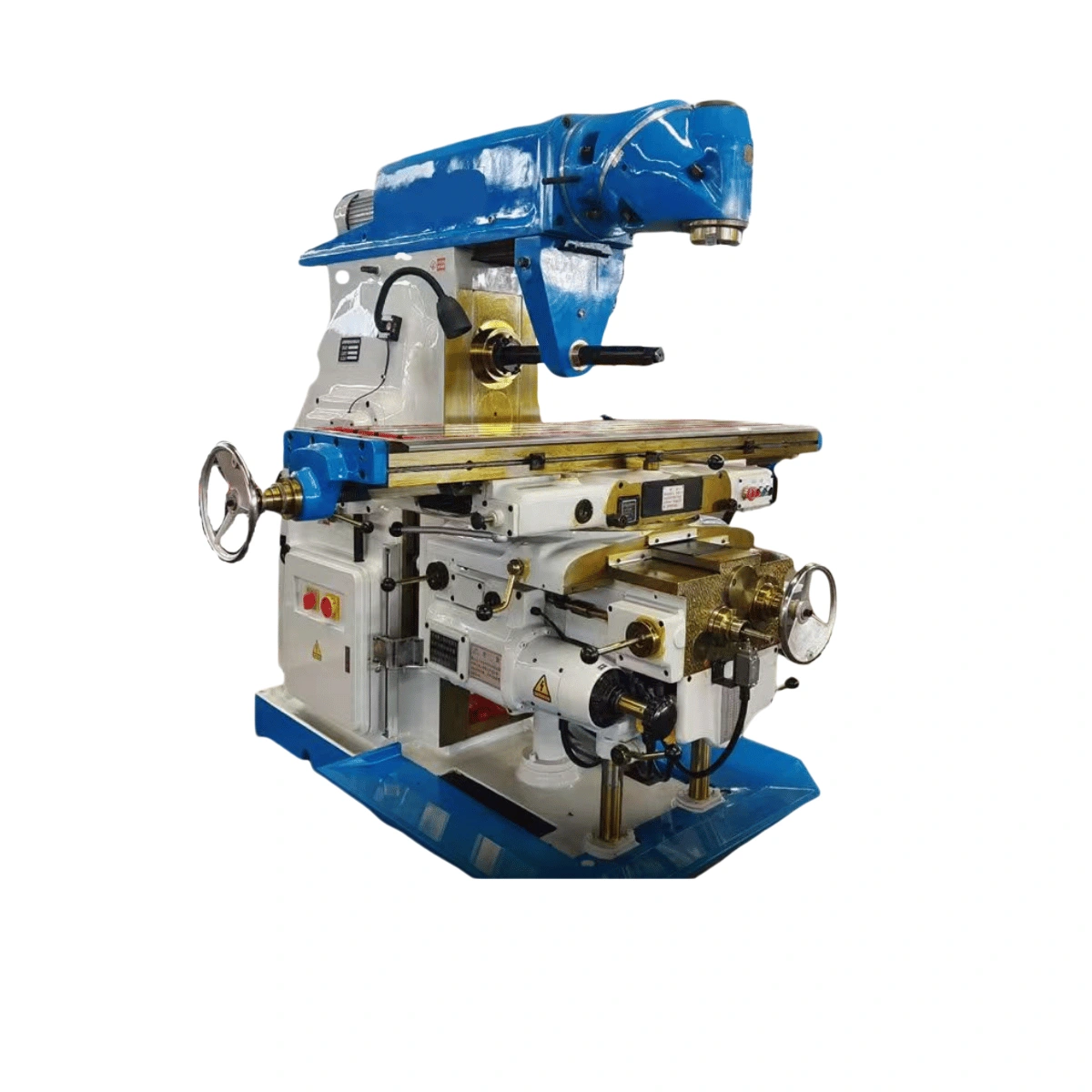

ال X6240 Heavy-Duty Horizontal Milling Machine is a robust universal knee-type milling machine designed for high-efficiency metal machining and stable heavy cutting. With a 1700 × 400 mm working table, ISO50 (7:24) spindle taper, and powerful horizontal spindle configuration, it provides strong material removal capability for demanding industrial milling applications.

The X6240 combines horizontal and vertical milling capability in one machine. The horizontal spindle is powered by an 11 kW motor, while the vertical milling head uses a 4 kW motor. This configuration allows the machine to handle slot milling, side milling, surface milling, and other heavy-duty machining operations.

With a large working table, motorized X/Y/Z feed, ±45° table rotation, and a 360° vertical milling head rotation range, this horizontal milling machine provides flexible machining capability for structural parts, machine components, tooling, and large metal workpieces.

• Heavy-Duty Horizontal Spindle: The 11 kW horizontal spindle motor provides strong cutting power and high material removal capability for demanding milling operations.
• Vertical & Horizontal Milling: The X6240 combines horizontal and vertical milling functions, allowing one machine to handle different cutting directions and machining requirements.
• Large 1700 × 400 mm Working Table: The extended table provides a large working surface for long plates, structural components, machine parts, and tooling.
• ISO50 Spindle Taper: The 7:24 ISO50 spindle configuration is suitable for heavy-duty milling tooling and applications requiring strong spindle support.
• 900 mm Longitudinal Travel: The standard longitudinal travel provides a useful machining range for large and elongated workpieces.
• ±45° Table Rotation: The worktable can rotate ±45° to support angled milling operations and flexible workpiece positioning.
• 360° Vertical Milling Head Rotation: The vertical milling head provides 360° rotation for flexible machining orientation.
• Motorized X/Y/Z Feed: Automatic X/Y/Z axis feeding is included, reducing manual operator effort during continuous machining operations.

• Heavy-Duty Knee-Type Structure: The rigid machine structure provides stable support for large workpieces and helps maintain cutting stability during heavy milling operations.
• Powerful Horizontal Spindle: The 11 kW horizontal spindle motor is designed for high material removal and demanding slot and side milling operations.
• ISO50 Spindle System: The 7:24 ISO50 spindle taper provides strong tooling support for heavy-duty milling applications.
• Dual Spindle Configuration: The machine combines a powerful horizontal spindle with a vertical milling head for greater machining flexibility.
• Rotary Worktable: The worktable can rotate ±45°, allowing the operator to machine angled features and workpieces requiring non-standard orientations.
• Automatic X/Y/Z Feed: Automatic axis feeding is included for controlled and efficient continuous machining.
• Large Worktable: The 1700 × 400 mm table provides sufficient machining space for long and large industrial components.

For general technical reference on milling operations and tooling, see the

Haas Mill Operator’s Manual
,
which provides general information related to milling machine operation and tooling.

For a rotary-head universal milling machine with a 1370 × 320 mm table, see the

X6232 Rotary Head Milling Machine
.

For a larger universal milling machine with an 1800 × 400 mm table, see the

ماكينة التفريز العالمية XM1460
.

For a heavy-duty vertical milling machine with a 1700 × 400 mm table, see the

ماكينة التفريز العمودية X5040
.

معدات مجانية

• Rotary worktable
• Automatic X-axis feeding
• Automatic Y-axis feeding
• Automatic Z-axis feeding

ملحقات اختيارية

• Digital Readout (DRO)
• 125 mm dividing head
• 200 mm precision parallel vice
• Approximately 300 mm separate rotary table
• مضخة زيت إلكترونية
• طقم التثبيت

Final accessory configuration should be confirmed according to the quotation and customer requirements.

The listed X6240 configuration supports 3-phase 380V, 50Hz و 3-phase 220V, 60Hz power supply options.

Voltage, frequency, motor configuration, spindle configuration, accessories, and final machine specifications should be confirmed with ZCIT before order placement according to the customer’s destination country and electrical requirements.

• الفحص قبل الشحن: Machine operation, major functions, and key specifications are checked before shipment.
• التحقق من عمليات التشغيل الآلي: Trial machining and machine operation can be verified according to the agreed inspection requirements before delivery.
• الدعم الفني: تقدم شركة ZCIT المساعدة التقنية، ودعم قطع الغيار، والخدمة عبر الإنترنت بعد التسليم.

Q: What type of machine is the X6240?
A: The X6240 is a heavy-duty horizontal milling machine with both horizontal and vertical milling capability.

س: ما هو حجم طاولة العمل؟
A: The standard working table measures 1700 × 400 mm, with a 2000 × 400 mm table available as an option.

Q: What spindle taper does the X6240 use?
A: The vertical and horizontal spindle configurations use a 7:24 ISO50 taper.

Q: What is the horizontal spindle motor power?
A: The horizontal spindle is equipped with an 11 kW main motor.

Q: Can the X6240 perform vertical milling?
A: Yes. The machine includes a vertical milling head with a 4 kW motor and 360° rotation capability.

Q: Can the table rotate?
A: Yes. The worktable can rotate ±45° for angled machining operations.

Q: Is the X6240 a CNC milling machine?
A: No. The X6240 is a conventional universal milling machine with automatic X/Y/Z axis feeding rather than a CNC-controlled milling machine.

Need a Heavy-Duty Horizontal Milling Machine?

Send us your workpiece dimensions, material, drawings, or machining requirements. Our team can help you confirm the suitable spindle configuration, table size, tooling, power supply, and milling solution.
