The ZCIT VMC1580 is a powerful vertical machining center featuring 1500×800×700 mm X/Y/Z travel, a 1600×800 mm worktable, BT40 spindle, 10,000 rpm maximum spindle speed, 24T ATC, and FANUC CNC control for precision and efficient metal machining.
مواصفات المنتج
- Table size: 1600×800mm
- Max. table load: 1500kg
- X axis travel: 1500mm
- Y axis travel: 800mm
- Z axis travel: 700mm
- 4 محاور، 5 محاور: متوفرة

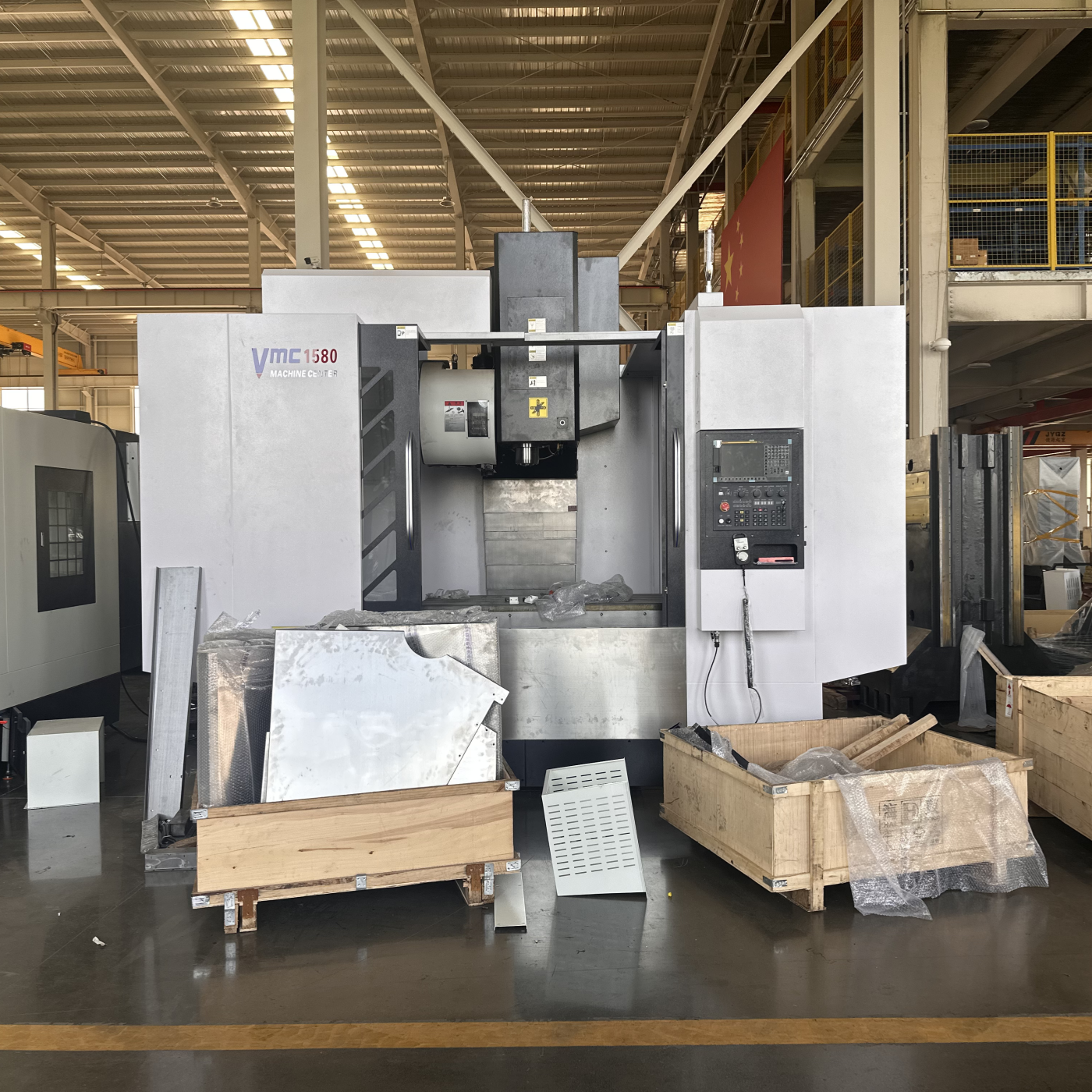

نظرة عامة على المنتج وأهم مميزاته

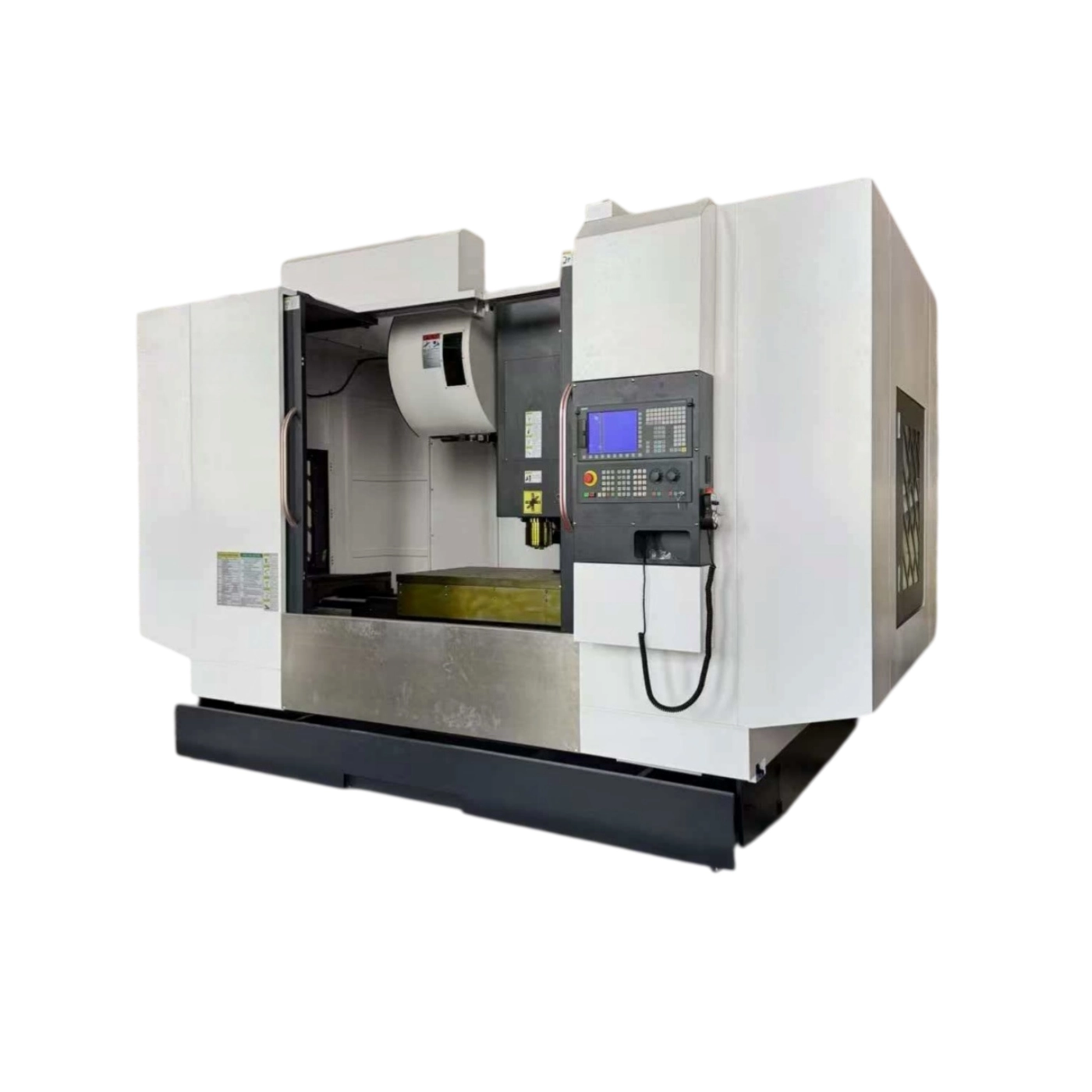

ال VMC1580 vertical machining center is a powerful 3-axis CNC machining center designed for precision milling, drilling, boring, tapping, and general metal machining applications. With 1500 mm X-axis travel, 800 mm Y-axis travel, and 700 mm Z-axis travel, it provides a large machining envelope for medium and large workpieces and multi-operation production.
The VMC1580 is equipped with a 1600 × 800 mm worktable supporting a maximum load of 1500 kg, ، أ مغزل BT40, and a standard 24-tool disc-type automatic tool changer. The spindle reaches up to 10,000 rpm and is equipped with a 15–18.5 kW spindle motor.
The machine features RGH55 roller-type guideways on the X and Z axes, a widened Y-axis base with four guideways, automatic lubrication, three-axis ball screw pre-tensioning, rigid tapping, and a FANUC CNC system. With 24 m/min X/Y rapid feed rates و 18 m/min Z-axis rapid feed rate, the VMC1580 is configured for stable and efficient CNC machining.
المواصفات الفنية
| نموذج | VMC1580 |
| Worktable Size | 1600 × 800 mm |
| X/Y/Z Axis Travel | 1500 / 800 / 700 mm |
| Distance from Spindle Nose to Worktable | 155–855 mm |
| Distance from Spindle Center to Column | 855 mm |
| Maximum Worktable Load Capacity | 1500 kg |
| Worktable T-Slot | 5 × 18 mm |
| X/Y/Z Axis Rapid Feed Rate | 24 / 24 / 18 m/min |
| X/Y/Z Guideway Specification | RGH55; X/Z roller type; widened Y-axis base with 4 guideways |
| دقة تحديد المواقع | ±0.006 mm |
| Repeat Positioning Accuracy | ±0.004 mm |
| Minimum Input Resolution | ±0.001 mm |
| Maximum Spindle Speed | 10,000 rpm |
| مخروط المغزل | BT40 |
| Disc Type ATC Tool Magazine | 24T |
| CNC Controller | فانوك |
| طاقة محرك المغزل | 15–18.5 kW |
| Machine Net Weight | 10,000 kg |
| Overall Machine Dimension | 4000 × 3100 × 3300 mm |
CNC Control System
ال VMC1580 vertical machining center is equipped with a FANUC CNC control system for coordinated 3-axis machining operations. The FANUC configuration supports milling, drilling, boring, tapping, and other CNC machining processes for demanding industrial production.
الخصائص الهيكلية ووظائف التشغيل الآلي
- 1500 × 800 × 700 mm X/Y/Z-axis travel provides a large machining envelope for medium and large workpieces.
- 1600 × 800 mm worktable supports workpieces up to 1500 kg, providing substantial loading capacity for industrial CNC machining.
- مغزل BT40 provides a widely used tool interface for milling, drilling, boring, tapping, and general machining applications.
- 10,000 rpm maximum spindle speed supports efficient machining across a wide range of metal components.
- 15–18.5 kW spindle motor provides substantial power for different machining requirements.
- RGH55 roller-type guideways are used on the X and Z axes for rigid and stable machine movement.
- Widened Y-axis base with four guideways provides additional support for stable Y-axis movement.
- 24 / 24 / 18 m/min rapid feed rates help reduce positioning and non-cutting time during machining cycles.
- 24T disc-type automatic tool changer supports automatic tool changes for multi-operation machining.
- ±0.006 mm positioning accuracy و ±0.004 mm repeat positioning accuracy support consistent machining performance.
- نظام التشحيم التلقائي provides scheduled lubrication for critical moving components.
- Three-axis ball screw pre-tension device helps improve ball screw stability and positioning performance.
- Rigid tapping function supports accurate internal thread machining during CNC operations.
- High-power chip flushing system with dual high-pressure coolant pumps assists with chip removal during machining.
- Spindle air curtain dust-proof protection helps protect the spindle area during machining operations.
- Z-axis nitrogen counterbalance unit supports stable Z-axis movement.
- Standard reserved interface for 4th-axis installation allows future integration of additional rotary machining equipment.
تطبيقات التشغيل الآلي النموذجية
Large Component Machining
Suitable for machining medium and large industrial components requiring a large working envelope and high table load capacity.
الطحن والحفر
The BT40 spindle supports face milling, end milling, drilling, boring, tapping, and other common CNC machining operations.
Machinery Components
Suitable for machining machine bases, housings, brackets, plates, fixtures, and other industrial components.
Multi-operation Production
The 24-tool automatic tool changer supports efficient multi-operation machining and production workflows.
المعدات القياسية، وضمان الجودة، والدعم الفني
Standard equipment includes:
- FANUC CNC system
- Cutting coolant system
- نظام التشحيم التلقائي
- Cutting air blowing device
- Explosion-proof working lamp
- Three-color warning light
- Leveling bolts and pads
- Electrical cabinet radiator
- 3-axis ball screw pre-tension device
- Program storage function
- RS232 communication interface
- Manual pulse generator simulation function
- Rear water tank with double-layer filter screen
- Spindle air curtain dust-proof protection
- Internal machine cleaning unit with high-pressure air blow gun and water jet gun
- High-power chip flushing system with dual high-pressure coolant pumps

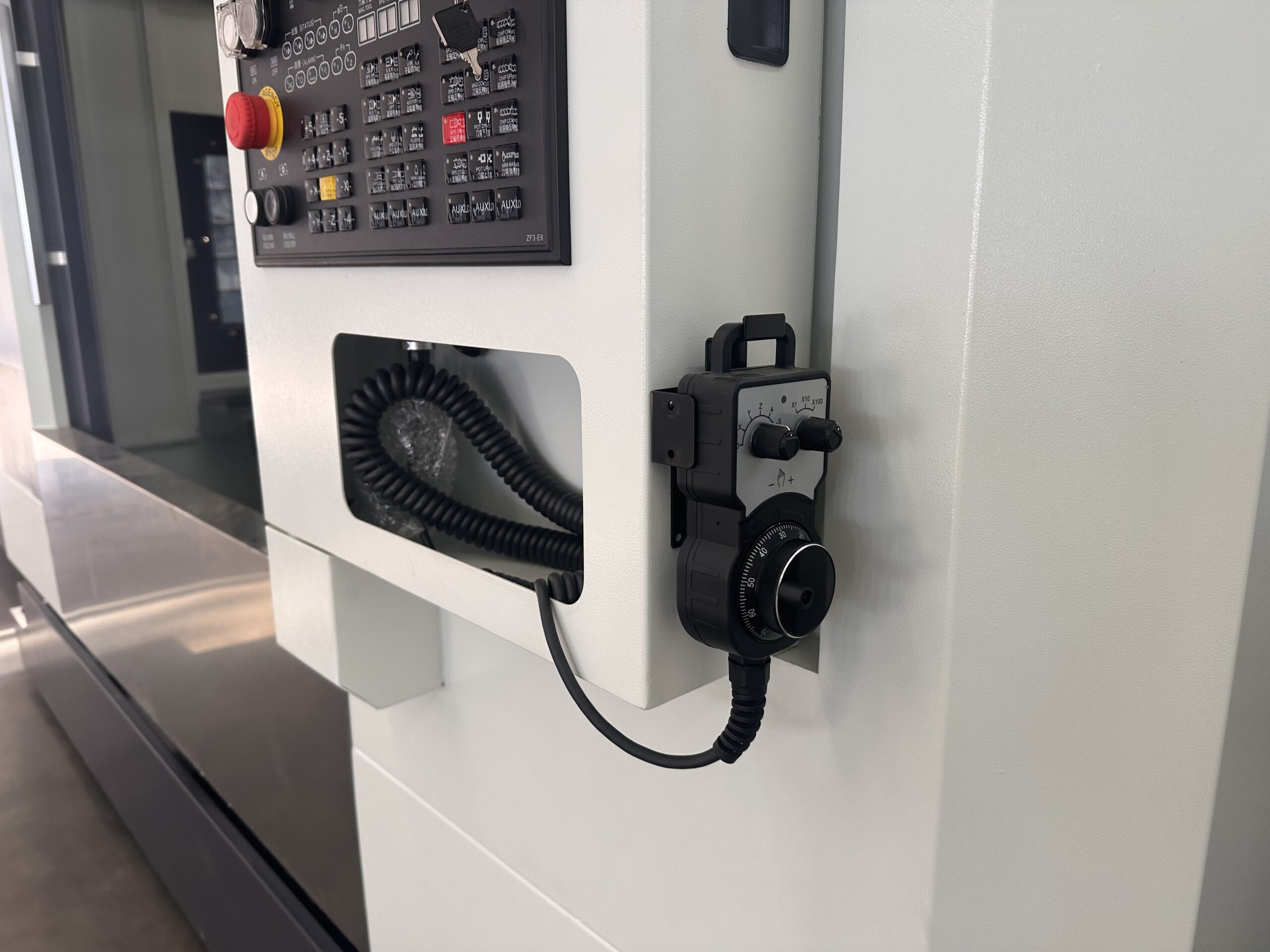

- Manual pulse generator / handwheel
- Transformer
- 3-axis telescopic way covers
- Outer sheet metal enclosure
- Rigid tapping function
- شهادة فحص الدقة
- Electrical instruction manual
- Machine operation manual
- Programming operation manual
- Air reservoir for preventing tool jamming
- Coolant oil-water separator
- Z-axis nitrogen counterbalance unit
- Schneider Electric electrical components (France)
- 10,000 rpm maximum spindle speed
- Timing belt spindle drive
- BT40 spindle taper
- Standard reserved interface for 4th-axis installation
- Taiwan-made 24-station disc-type ATC tool magazine
ZCIT provides technical support and pre-shipment quality control for vertical machining centers. For CNC system selection, machine configuration, tooling, production lead time, shipping, and technical requirements, contact ZCIT for a suitable vertical machining center solution.
مراكز التصنيع باستخدام الحاسب الآلي ذات الصلة
استكشف المزيد مراكز التصنيع باستخدام الحاسب الآلي from ZCIT, or compare the VMC1580 with other vertical machining center configurations.
- مركز التشغيل العمودي VMC855 – compact vertical machining center with BT40 spindle and 24-tool ATC.
- VMC1160 Vertical Machining Center – 1100 × 600 × 600 mm travel with BT40 spindle and 24-tool ATC.
- مراكز تصنيع ZCIT CNC – استكشاف تكوينات إضافية لمراكز التشغيل العمودية لأحجام قطع العمل المختلفة ومتطلبات الإنتاج.
هل تبحث عن مركز تشغيل عمودي قوي؟
The ZCIT VMC1580 combines 1500 × 800 × 700 mm axis travel, a 1500 kg table load, BT40 spindle, 10,000 rpm maximum speed, 24T ATC, and FANUC CNC control for efficient industrial metal machining.
