Introduce

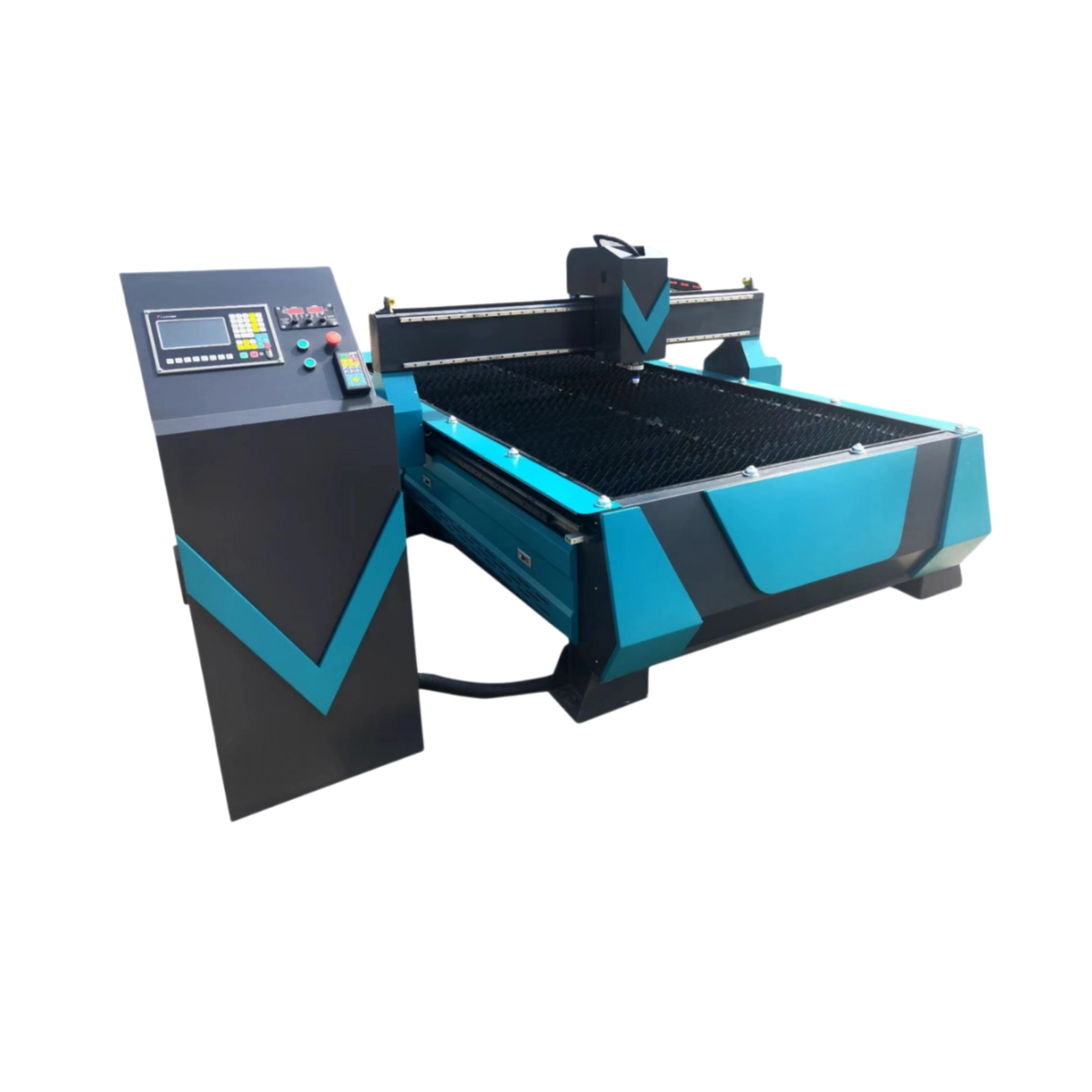

The PC1530 Plasma Cutting Machine is a high-efficiency CNC plasma cutting system designed for cutting various metal plates, including carbon steel, stainless steel, aluminum, copper, and galvanized steel.
With a standard 1500×3000mm working area, this machine is ideal for sheet metal fabrication, steel structure manufacturing, and industrial metal processing. The PC1530 combines stable structure design, intelligent control, and reliable plasma cutting performance to deliver smooth cuts and high productivity at a competitive cost.
Condition
-100% New
-Origin CHINA
Specification
| Model | PC1530 120A Plasma cutting machine |
| X,Y working area | 1500*3000mm |
| Z working area | 150mm |
| Packing dimension | 2280mm*3950mm*1850mm |
| Lathe bed | Very thick steel structure |
| Machine Power | 8.5kw |
| Working voltage | 380V three phase 60hz |
| Reposition precision | 0.02mm |
| Processing precision | 0.1mm |
| Maximum cutting speed | 12000mm/min |
| Torch Height control mode | Automatic |
| Cutting thickness | Max25mm carbon steel |
| Plasma power supply | 120AA Plasma source |
| Control system | STARfire |
| Motors | Stepper motor |
| Software | Starcam |
| Weight | 1400KG |
| Plasma Air Pressure | Max.0.8Mpa |
| Working Temperature | -10°C-60°C. Relative Humidity, 0-95%. |
| LCD Display Dimension | 7 Inches |
| Optional | 63A, 120A,160A,200A |
