Introduce

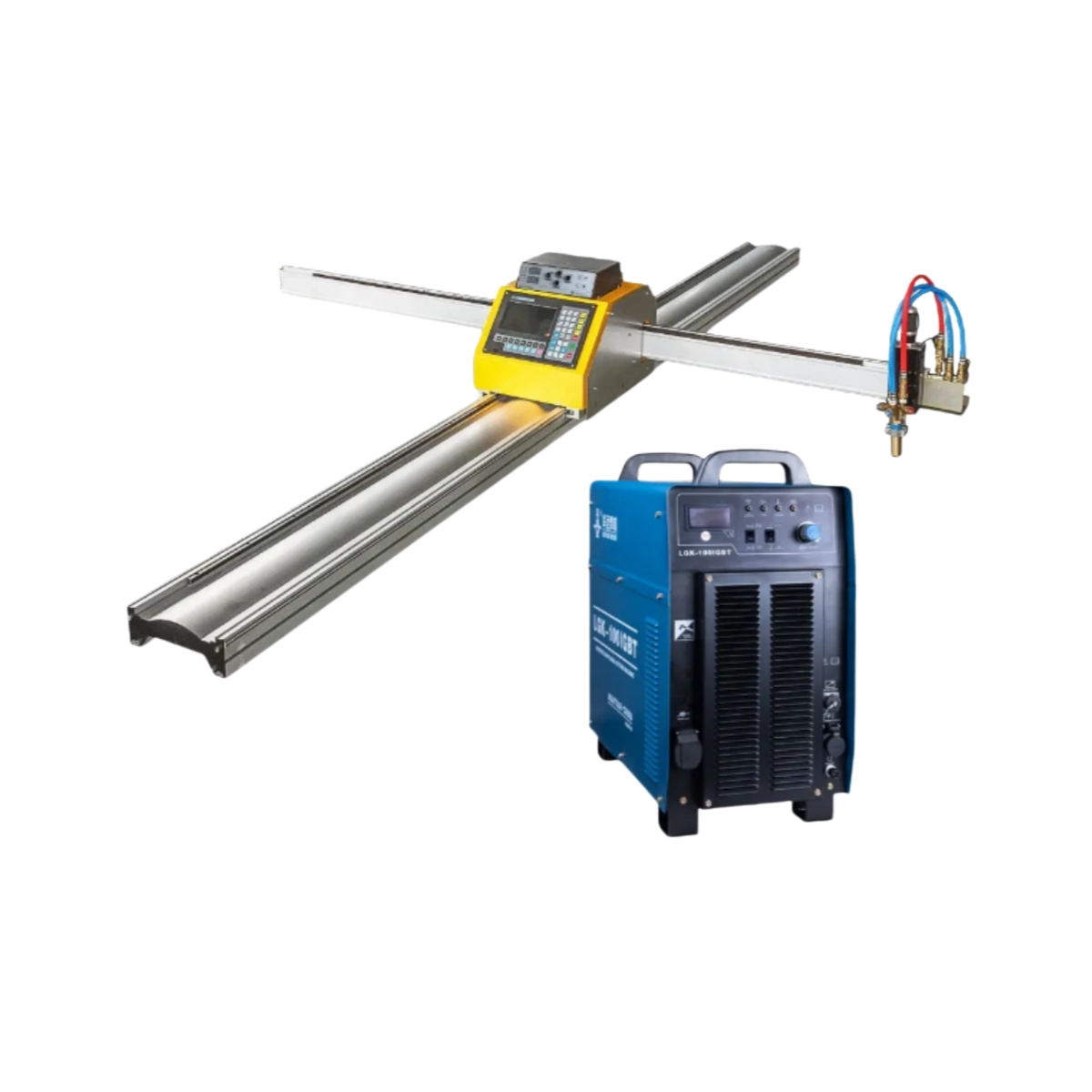

The P1530 Portable Plasma Cutting Machine (200A) is a compact and cost-effective CNC cutting solution designed for small to medium-sized metal processing workshops.
With a standard 1500×3000mm working area, this machine supports both plasma cutting and flame cutting (equipped with flame torch head), making it suitable for various metal plates including carbon steel, stainless steel, aluminum, copper, and galvanized steel.
Its lightweight portable structure allows easy installation and relocation, making it ideal for factories with limited space or flexible production needs.
Features
1. Portable body
2. High sensitivity arc voltage adjustment for more accurate cutting and simpler use
3. Shanghai Jiao Tong University Fangling Control System+Startcam nesting software
4. Anti-wear circular rail+small gear transmission
5. Step motor
6. Genuine Lei Sai drivers
7. All bodies are treated with baking paint
8. 8GB USB flash drive+10 sets of consumables
9. Huayuan Power Supply
10. Ultra high anti-wear limit switches+all high flexibility cables
11. Flame gun head
12. Automatic correction function of software
13. Years warranty (excluding gun head and consumables)
Specification
| Model | 1530 200A portable plasma cutting machine |
| X,Y working area | 1500*3000mm |
| Z working area | 150mm |
| Packing dimension | 1CBM |
| Machine Power | 8.5kw |
| Working voltage | 380V phase 50hz /60hz |
| Reposition precision | 0.02mm |
| Processing precision | 0.1mm |
| Maximum cutting speed | 300mm/s |
| Torch Height control mode | SJTU-cnc control system |
| Cutting thickness | Max 40mm mild steel, |
| Plasma power supply | LGK200A Plasma source |
| Control system | SJTU-CNC |
| Motors | Stepper motor |
| Software | STARCAM |
| Plasma Air Pressure | Max.0.8Mpa |
| Working Temperature | -10°C-60°C. Relative Humidity, 0-95%. |
| Flame cutting | 150mm |
| LCD Display Dimension | 7.0Inches |
Condition
Optional
63A, 120A, 160A, 200A,300A
