Introduce

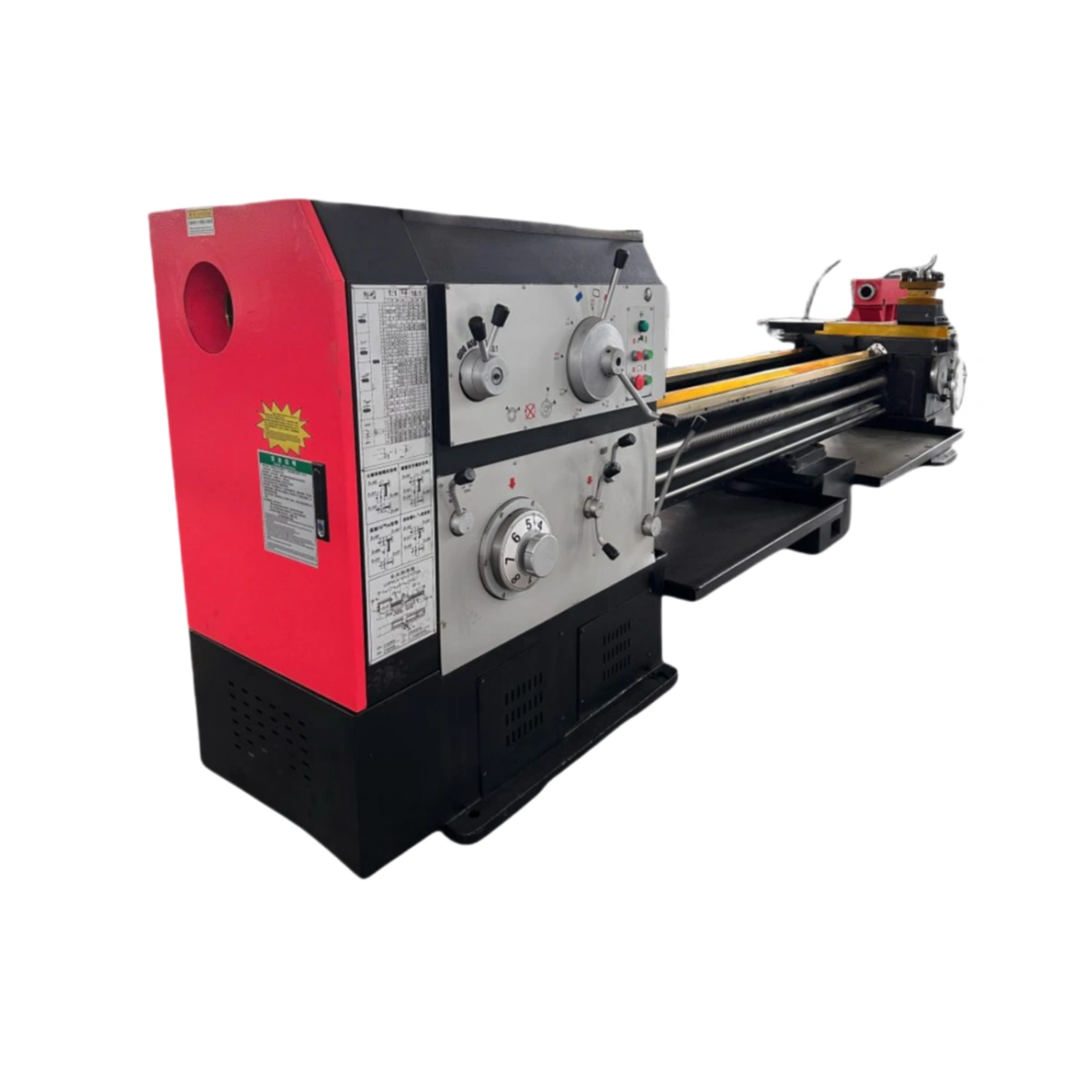

CW6163 is a universal lathe suitable for high-speed steel and hard alloy steel cutting tools to perform processes such as turning outer circles, end faces, grooves, cutting, boring, turning inner cones, and turning threads on different materials of shaft parts, cylindrical and disc-shaped parts.
The bed body has high stiffness, and the slide, knife rest, and bed saddle can move quickly. This machine tool has the characteristics of strong rigidity, high efficiency, safety and reliability, easy operation, and beautiful appearance.
Main Parameter
-Load capacity 3 Tons
-Rail width 550mm
-Diameter 630mm
-Length 750mm/1250mm/1750mm/2750mm/3750mm
-Spindle hole diameter 105mm
Condition
-100% New
-Origin CHINA
Specification
| engine lathe | CW6163 | CW6180 | CW61100 |
| Saddle lathe | CW6263 | CW6280 | CW62100 |
| Swing over bed | 630mm | 800mm | 1000mm |
| Maximum turning diameter inside the saddle | 800mm | 1000mm | 1200mm |
| Maximum turning diameter on the transverse drag board | 350mm | 480mm | 680mm |
| Two top distances | 1.5m 2m 3m 4m 5m 6m 8m 10m 12m | ||
| Bed rail width | 550mm | ||
| Spindle aperture | 105mm | ||
| spindle taper hole | ∮120mm Taper 1:16 | ||
| Main spindle speed range | 7.5-1000r/min | 5.4-720r/min | |
| Metric thread mm | 1-240mm (50) | ||
| British Thread TPI | 1-14 (26) | ||
| Modular thread mm | 0.5-120mm (53) | ||
| Diameter pitch thread DP | 1-28 (24) | ||
| Longitudinal feed rate series and range | 64 kinds 0.05-24.3 mm/r | ||
| Range 1:1 | 0.1-1.52 mm/r | ||
| Scope 16:1 | 1.6-24.3 mm/r | ||
| Micro feed range with exchange gear | 0.05-0.912 mm/r | ||
| The ratio of lateral feed rate to longitudinal feed rate | 1/2 | ||
| Bed saddle moves quickly | 4000mm/min | ||
| Cutting tool section | 32*32mm | ||
| Maximum lateral travel of skateboard | 315mm | 420mm | |
| Maximum travel of small knife holder | 200mm | ||
| Diameter of tailstock sleeve | 100mm | ||
| Tail socket taper | Mors. 6# | ||
| Maximum travel of tailstock sleeve | 240mm | ||
| main motor | 11kw | ||
| Fast feed motor | 1.1kw | ||
