The CK6150 Flat Bed CNC Lathe Machine is a medium-size CNC turning solution with 500 mm swing over bed, 1500 mm distance between centers, 82 mm standard spindle bore, and 7.5 kW main motor. Designed for shafts, sleeves, flanges, and other medium-sized industrial components.
Product Specifications
- Swing Over Bed: 500 mm
- Distance Between Centers: 1500 mm
- Spindle Bore: 105 mm
- Spindle Motor: 11 kW
- CNC Control System: GSK
- Tool post: Vertical four station tool post
Product Overview
The CK6150 Flat Bed CNC Lathe Machine (20″x60″ / 500x1500mm) is engineered for high-precision turning of shafts, discs, sleeves, flanges, and other medium-sized rotation components. Built with a high-rigidity heavy-duty cast iron structure and precision spindle assembly, it provides excellent stability, reliable cutting performance, and consistent machining accuracy for demanding metalworking applications.
This flat bed CNC lathe machine combines a 500 mm swing over bed, 1500 mm machining length, 82 mm standard spindle bore, and 7.5 kW main motor to provide a practical CNC turning solution for general manufacturing, repair workshops, automotive components, and industrial parts production.
Φ 500 mm (20″)
1500 mm (60″)
Φ 82 mm (Optional 105 mm)

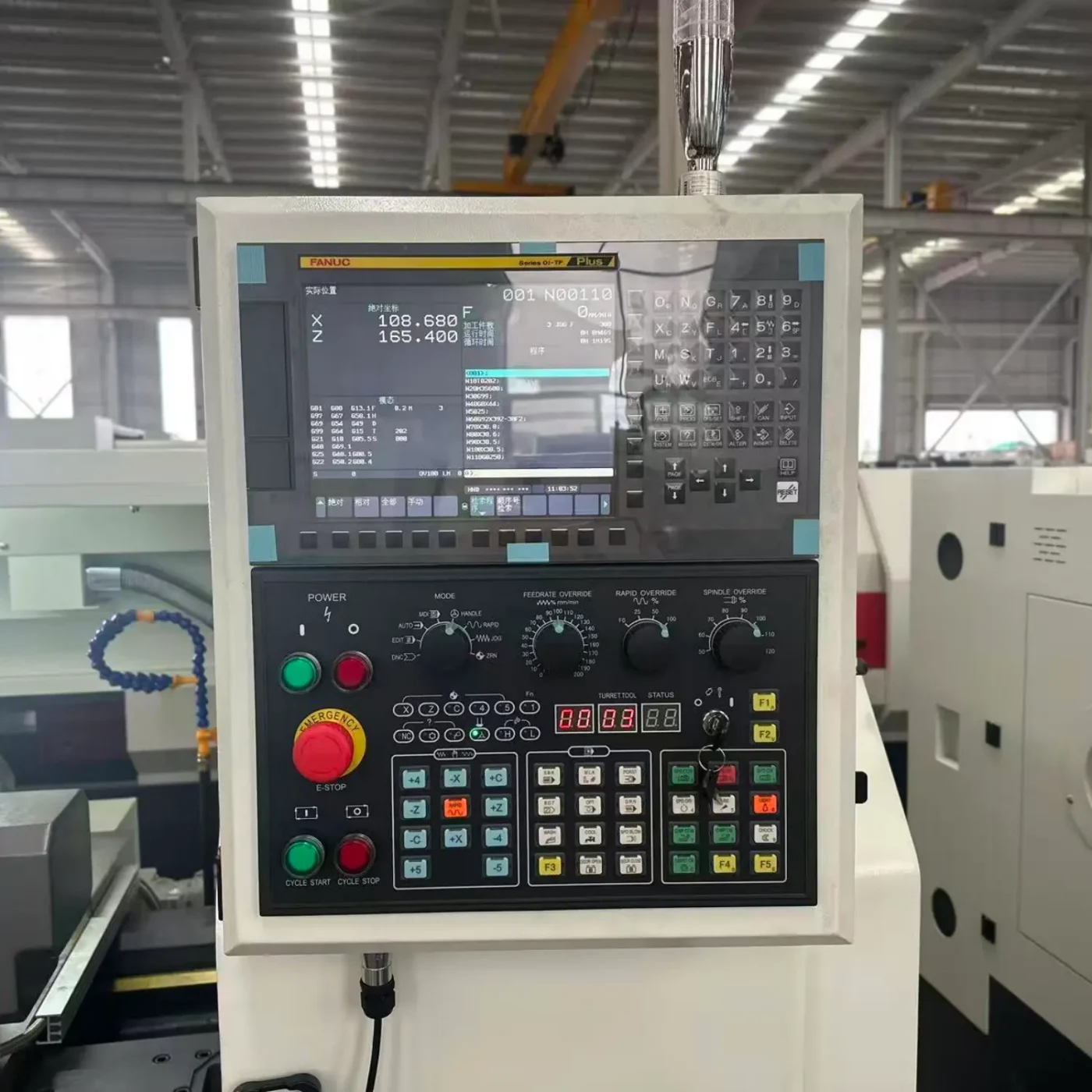

GSK / FANUC / Siemens
Technical Specifications
| Specification Item | Metric Unit | Imperial Unit |
|---|---|---|
| Max. Swing Over Bed | Φ 500 mm | 20″ |
| Max. Swing Over Carriage | Φ 280 mm | 11″ |
| Max. Length of Workpiece | 1500 mm | 60″ |
| Spindle Bore Diameter | Φ 82 mm (Opt. 105 mm) | 3.23″ (Opt. 4.13″) |
| Spindle Speed Range | 150 – 1800 RPM | 150 – 1800 RPM |
| Main Motor Power | 7.5 kW | 10 HP |

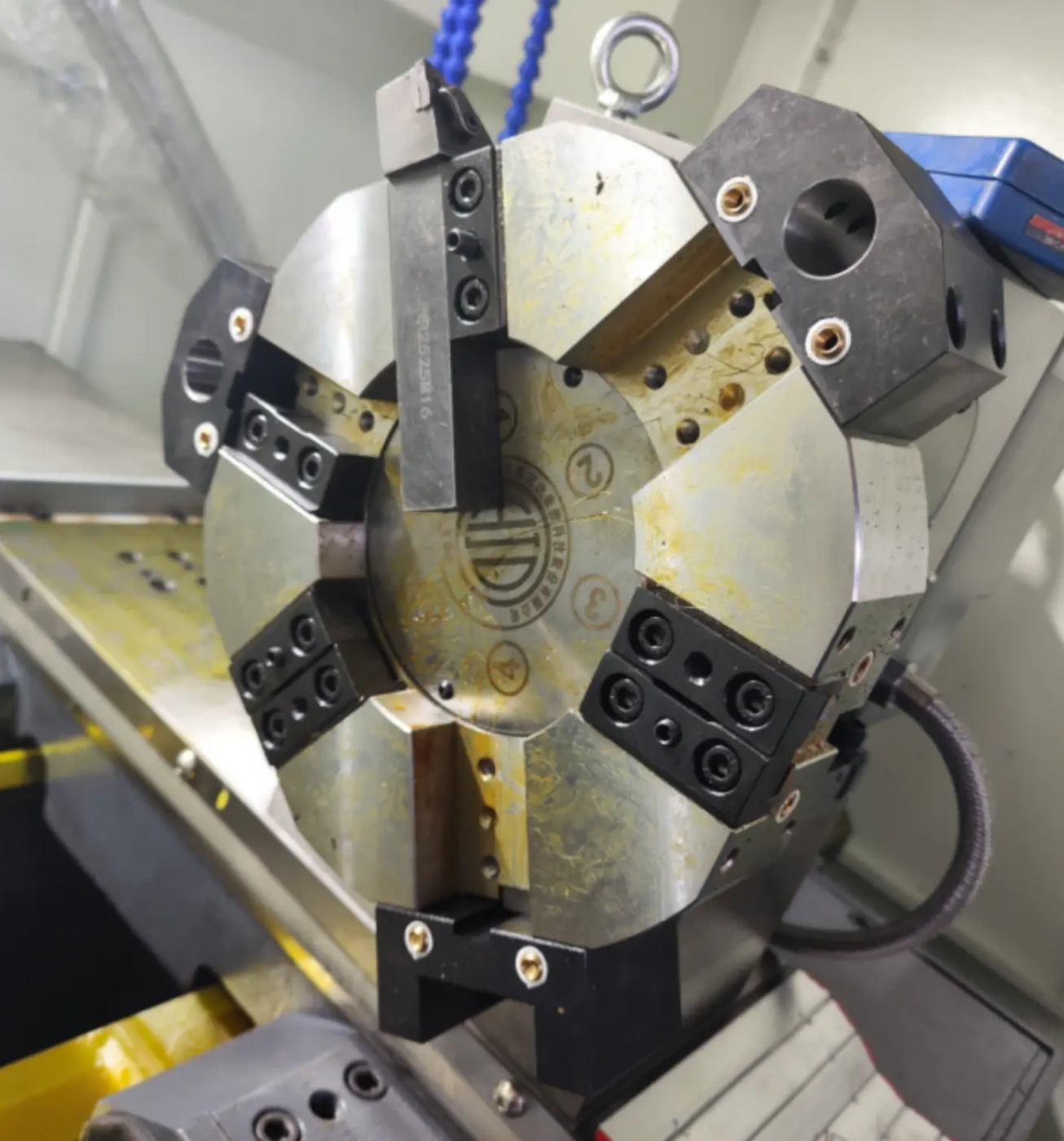

| Tool Turret Type | 4-Station Electric Turret | 4-Station Electric Turret |
| X / Z Axis Rapid Traverse Rate | 4000 / 6000 mm/min | 157 / 236 ipm |
| Tailstock Quill Taper | MT No.5 | MT No.5 |
| Machine Overall Weight | Approx. 2800 kg | Approx. 6170 lbs |
Structural Features & Premium Components
- Integrated One-Piece Cast Iron Bed: Formed using high-grade Meehanite casting, treated with supersonic frequency quenching and precision grinding. The rigid bed structure provides strong support and vibration damping during CNC turning operations.
- High-Precision Spindle Unit: Supported by high-precision angular contact ball bearings, the spindle assembly provides stable rotation, reliable load capability, and consistent machining performance.
- C3-Class Ball Screws & Servo Motors: X/Z axes feature pre-loaded precision ball screws directly coupled to high-torque AC servo motors, helping reduce backlash and maintain positioning accuracy.
- Centralized Automatic Lubrication System: Automatically supplies measured oil to guideways and ball screws to reduce friction and wear and support long-term machine service life.
For general information about machine guarding and safe operation, see the
OSHA Machine Guarding Guide.
Typical Machining Applications
Automotive & Transportation
Suitable for turning drive shafts, axle sleeves, brake drums, hubs, pins, and automotive fittings with repeatable CNC machining performance.
General Machinery
Suitable for machining shafts, discs, sleeves, flanges, bushings, pins, and other mechanical components used in industrial equipment.
Oil & Gas / Fluid Power
Suitable for machining compatible pipe components, hydraulic parts, valve bodies, flanges, and connectors requiring accurate turning operations.
Maintenance & Repair
A practical CNC turning solution for machine shops producing replacement shafts, bushings, sleeves, pins, and customized mechanical components.
Factory Quality Assurance & Technical Support
- Laser Interferometer Calibration: Pitch error compensation and geometric precision tests are conducted using Renishaw laser systems.
- 24-Hour Continuous Running Test: Mandatory dry run and real load trial cutting before packing to verify machine operational stability.
- Direct Manufacturer Warranty: 12-month full machine warranty, fast spare parts replacement, and lifelong online technical assistance.
Related CNC Lathe Machines
Explore our complete
CNC Lathe Machine Product Range
for more CNC turning solutions.
For other flat bed configurations, visit our
CNC Flat Bed Lathe Machines
category.
Need Detailed Quotation or Workpiece Evaluation?
Send us your workpiece technical drawings, dimensions, material, weight, or processing requirements. Our engineering team will provide a tailored machining solution and recommend the appropriate CK6150 configuration.
FAQ
1. Quality Control & Inspection
Q: How do you ensure machine precision before shipment?
A: Every machine undergoes laser interferometer calibration, sample trial cutting, and a 72-hour continuous operation test. Full inspection reports and pre-shipment videos are provided before dispatch.
2. Payment Terms
Q: What are your accepted payment terms?
A: We accept T/T (Telegraphic Transfer). Standard payment terms are a 30% deposit upon order confirmation, with the remaining 70% balance due prior to shipment.
3. Lead Time & Delivery
Q: What is the estimated lead time for delivery?
A: Standard models are shipped within 20 to 30 days after deposit receipt. Customized machines or special configurations take 30 to 60 days depending on specs.
