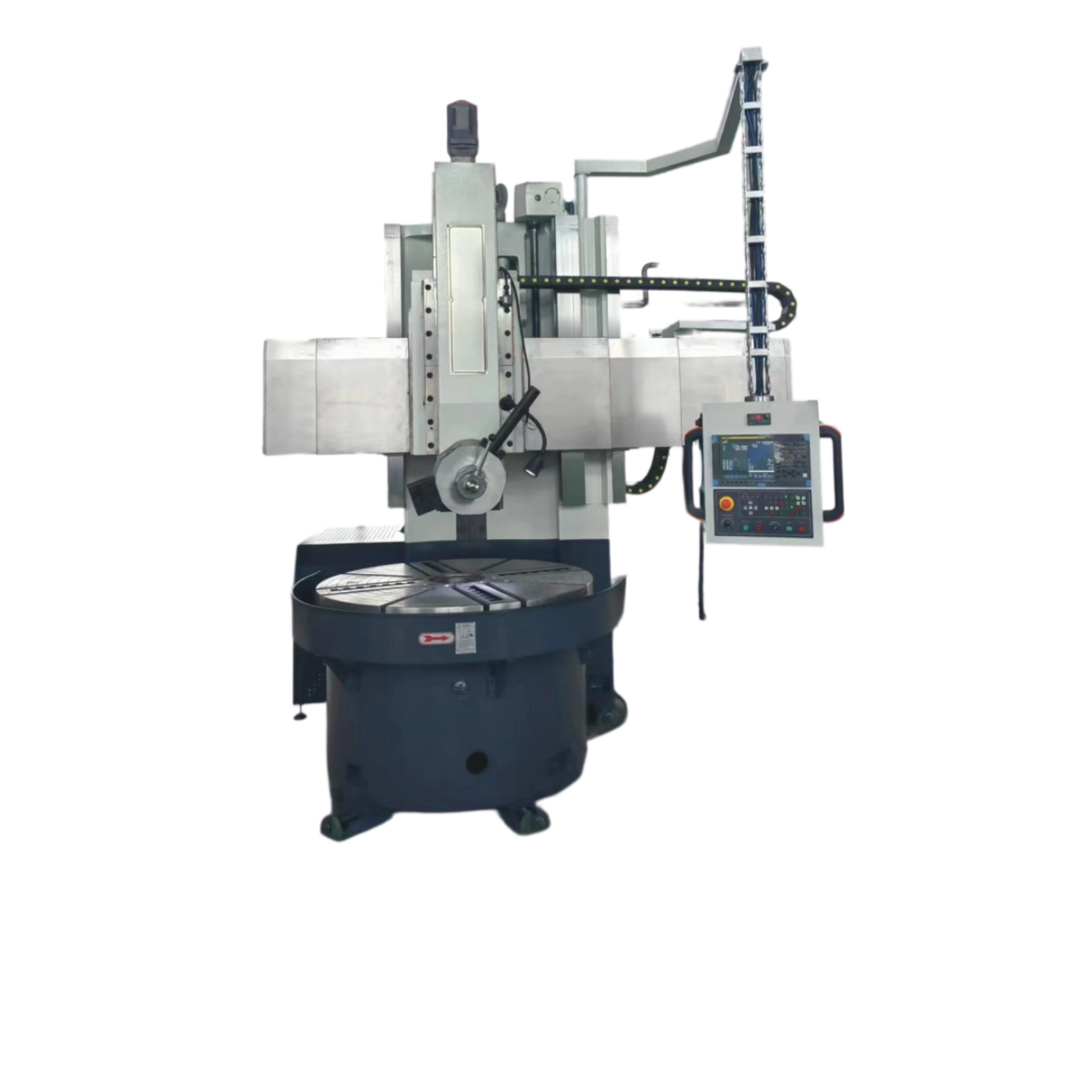

CK5116 CNC Vertical Lathe Machine Overview

The CK5116 CNC Vertical Lathe Machine is a heavy-duty CNC vertical turning machine designed for large and heavy workpieces. With a 1600 mm maximum cutting diameter, 1400 mm worktable diameter, and 5-ton maximum workpiece capacity, the machine provides a large working range for demanding industrial turning applications.

The CK5116 features a FANUC CNC system, a 30 kW main motor, a 1–160 r/min worktable speed range, and stepless tool-holder feed. Its rigid vertical turning configuration provides stable support for large-diameter and heavy-duty machining operations.

• Worktable Flatness:
  0.03 mm within a diameter of 1000 mm. For every additional 1000 mm of diameter, the allowable deviation increases by 0.01 mm. The surface may be flat or concave.
• Worktable Radial Runout:
  0.03 mm within a diameter of 1000 mm. The allowable deviation increases by 0.02 mm for every additional 1000 mm of diameter.
• Worktable End Face Runout:
  0.03 mm within a diameter of 1000 mm. The allowable deviation increases by 0.02 mm for every additional 1000 mm of diameter.
• Crossbeam Vertical Movement Parallelism:
  0.04 mm per 1000 mm in the plane perpendicular to the crossbeam and 0.025 mm per 1000 mm in the plane parallel to the crossbeam.
• Tool Holder Vertical Movement Parallelism:
  0.02 mm per 1000 mm measuring length.
• Vertical Tool Holder Slider Parallelism:
  0.04 mm per 1000 mm in the plane perpendicular to the crossbeam and 0.02 mm per 1000 mm in the plane parallel to the crossbeam.
• CNC Vertical Tool Holder Positioning Accuracy:
  0.02 mm per 1000 mm.
• CNC Vertical Tool Holder Repetitive Positioning Accuracy:
  0.01 mm per 1000 mm.

• Large 1600 mm Cutting Diameter:
  The CK5116 provides a maximum cutting diameter of 1600 mm for large-diameter turning applications.
• 1400 mm Worktable:
  The large worktable provides a substantial working platform for large and heavy workpieces.
• 5-Ton Workpiece Capacity:
  The machine supports workpieces weighing up to 5 tons according to the specified configuration.
• 30 kW Main Motor:
  The high-power main motor provides the required power for demanding industrial turning operations.
• 25 kN·m Worktable Torque:
  The high maximum worktable torque supports machining requirements involving large and heavy workpieces.
• FANUC CNC System:
  The FANUC CNC system provides X and Z two-axis continuous CNC control.
• Large Ram Travel:
  The 700 mm horizontal ram stroke and 800 mm vertical ram stroke provide flexible tool positioning.
• 1050 mm Beam Stroke:
  The beam stroke provides additional positioning range for large workpieces.
• Stepless Tool Holder Feed:
  The tool holder provides a feed rate range of 0.1–500 mm/min for flexible machining control.
• High Positioning Accuracy:
  The CNC vertical tool holder provides positioning accuracy of 0.02 mm/1000 mm and repetitive positioning accuracy of 0.01 mm/1000 mm.

• Machine Accuracy Inspection:
  The machine can be inspected for worktable flatness, radial runout, end face runout, parallelism and CNC tool-holder positioning accuracy according to the specified requirements.
• Machining Accuracy Inspection:
  The specified inspection includes roundness, cylindricity, processed workpiece flatness, surface roughness and processing accuracy grade.
• FANUC CNC Configuration:
  The CK5116 is equipped with a FANUC CNC system for X and Z two-axis continuous control.
• Technical Support:
  Technical assistance is available for machine configuration, operation, tooling and application requirements.
• Application Support:
  ZCIT can recommend a suitable machine configuration according to workpiece diameter, height, weight, material and machining requirements.
• Pre-Shipment Inspection:
  Machine inspection and testing can be arranged according to the specified machine configuration and customer requirements before shipment.

Need a Heavy-Duty CNC Vertical Lathe?

Send us your workpiece diameter, height, weight, material and machining requirements.
ZCIT can recommend a suitable CK5116 CNC vertical lathe machine configuration for your application.
