Vertical Machining Center | 1300×700×700 Travel, BT40, 24T ATC VMC1370
Vertical Machining Center | 1300×700×700 Travel, BT40, 24T ATC VMC1370
VMC1370 vertical machining center with 1300×700×700 mm travel, BT40 spindle, 8000 rpm, 24-tool ATC and FANUC CNC system.
Product Specifications
- Table size: 1400×700mm
- Max. table load: 1000kg
- X axis travel: 1300mm
- Y axis travel: 700mm
- Z axis travel: 700mm
- 4 axis 5 axis: available
Product Overview & Highlights
The VMC1370 vertical machining center is a high-performance 3-axis CNC machining center designed for precision milling, drilling, boring, tapping, and general metal machining applications. With 1300 mm X-axis travel, 700 mm Y-axis travel, and 700 mm Z-axis travel, it provides a large machining envelope for medium and large workpieces and multi-operation production.
The VMC1370 is equipped with a 1400 × 700 mm worktable supporting a maximum load of 1200 kg, a BT40 spindle, and a standard 24-tool automatic tool changer. The spindle reaches up to 8000 rpm and is equipped with a 15–18.5 kW spindle motor.
The machine features three linear guideways, automatic lubrication, three-axis screw pre-tensioning, rigid tapping, and a FANUC CNC control system. With 24 m/min X-axis and Y-axis rapid traverse rates and an 18 m/min Z-axis rapid traverse rate, the VMC1370 is configured for stable and efficient CNC machining.
Technical Specifications
| Model | VMC1370 |
| X/Y/Z Axis Travel | 1300 / 700 / 700 mm |
| Distance from Spindle Nose to Worktable Surface | 87–787 mm |
| Distance from Spindle Center to Column Guideway Surface | 785 mm |
| Spindle Speed | 8000 rpm |
| Spindle Taper | BT40 |
| Tool Holder Specification | BT40 |
| Spindle Motor Power | 15–18.5 kW |
| Tool Magazine Capacity | 24 tools |
| X/Y/Z Axis Torque | 28 × 28 × 28 N·m |
| Worktable (Length × Width) | 1400 × 700 mm |
| Max. Worktable Load Capacity | 1200 kg |
| X-Axis Rapid Traverse Rate | 24 m/min |
| Y-Axis Rapid Traverse Rate | 24 m/min |
| Z-Axis Rapid Traverse Rate | 18 m/min |
| CNC Controller | FANUC |
| Machine Weight (Approx.) | 10,000 kg |
| Overall Dimensions (L × W × H) | 3700 × 2900 × 3300 mm |

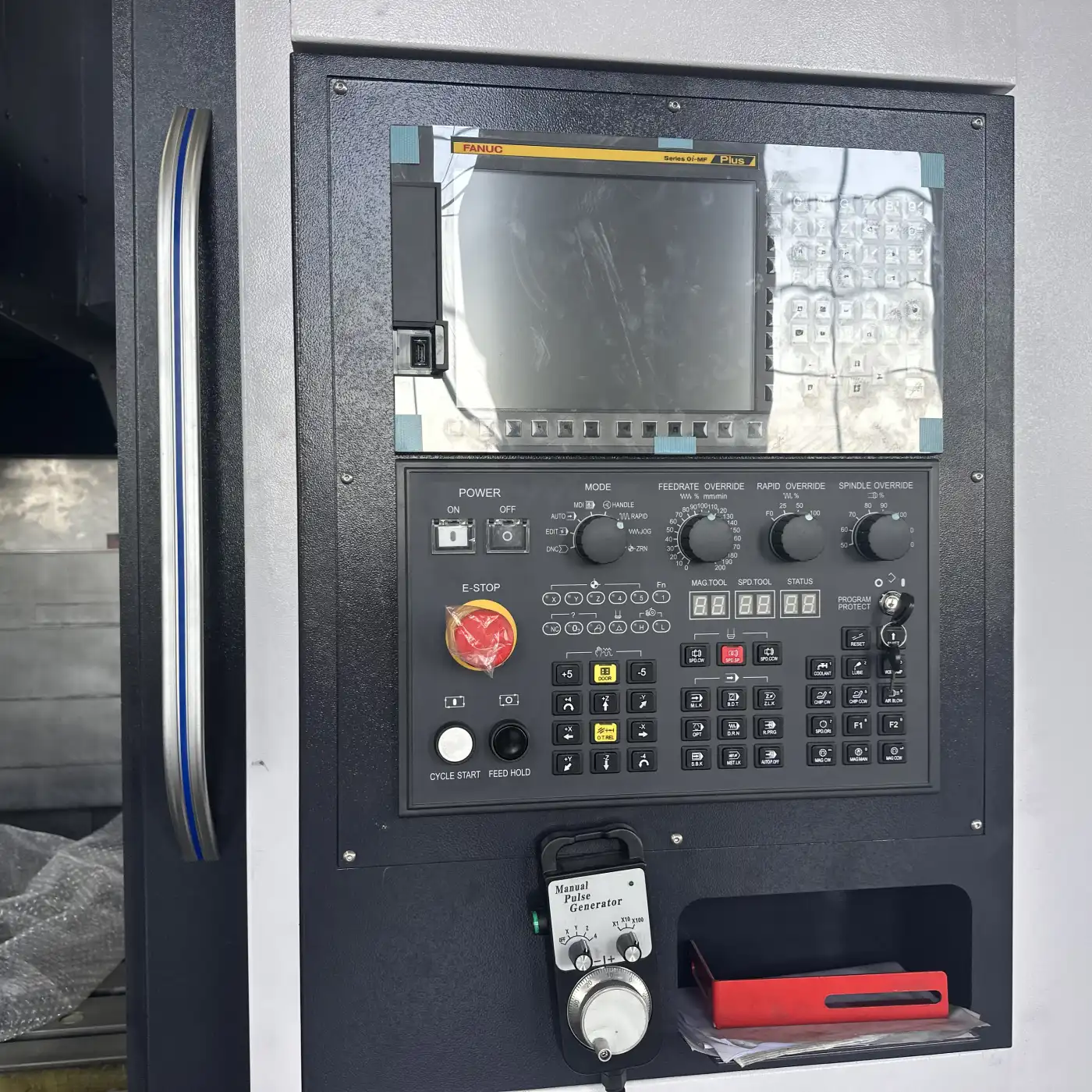

CNC Control System
The VMC1370 vertical machining center is equipped with a FANUC CNC control system for coordinated 3-axis machining operations. The FANUC configuration supports milling, drilling, boring, tapping, and other CNC machining processes while providing reliable control for industrial production.
Structural Features & Machining Functions
- 1300 × 700 × 700 mm X/Y/Z-axis travel provides a large machining envelope for medium and large workpieces.
- 1400 × 700 mm worktable supports workpieces up to 1200 kg, providing substantial loading capacity for industrial CNC machining.

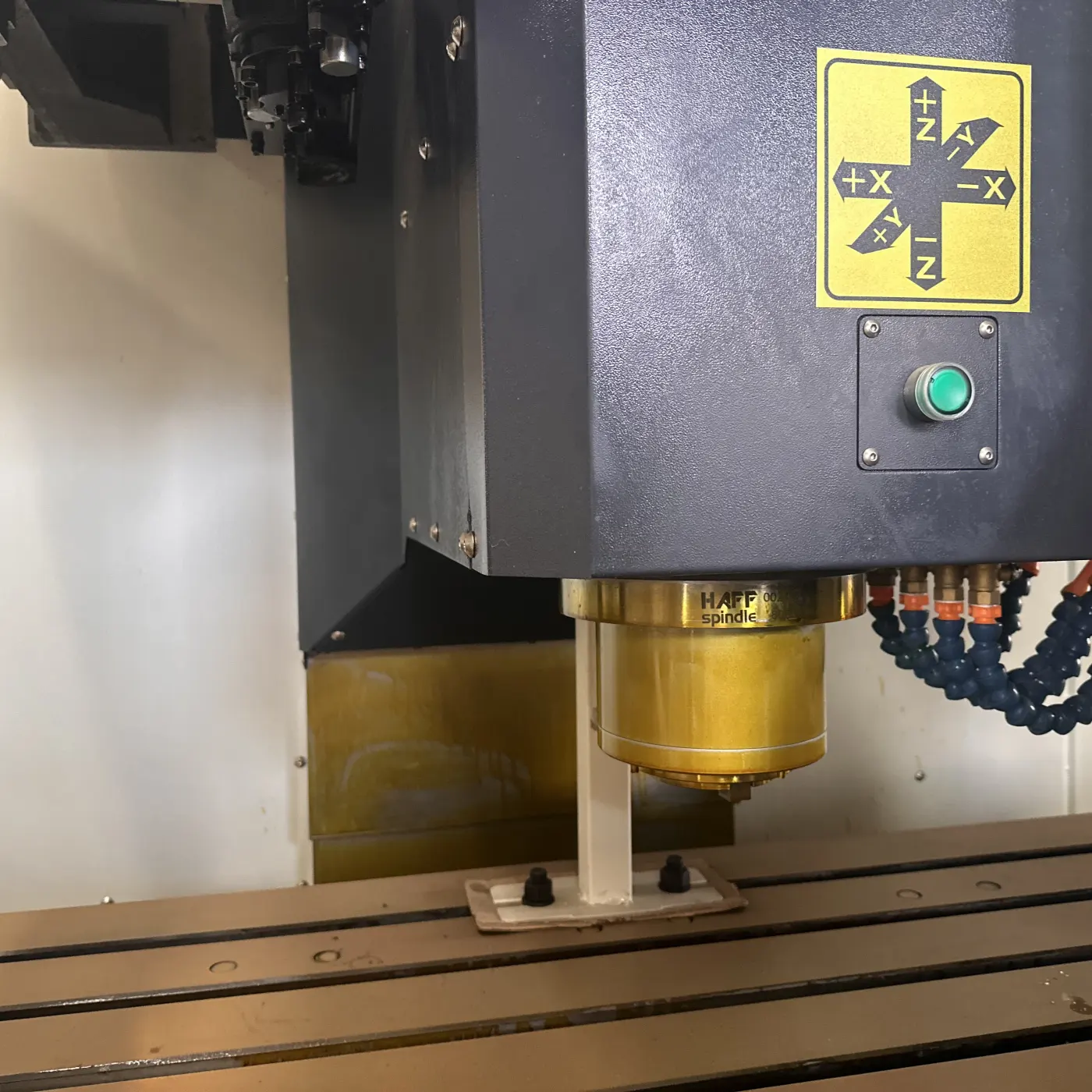

- BT40 spindle provides a widely used tool interface for milling, drilling, boring, tapping, and general machining applications.
- 8000 rpm maximum spindle speed supports efficient machining across a wide range of metal components.
- 15–18.5 kW spindle motor provides substantial power for different machining requirements.
- Three linear guideways provide stable and rigid movement along the X, Y, and Z machining axes.
- 24 m/min X/Y rapid traverse and 18 m/min Z rapid traverse help reduce positioning and non-cutting time during machining cycles.
- 24-tool automatic tool changer supports automatic tool changes for multi-operation machining.
- 28 × 28 × 28 N·m X/Y/Z axis torque provides coordinated drive performance for the three machining axes.
- Automatic lubrication system provides scheduled lubrication for critical moving components.
- Three-axis screw pre-tensioning device helps improve ball screw stability and machining performance.
- Rigid tapping function supports accurate internal thread machining during CNC operations.
- Cutting cooling and blowing devices assist with chip removal and machining area cooling.
Typical Machining Applications
Precision Component Machining
Suitable for machining industrial components requiring stable positioning, repeatable machining, and multiple CNC operations.

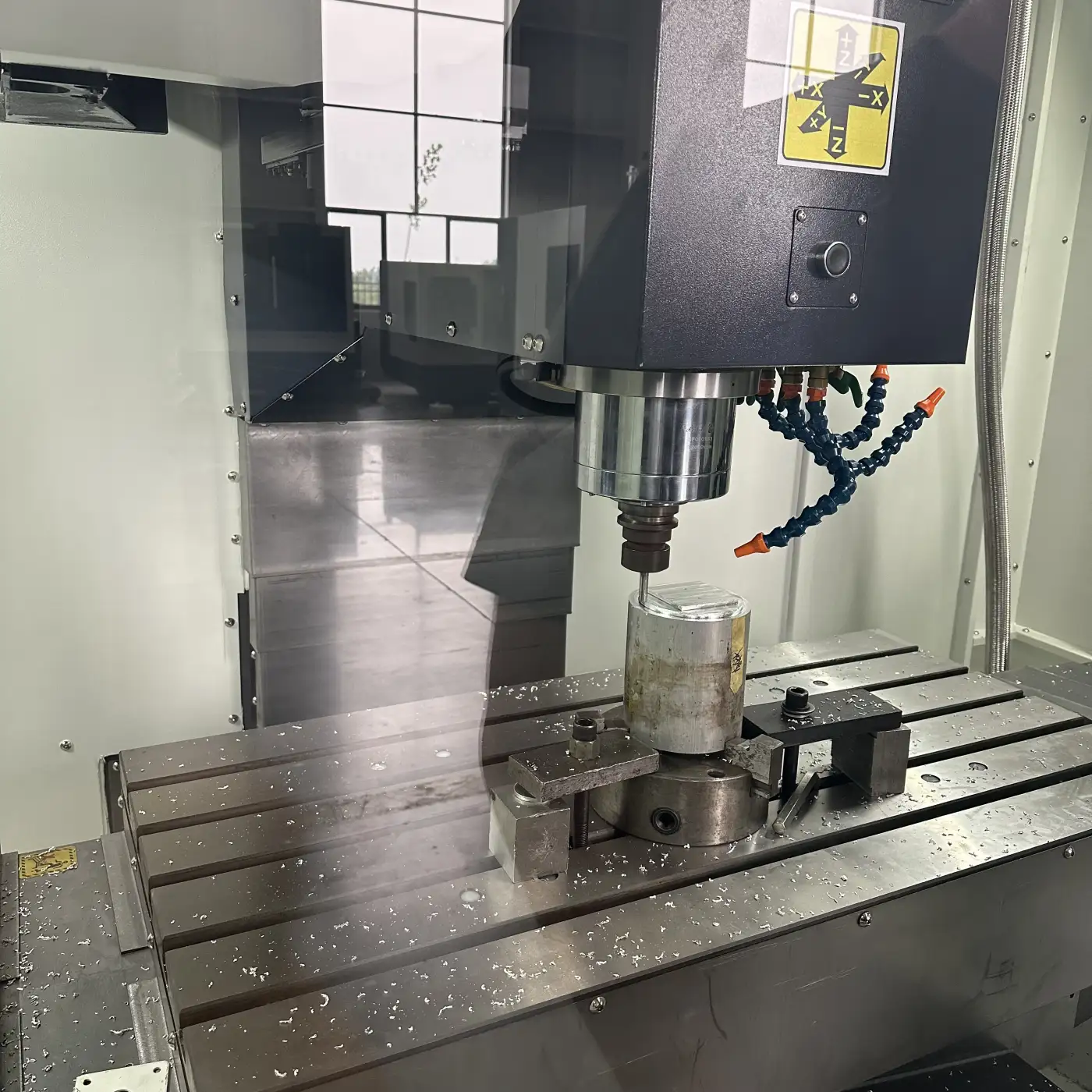

Milling & Drilling
The BT40 spindle and large machining envelope support face milling, end milling, drilling, boring, tapping, and related operations.
Automotive & Machinery Parts
Suitable for machining housings, brackets, plates, fixtures, machine components, and other industrial parts.
Batch Production
The 24-tool automatic tool changer supports multi-operation machining and efficient production of complex components.
Standard Equipment, Quality Assurance & Technical Support
Standard equipment includes:
- FANUC CNC system
- Three linear guideways
- Belt spindle, 8000 rpm, BT40 spindle (Taiwan)
- 24T ATC (Taiwan)
- Cutting cooling system
- Automatic lubrication system
- Cutting and blowing device
- Explosion-proof work light
- Tri-color warning light
- Horizontal adjustment bolts and pads
- Electrical box radiator
- Three-axis screw pre-tensioning device (Taiwan)
- Program storage
- RS232 interface
- Air gun for internal machine cleaning
- Manual pulse generator / handwheel
- Transformer
- Three-axis telescopic protective covers
- External protective sheet metal
- Rigid tapping
- Certificate of Accuracy Inspection Qualification
- Electrical Manual
- User Manual
- Program Operation Manual
ZCIT provides technical support and pre-shipment quality control for vertical machining centers. For CNC system selection, machine configuration, tooling, production lead time, shipping, and technical requirements, contact ZCIT for a suitable vertical machining center solution.
Related CNC Machining Centers
Explore more CNC machining centers from ZCIT, or compare the VMC1370 with other vertical machining center configurations.
- VMC855 Vertical Machining Center – compact 3-axis CNC machining center with BT40 spindle and 24-tool ATC.
- VMC1160 Vertical Machining Center – 1100 × 600 × 600 mm travel with BT40 spindle and 24-tool ATC.
- ZCIT CNC Machining Centers – explore additional vertical machining center configurations for different workpiece sizes and production requirements.
Looking for a Powerful Vertical Machining Center?
The ZCIT VMC1370 combines 1300 × 700 × 700 mm axis travel, a 1200 kg table load, BT40 spindle, 8000 rpm maximum speed, 24-tool ATC, and FANUC CNC control for efficient industrial metal machining.
FAQ
1. Quality Control & Inspection
Q: How do you ensure machine precision before shipment?
A: Every machine undergoes laser interferometer calibration, sample trial cutting, and a 72-hour continuous operation test. Full inspection reports and pre-shipment videos are provided before dispatch.
2. Payment Terms
Q: What are your accepted payment terms?
A: We accept T/T (Telegraphic Transfer). Standard payment terms are a 30% deposit upon order confirmation, with the remaining 70% balance due prior to shipment.
3. Lead Time & Delivery
Q: What is the estimated lead time for delivery?
A: Standard models are shipped within 20 to 30 days after deposit receipt. Customized machines or special configurations take 30 to 60 days depending on specs.
