Introduce

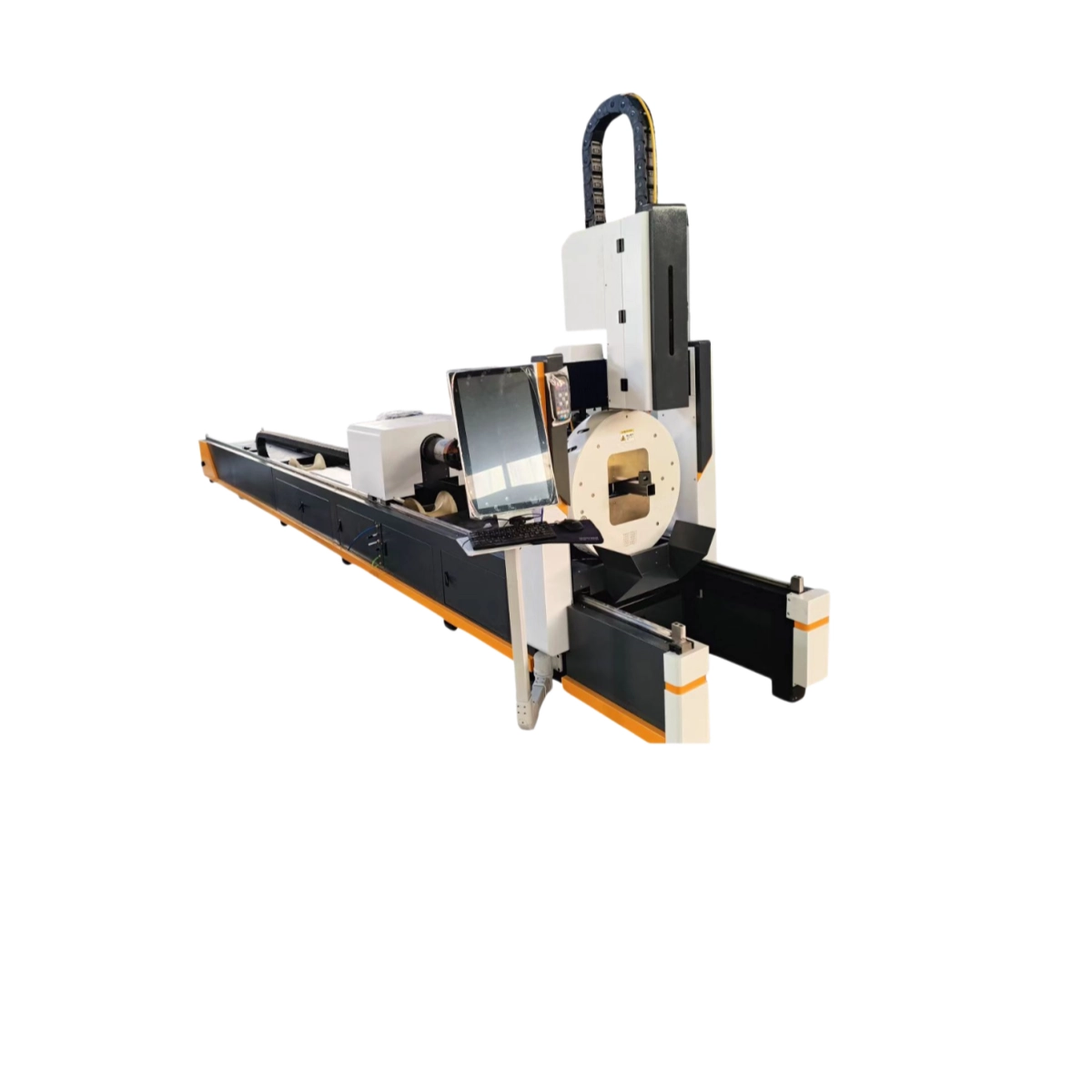

The LT60240 CNC Laser Cutting Machine for Tube is a high-precision laser cutting system specially designed for metal pipes and structural tubes. It is mainly used for cutting carbon steel pipes, stainless steel pipes, aluminum alloy pipes, and copper pipes.
This machine supports round pipe diameters from Φ20mm to Φ240mm, and processes square tubes, angle steel, and channel steel with side lengths up to 240mm. The maximum tube length is 6000mm (6 meters), making it ideal for industrial tube processing and structural fabrication.
With advanced CNC control and precise clamping technology, the LT60240 ensures stable cutting performance, smooth edges, and high production efficiency.
The main components of series optical fiber pipe cutting machine are: machine engine, control system, laser, chiller, etc.
Condition
Specification
| NO. | project name | parameter | unit |
| 1 | Pipe processing size | circular tube Φ20mm-φ240mm， Steel side length of square tube angle steel groove≤240mm，L≤6000mm； | mm |
| 2 | X axis itinerary | 300 | mm |
| 3 | Y axis itinerary | 6300 | mm |
| 4 | Z axis itinerary | 120 | mm |
| 5 | X, Y-axis positioning accuracy | ±0.05/1000mm | mm |
| 6 | X and Y axes | ±0.03/1000mm | mm |
| 7 | Tailor length | ≤30With the guaranteed cutting accuracy, the minimum tail length cannot be guaranteed | mm |
| 8 | laser power | The MAX3000 | w |
| 9 | control system | EOE | |
| 10 | Power supply requirements | 380V/50Hz | V |
Sample
