CNC Plasma Cutting Machine | 1500×3000mm 120A Metal Plate Cutter for Steel Sheet PC1530
CNC Plasma Cutting Machine | 1500×3000mm 120A Metal Plate Cutter for Steel Sheet PC1530
Powerful CNC plasma cutting machine with a 1500×3000mm working area, 120A plasma power supply, and up to 25mm carbon steel cutting capacity. The PC1530 features automatic torch height control, STARfire CNC control, and stable stepper motor drive for efficient metal plate fabrication.
Product Specifications
- X,Y working area: 1500*3000mm
- Z working area: 150mm
- Machine Power: 8.5kw
- Cutting thickness: Max25mm carbon steel
- Plasma power supply: 120A Plasma source
- Origin: CHINA
Product Overview
The PC1530 CNC Plasma Cutting Machine is a powerful and economical CNC plasma cutting machine designed for efficient metal plate processing. With a 1500 × 3000 mm working area, 120A plasma power supply, automatic torch height control, and stable CNC motion system, it provides a practical solution for cutting carbon steel, stainless steel, aluminum, copper, and galvanized steel.
1500 × 3000 mm
120A
25 mm Carbon Steel
12,000 mm/min
Technical Specifications
| Specification Item | Specification |
|---|---|
| Machine Model | PC1530 120A CNC Plasma Cutting Machine |
| X / Y Working Area | 1500 × 3000 mm |
| Z Working Area | 150 mm |
| Machine Power | 8.5 kW |
| Maximum Cutting Thickness | Up to 25 mm Carbon Steel |
| Plasma Power Supply | 120A Plasma Source |
| Machine Bed | Very Thick Steel Structure |
| Working Voltage | 380V, Three Phase, 60Hz |
| Repositioning Precision | 0.02 mm |
| Processing Precision | 0.1 mm |
| Maximum Cutting Speed | 12,000 mm/min |
| Torch Height Control | Automatic |
| CNC Control System | STARfire |
| Motors | Stepper Motors |
| Cutting Software | Starcam |
| Machine Weight | Approx. 1400 kg |
| Plasma Air Pressure | Maximum 0.8 MPa |
| Working Temperature | -10°C to 60°C |
| Relative Humidity | 0–95% |
| LCD Display | 7 Inches |
| Optional Plasma Power | 63A / 120A / 160A / 200A |
| Packing Dimension | 2280 × 3950 × 1850 mm |
Structural Features & CNC Components
- Heavy Steel Machine Bed: The very thick steel structure provides a stable foundation for CNC plasma cutting and helps maintain machine rigidity during continuous operation.
- Automatic Torch Height Control: The automatic height control system helps maintain a consistent torch-to-plate distance and supports stable cutting quality across the workpiece.
- Stepper Motor Drive: Stepper motors provide controlled gantry movement and stable positioning during programmed CNC plasma cutting operations.
- STARfire CNC Control: The STARfire control system manages programmed cutting movements and machine operation for efficient production.
- Starcam Cutting Software: Starcam software is used to prepare CNC plasma cutting jobs and manage programmed cutting operations.
- 7-Inch LCD Display: The integrated LCD display provides a practical interface for machine operation and parameter monitoring.
Plasma Cutting Capability
120A Standard Plasma Cutting
The standard 120A plasma power supply provides a maximum listed cutting thickness of up to 25 mm carbon steel, making the PC1530 suitable for general and medium-duty steel fabrication.
Multiple Plasma Power Options
Optional 63A, 120A, 160A, and 200A plasma configurations are available to match different material thicknesses and production requirements.
Automatic Height Adjustment
Automatic torch height control helps maintain a consistent cutting distance as the torch moves across the metal plate.
Materials Suitable for Plasma Cutting
Suitable for structural and fabricated steel components.
Suitable for conductive stainless steel sheet and plate applications.
Suitable for CNC plasma cutting of conductive aluminum materials.
Suitable for selected conductive copper cutting applications.
Suitable for galvanized steel fabrication and customized metal parts.
Typical Industrial Applications
Sheet Metal Fabrication
Suitable for brackets, covers, frames, panels, machine components, and customized metal parts.
Steel Structure Manufacturing
Used for structural plates, connection plates, reinforcement components, base plates, and other steel construction parts.
Machinery Manufacturing
Suitable for machine frames, mounting plates, guards, brackets, and components prepared for welding and assembly.
Agricultural Equipment
Useful for agricultural machinery brackets, support plates, frames, covers, and replacement metal components.
HVAC & Equipment Fabrication
Suitable for equipment housings, panels, mounting plates, brackets, and fabricated metal structures.
Factory Quality Assurance & Technical Support
- Precision Inspection: Machine positioning and processing accuracy are checked before shipment.
- Trial Cutting: Sample cutting can be performed to verify machine configuration and cutting performance before delivery.
- Continuous Operation Test: Machines undergo continuous operation testing before shipment to verify operational stability.
- Pre-Shipment Documentation: Inspection information and machine operation videos can be provided before dispatch.
- Technical Support: ZCIT provides installation guidance, operating assistance, and after-sales technical support for international customers.
Explore our complete range of Plasma Cutting Machines for different plate sizes, cutting thicknesses, and production requirements.
For larger plate processing requirements, you can also compare our Gantry CNC Plasma Cutting Machine.
For general workplace machine safety information, refer to the OSHA Machine Guarding guidance.
Need a CNC Plasma Cutting Solution?
Send us your material type, plate dimensions, required cutting thickness, and production requirements. ZCIT can recommend a suitable plasma power configuration for your application.
FAQ
1. Quality Control & Inspection
Q: How do you ensure machine precision before shipment?
A: Every machine undergoes laser interferometer calibration, sample trial cutting, and a 72-hour continuous operation test. Full inspection reports and pre-shipment videos are provided before dispatch.
2. Payment Terms
Q: What are your accepted payment terms?
A: We accept T/T (Telegraphic Transfer). Standard payment terms are a 30% deposit upon order confirmation, with the remaining 70% balance due prior to shipment.
3. Lead Time & Delivery
Q: What is the estimated lead time for delivery?
A: Standard models are shipped within 20 to 30 days after deposit receipt. Customized machines or special configurations take 30 to 60 days depending on specs.
Related products
Related products
Plasma Cutting MachinesGantry CNC Plasma Cutting Machine | 3000x6000mm Powerful Heavy-Duty Metal Cutter | ZCIT
- Plasma Cutting Machines

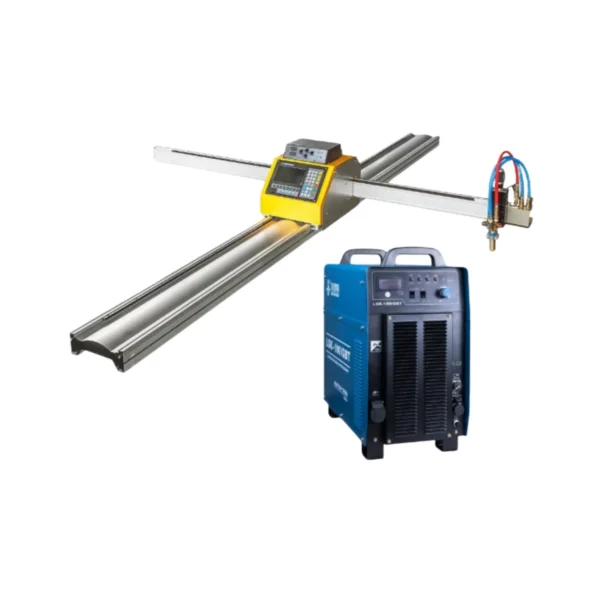

Portable CNC Plasma Cutting Machine | Powerful 200A 1500×3000mm Cutter | ZCIT
